AtlasIEDamplifiers

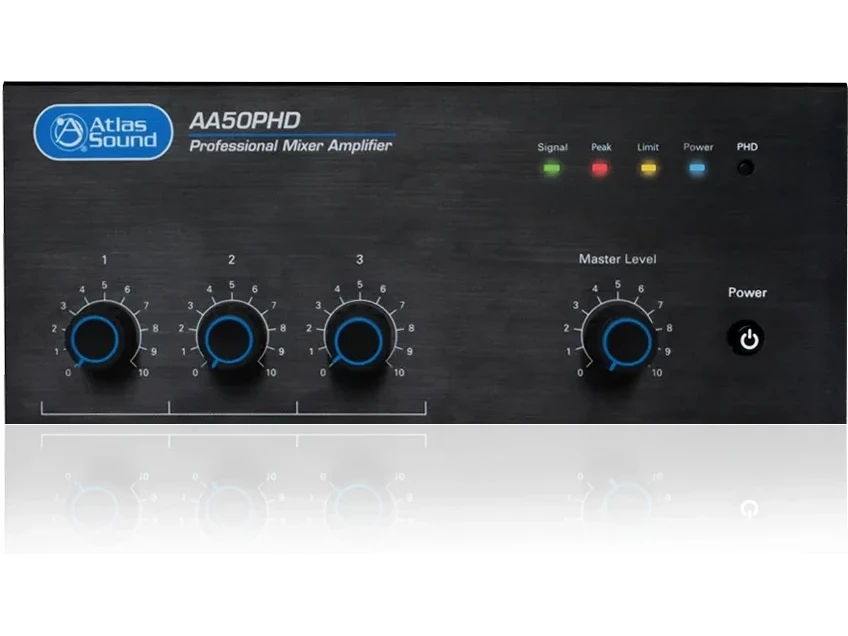

AtlasIED 50W BGM Mixer Amplifier
Equipment Sales & Professional Installation
MPN: AA50PHD
- 50W into 25V/70.7V and 4 ohm loads
- Automated diagnostic system test
- Balanced mic/line/tel input with phantom power
- Summing line level inputs
- Assignable Zone 2 output
- Remote level control
- Contact closure mute terminals
Specifications
Specifications
| Frequency Response | 50Hz - 15kHz |
|---|---|
| Connector Type | 4 Position Phoenix 3.5mm Pitch |
| Power Output | Max. Average Power @ 50Hz-15kHz with .5% THD, 4 ohm 50W RMS |
| Height | 3.66" (93mm) |
| Width | 8.27" (210mm) |
| Depth | 10.87" (276mm) |
| Weight | 10.5ib |
| Shipping Weight | 12.4lb |
| Voltage Compatibility | 110V - 120V |
| Warranty Period | 36 months from date of purchase |
