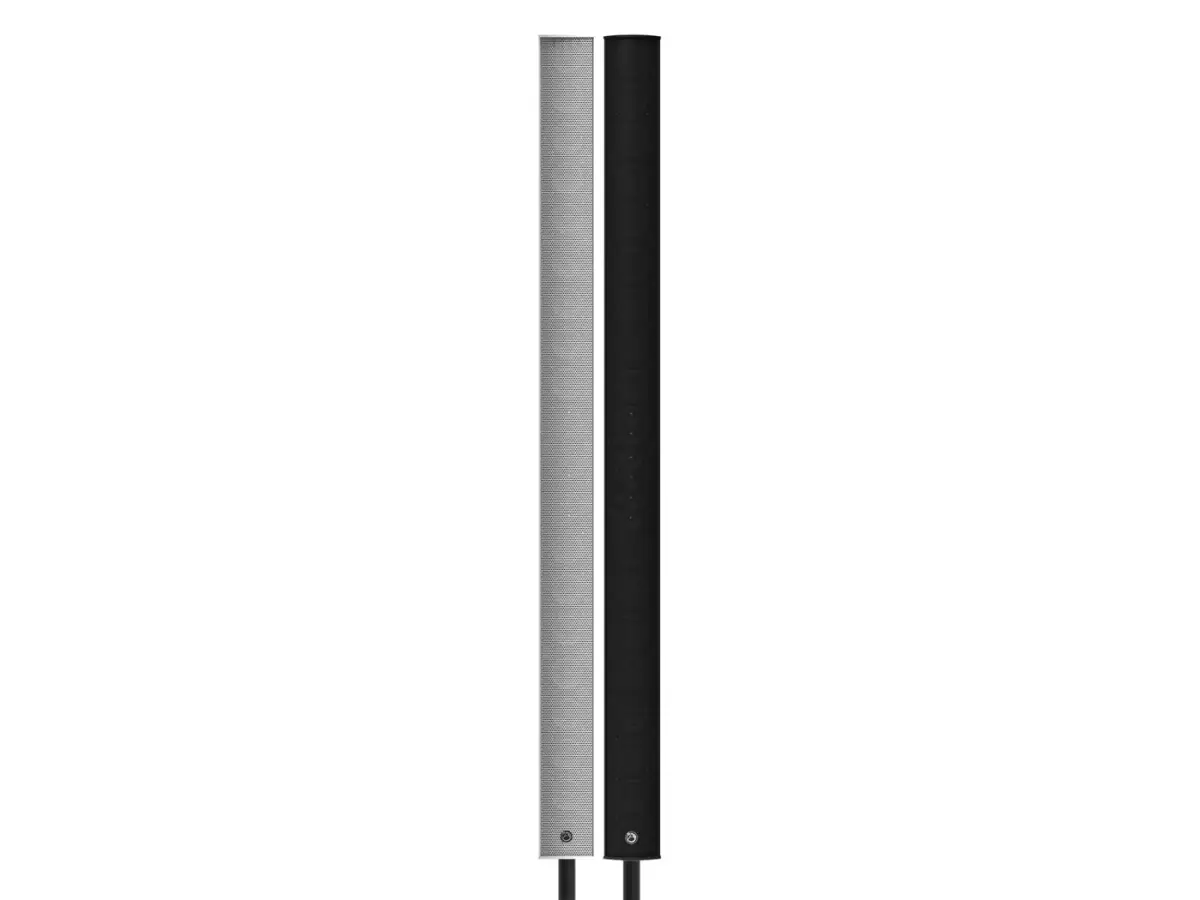

AtlasIED ALA20TAW-B
Equipment Sales & Professional Installation
MPN: ALA20TAW-B
- 20-driver EN54-24 line array speaker
- 1000W RMS at 6 ohm
- 70V/100V transformer taps
- 135° x 40° dispersion
- EN54-24 life-safety certified
- 97dB sensitivity
- 5-year warranty
Specifications
Specifications
| 6 ohm RMS Power | 1000 Watts |
|---|---|
| 70.7V Power Taps | 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6 ohm) |
| 100V Power Taps | 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6 ohm) |
| Dispersion | 135 deg H & 40 deg V |
| Sensitivity | 97dB (1W/1m) |
| Sensitivity (EN54-24) | 82dB (1W/4m) |
| Frequency Response | 110Hz - 20kHz (+/-5dB) |
| Height | 65.75" (1670mm) |
| Depth | 5.43" (137.9mm) |
| Width | 4.61" (117mm) |
| Warranty Period | 60 months from date of purchase |
