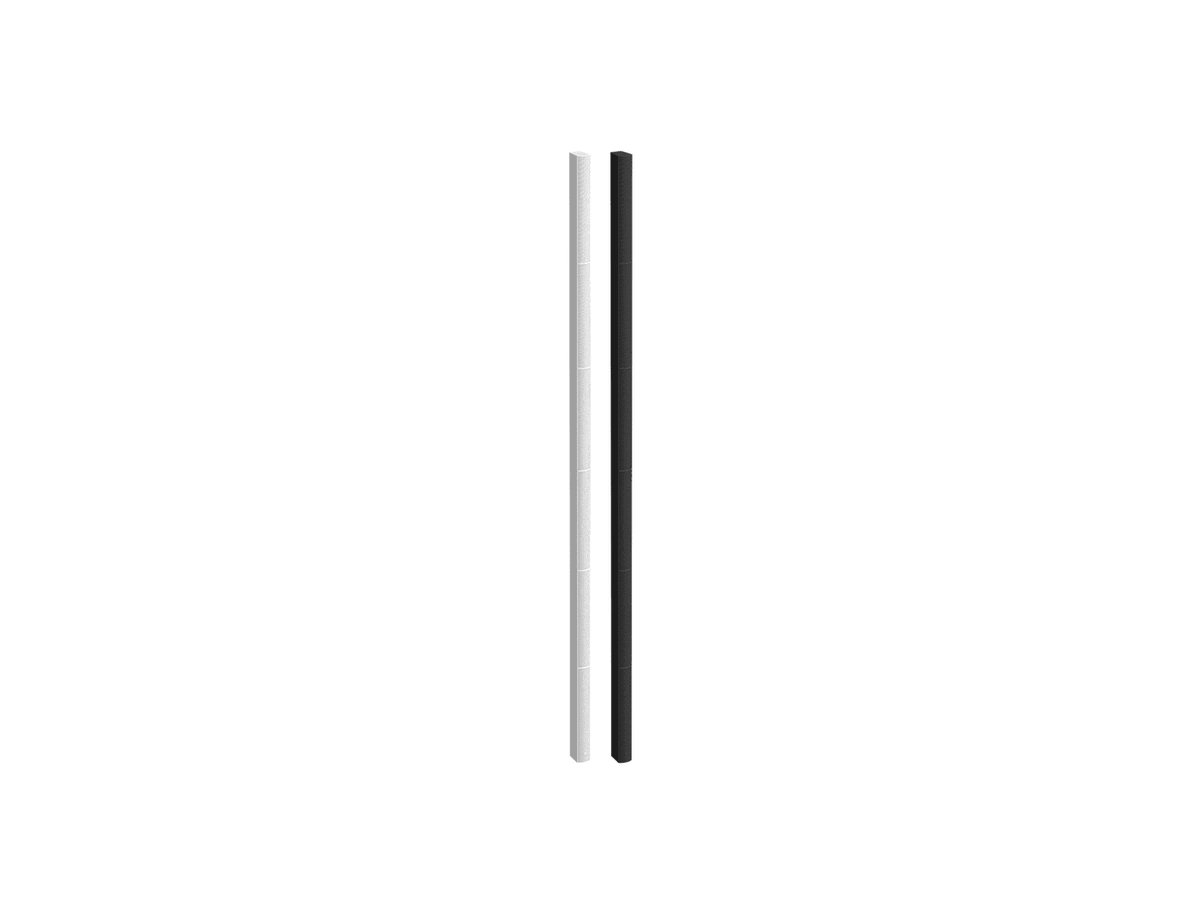

AtlasIED ALX-48D-B
Equipment Sales & Professional Installation
MPN: ALX-48D-B
- 48-speaker beam-steering column array
- Dante / AES67 audio inputs
- Per-speaker class-D DSP amplification
- Digitally steerable vertical beam
- 325 ft typical throw
- 113dB SPL at 30m
- 5-year warranty
Specifications
Specifications
| Frequency Response (-3dB) | 100Hz - 18kHz, 113dB @ 30m |
|---|---|
| Audio Inputs | 2 x Dante / AES67 / 2 x analog line / 2 x AES / EBU |
| Sensitivity | 15dBu RMS for rated output, analog |
| Low Frequency Beam Control Limit | 90Hz |
| Amplifier | 48 x PWM class-D 48 x DSP Channels |
| Transducers | 48 x 4" Neodymium, full range. Coated NRSC fiberglass membrane |
| Beam Steering | Multi beam |
| Typical Throw | 325ft / 100m |
| Horizontal Dispersion | 120 deg (- 6dB @ 1kHz - 8kHz) |
| Vertical Opening Angle | 5 deg - 40 deg (digitally variable) |
| Vertical Steering | +40 deg to -40 deg (digitally variable) |
| Weight | 132 lbs (60kg) |
| Dimensions (HxWxD) | 191.8" x 4.7" x 6.6" (4872 x 149 x 167mm) |
| Power Supply | 94 - 264V |
| Warranty Period | 60 months from date of purchase |
