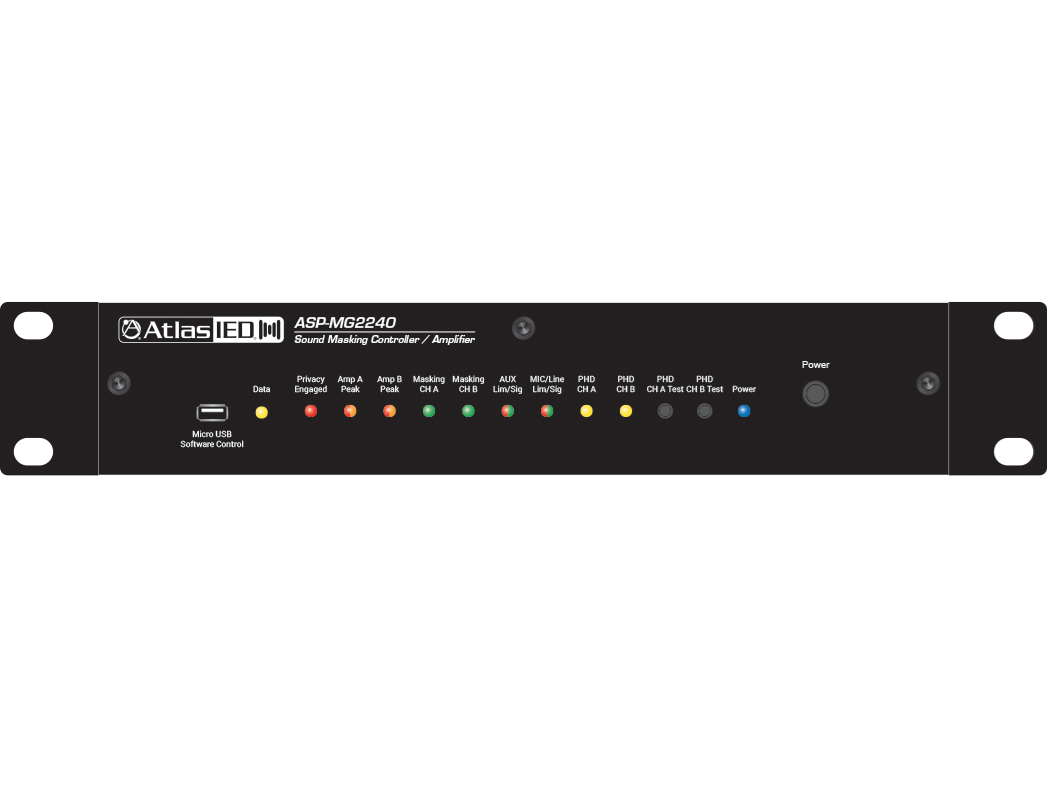

AtlasIED ASP-MG2240
Equipment Sales & Professional Installation
MPN: ASP-MG2240
- Amplified masking controller, 2 zones
- 2 x 30W distributed audio outputs
- Analog white and pink noise generators
- Speech-enhanced privacy mode
- Mic/line paging and aux BGM inputs
- Push-here diagnostic test
- PC software control
Specifications
Specifications
| Output Power | 30-watts x 2 @ 70.7V |
|---|---|
| Input Type | Mic/Line Euro Block and 3.5mm Auxiliary |
| Power Input | 24V DC, 2.5A, 2 Position, Euro Block |
| Line Out: Output Impedance | 150 ohm |
| Maximum Output Level | 2V |
| Signal to Noise Ratio | >90dB Below Rated Output (A-Weighted) |
| Power Consumption | 72mA (Idle) |
| Power Consumption | 275mA (Average Power, All Channels Driven) |
| Power Consumption | 908mA (Max Power, All Channels Driven) |
| Operating Voltage | External Supply 110V-230V, 50/60Hz |
| Rack Units | 1 |
| Width | 10.5" (266mm) |
| Height | 1.75" (44mm) |
| Depth | 11.25" (286mm) |
| Shipping Weight | 6 lbs (2.73 kgs) |
| Warranty Period | 36 months from date of purchase |
