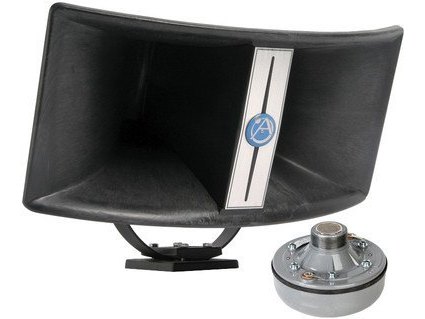

AtlasIED ATPK-BIA100PD5VH
Equipment Sales & Professional Installation
MPN: ATPK-BIA100PD5VH
- Bi-axial reflex horn with twin air columns
- 130° x 60° wide-angle coverage
- PD-5VH 40W compression driver
- 350Hz–8kHz nominal frequency response
- Weather-resistant matte black finish
- Patented 180° gimbal mount
- 5-year warranty
Specifications
Horn
| Type | Bi-axial reflex horn with twin air columns |
|---|---|
| Nominal Frequency Response | 350–8,000 Hz |
| Height | 10 1/4" (26.0 cm) |
| Width | 21" (53.3 cm) |
| Depth | 19 1/4" (48.9 cm) |
| Shipping Weight | 16.0 lbs (7.3 kg) |
Compression Driver
| Model | PD-5VH |
|---|---|
| Power Rating | 40 W |
| Voice Coil | 2" |
| Magnet | Alnico V-DG |
| Impedance | 16 ohms |
| Frequency Response | 110 Hz – 4.1 kHz |
| Sensitivity | 110.7 dB avg (110–4,100 Hz) |
| Height | 5 1/8" (13.0 cm) |
| Width | 4 3/8" (11.1 cm) |
| Shipping Weight | 5.0 lbs (2.3 kg) |
Warranty
| Warranty Period | 60 months from date of purchase |
|---|
