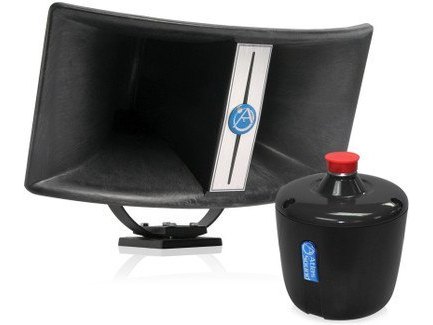

AtlasIED ATPK-BIA100PD75T
Equipment Sales & Professional Installation
MPN: ATPK-BIA100PD75T
- Bi-axial reflex horn with twin air columns
- 130° x 60° wide-angle coverage
- PD75T 75W compression driver with 70V transformer
- 350Hz–8kHz nominal frequency response
- Weather-resistant matte black finish
- Patented 180° gimbal mount
- 5-year warranty
Specifications
Horn
| Type | Bi-axial reflex horn with twin air columns |
|---|---|
| Nominal Frequency Response | 350–8,000 Hz |
| Height | 10 1/4" (26.0 cm) |
| Width | 21" (53.3 cm) |
| Depth | 19 1/4" (48.9 cm) |
| Shipping Weight | 16.0 lbs (7.3 kg) |
Compression Driver
| Model | PD75T |
|---|---|
| Power Rating | 75 W |
| Frequency Response | 100 Hz – 3.7 kHz |
| Sensitivity | 116 dB avg (300–3,700 Hz) |
| Transformer Taps | 2.36, 4.7, 9.4, 19, 38, 75 W |
| Certifications | UL1480A |
| Height | 7 1/8" (18.1 cm) |
| Diameter | 6 3/16" (15.7 cm) |
| Weight | 8.2 lbs (3.7 kg) |
Warranty
| Warranty Period | 60 months from date of purchase |
|---|
