AtlasIEDdsp-mixers

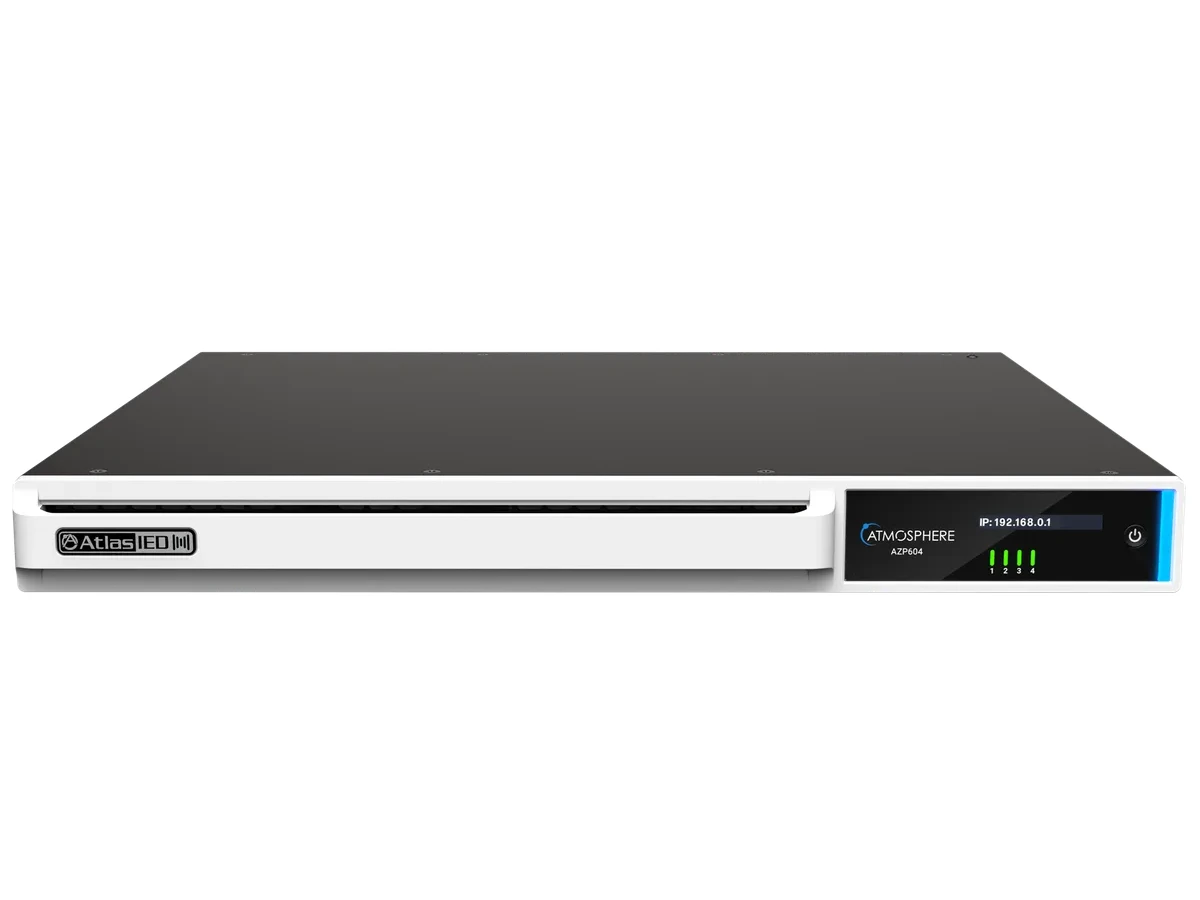

AtlasIED AZP604
Equipment Sales & Professional Installation
MPN: AZP604
- Network controlled with web interface
- Advanced DSP with speaker tunings
- High-performance amplification with long-term power rating
- User-defined power sharing in 5W increments
- Direct drive 70/100V and 4/8 ohm, 2 ohm stable
- Dual/redundant network ports with PoE
- Third-party control API
Specifications
Specifications
| Number of Output Channel | 4 |
|---|---|
| Total Output Power | 600W |
| Average Output Power per Channel | 150W |
| Max Output Power per Channel | 600W |
| Network | Two ports, software configurable network modes (Switch, Separate, Redundant) |
| Interface | Web GUI |
| Remote Monitoring | Compatible with Atmosphere Cloud |
| Analog Input | 4, balanced |
| Voltage Compatibility | 100 - 240VAC, 50/60Hz |
| Dimensions | 19.0 x 15.1 x 1.7in (482 x 384 x 43mm) |
| Weight | 13.54 lbs (6.14 kg) |
