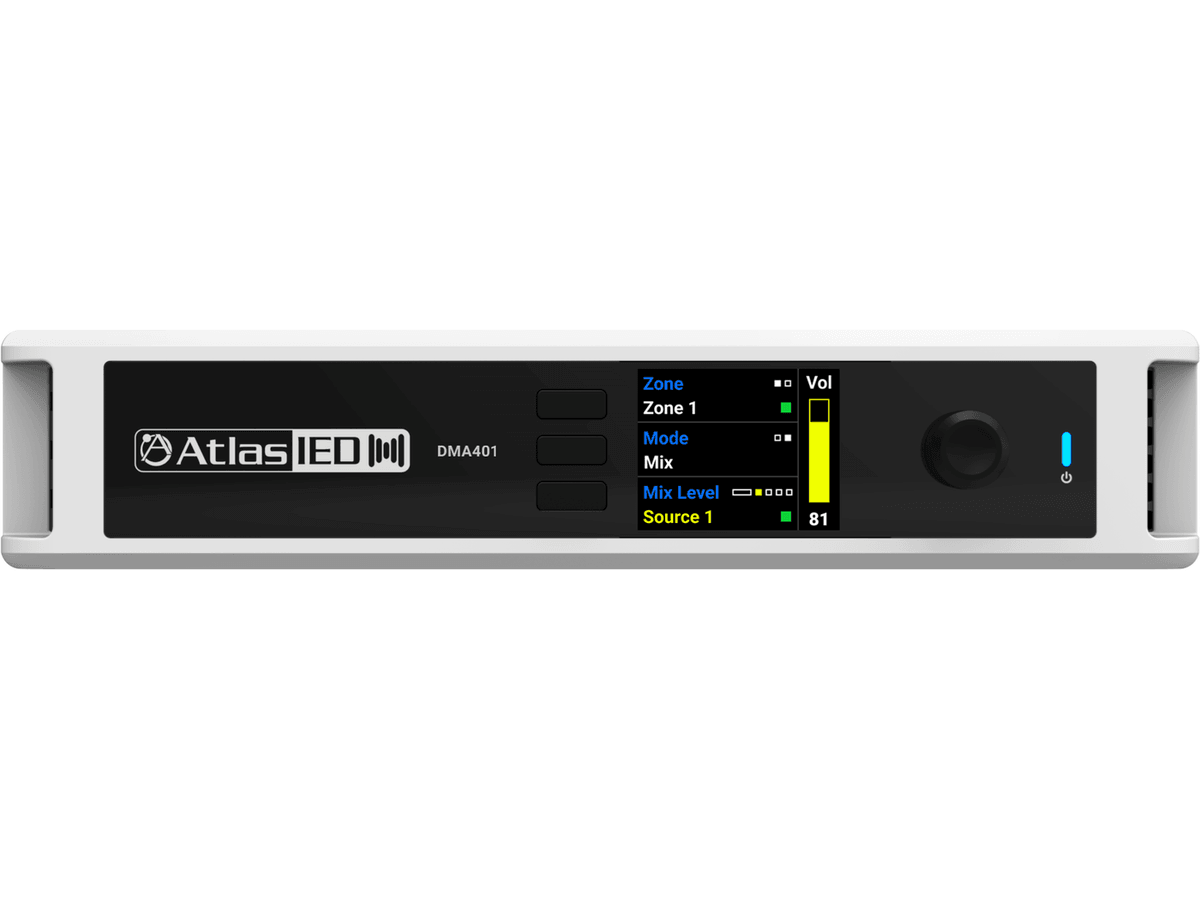

AtlasIED 1-Zone 400W Digital Mixer Amplifier
Equipment Sales & Professional Installation
MPN: DMA401
- Factory configured as a traditional mixer amplifier
- Multi-impedance capable (2 ohm–100V)
- DMA Control mobile app for iOS and Android
- Factory presets for zone and subwoofer applications
- 3 mic/line balanced inputs plus RCA and optical
- Load diagnostic tool
- Compact 1RU half-rack
Specifications
Specifications
| Output Power | 400 W @ 4 ohm, 8 ohm, 70.7 V, 100 V, 350 W @ 25V, 2 ohm |
|---|---|
| Frequency Response | 20 Hz-20 kHz (+0/-1.5dB) in 2-, 4-, 8-Ohm, 25 V Modes; 50 Hz-20 KHz (+0/-1.5 dB) in 70.7 V, 100 V Modes |
| Power Consumption | 0.4 W Standby Mode, 9.7 W Active Idle Mode, 417.2 W Full Load - 70V |
| Height | 1.75 " (44.5 mm) |
| Width | 8.5 " (215.9 mm) |
| Depth | 11.23 " (285 mm) |
| Weight | 5.3 lbs (2.4 kg) |
| Optional Rack Mount Kit | Rack Mount Hardware Included |
| Voltage Compatibility | Universal |
| Type | Digital Mixer Amplifier, 1 Zone with Zone Link output |
| Amplifier Topology | Class D |
| Power @ 4 ohm, 8 ohm, 70.7V, 100V | 400 W |
| Power @ 25V | 350 W |
| Power @ 2 ohm | 350 W |
| Input Type | Inputs 1, 2 and 3 RCA (summed) and Euroblock, Input 3: Optical TOSLINK, WTSD: RJ45 |
| Input Connector Type | RCA (summed), Euroblock, TOSLINK, RJ45 |
| Input impedance | 20 k ohm (Balanced), 10 k ohm (unbalanced) |
| Input Sensitivity | 775 mV Balanced, 316 mV RCA Adjustable |
| Warranty Period | 36 months from date of purchase |
