AtlasIED DT22
Equipment Sales & Professional Installation
MPN: DT22

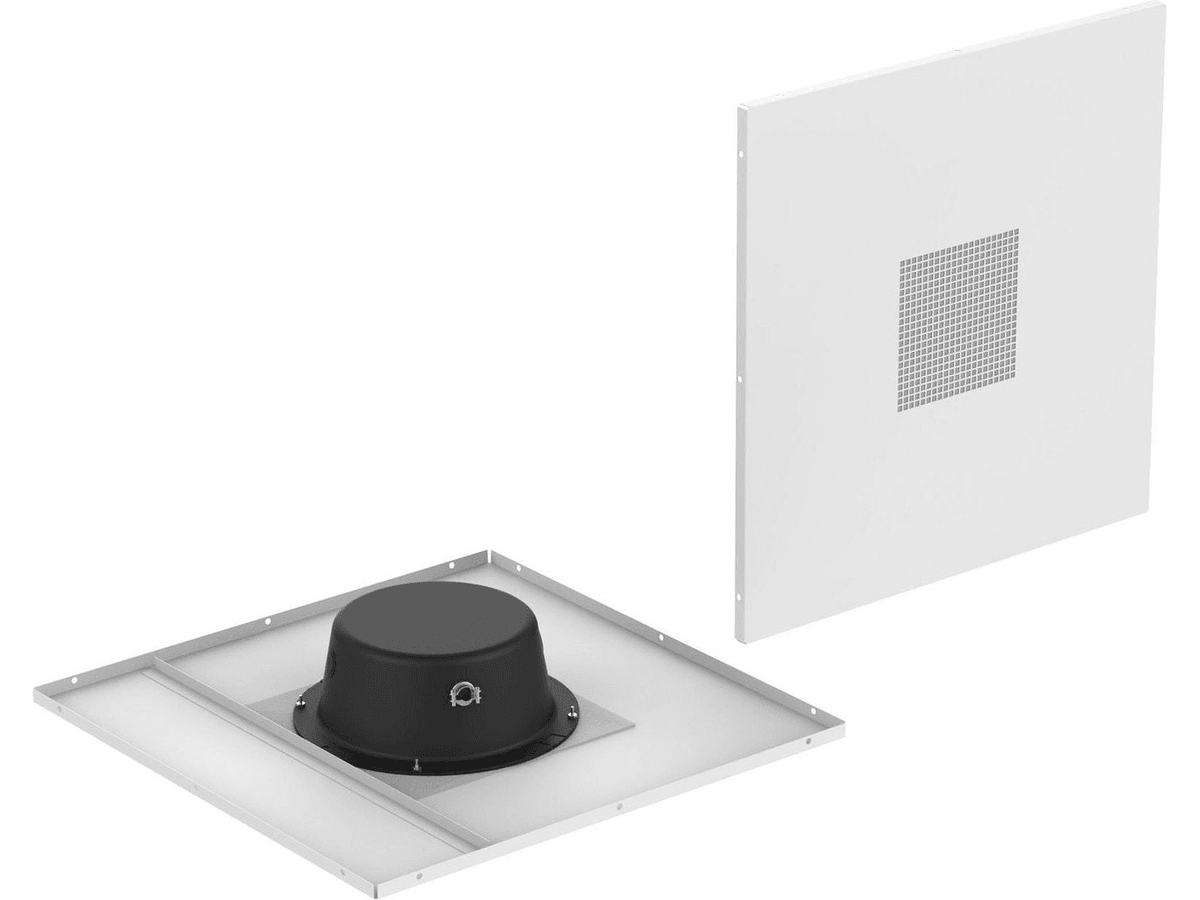

- 2x2 drop-in ceiling tile speaker
- 8" dual cone driver
- 0.25W–4W 70V power taps
- 96dB sensitivity
- 105° dispersion
- White finish
- 5-year warranty
Specifications
Specifications
| Speaker | 8" Dual Cone |
|---|---|
| Frequency Response | 100Hz - 5kHz |
| 70.7V Power Taps | .25, .5, 1, 2, & 4 Watts |
| Dispersion | 105 deg- 2kHz Octave Band (-6dB) |
| Magnet Weight | 10oz (283g) |
| Length | 23.9" (607mm) |
| Depth | 4.53" (115mm) |
| Weight | 11.3 lbs (5.125kg) |
| Color | White |
| Warranty Period | 60 months from date of purchase |
