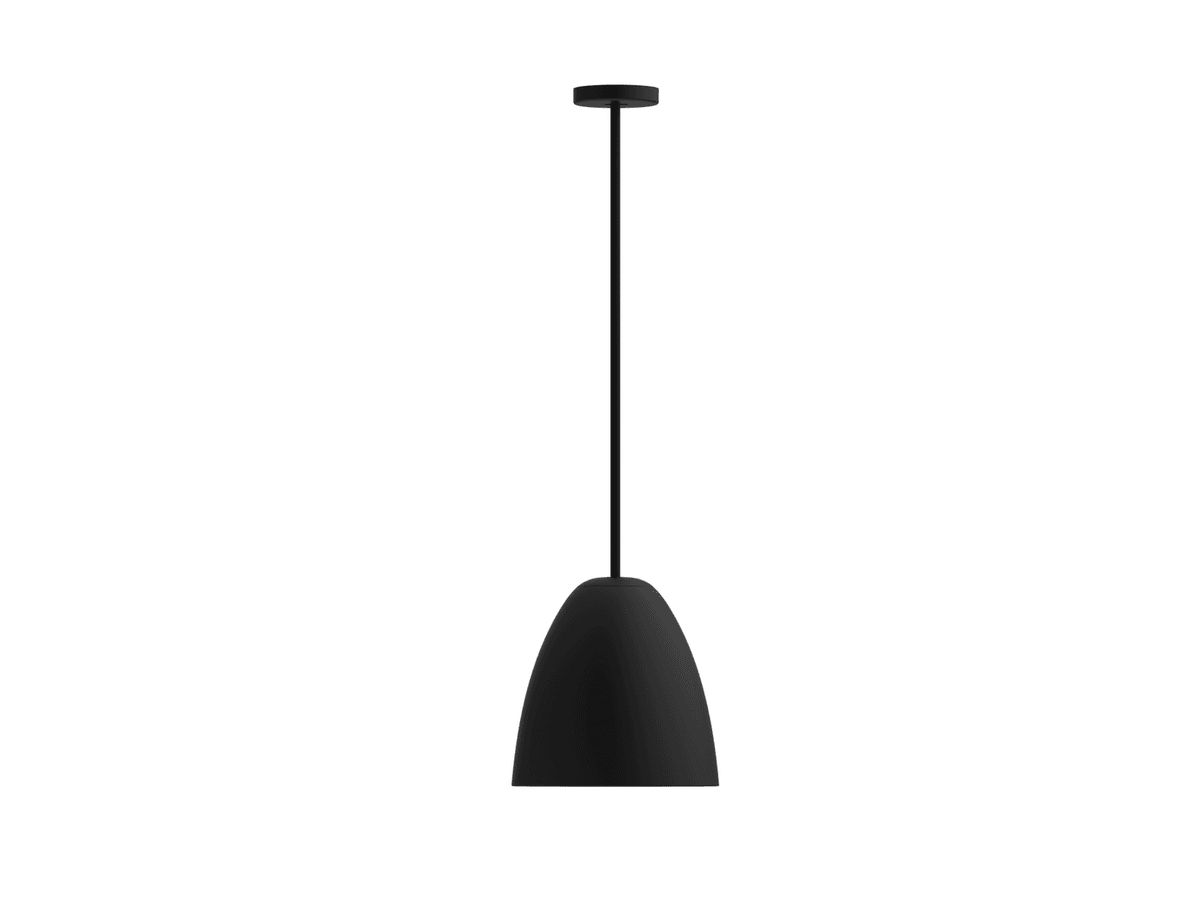

AtlasIED FP-8ST-W
Equipment Sales & Professional Installation
MPN: FP-8ST-W
- 8" IsoFlare pendant subwoofer
- 100W average / 400W peak power handling
- 60W, 30W, 15W, 7.5W transformer taps with low-Z
- 40Hz–200Hz frequency range
- 92dB sensitivity
- 180° nominal coverage
- 5-year warranty
Specifications
Specifications
| Type | Two-Way, Full Range, Pendant Loudspeaker |
|---|---|
| Nominal Coverage Angle (-6dB) | 180 deg |
| Nominal Impedance | 8 Ohms |
| Programme | 200W |
| Average | 112dB |
| Peak | 118dB |
| Transformer Taps | 60W, 30W, 15W, 7.5W (3.8W 70V) & Low Z operation |
| Frequency Range (-10dB) | 40Hz - 200Hz |
| Frequency Response (+/- 3dB) | 47Hz - 140Hz |
| System Sensitivity (1W @ 1m) | 92dB |
