AtlasIEDamplifiers

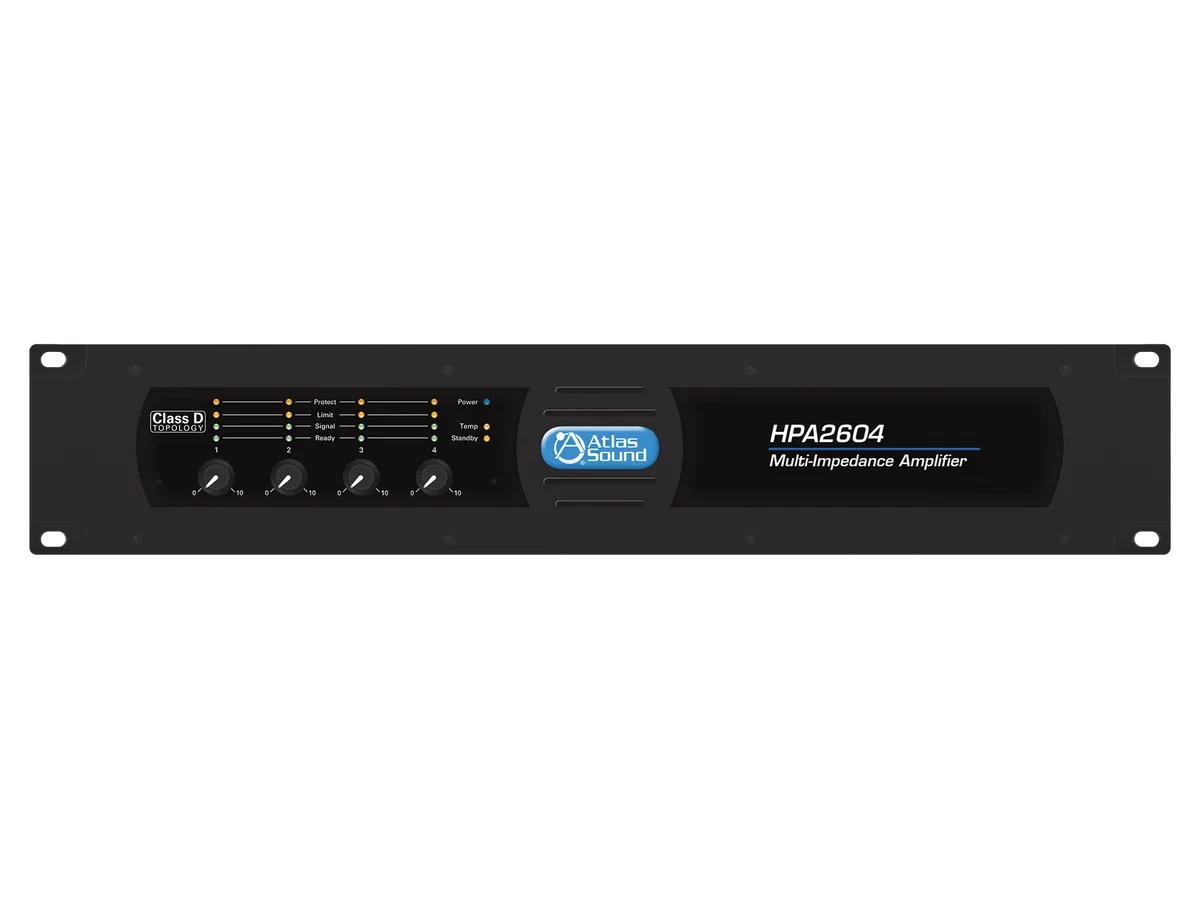

AtlasIED High Power Amplifier 260W 4-Channel
Equipment Sales & Professional Installation
MPN: HPA2604
- 4 x 650W per channel
- Balanced Euroblock Phoenix inputs
- Remote turn on
- Optional Dante network audio card slot
- Fault reporting
- Soft clip limiter protection
- Stepped attenuators with security covers
Specifications
Specifications
| 70.7V | 4 x 650W |
|---|---|
| 100V | 4 x 650W |
| 8 ohm | 4 x 650W |
| 4 ohm | 4 x 650W |
| 2 ohm | NA |
| 8 ohm Bridged | NA |
| 1 ohm RMS Power Output | NA |
| Frequency Response | 20Hz - 20kHz |
| THD | <0.15% |
| Channels | Four |
| Signal to Noise Ratio | >70dB |
| Connector Type | Terminal Block & Phoenix |
| Number of Fans | 1 - Variable Speed |
| BTU All Channels Driven AES | 2132.5 BTU (70.7V, 120VAC) |
| Max Current All Channels Driven Continuous | 26.9A |
| Rack Units | 2 RU |
| Height | 3.5" (89mm) |
| Width | 19" (483mm) |
| Depth | 15" (381mm) |
| Voltage Compatibility | Universal |
| Weight | 22 lbs. (10kg) |
| Finish | Black |
| Warranty Period | 36 months from date of purchase |
