AtlasIED SM55-M1000A35ATMASKSK
Equipment Sales & Professional Installation
MPN: SM55-M1000A35ATMASKSK
- Self-contained active sound masking system
- M1000A35 8" active masking speaker
- 5W internal + 30W external 70V amplification
- ATMASKSC stepped level controller
- Contoured pink noise masking
- UL2043 plenum-rated
- 5-year warranty
Specifications

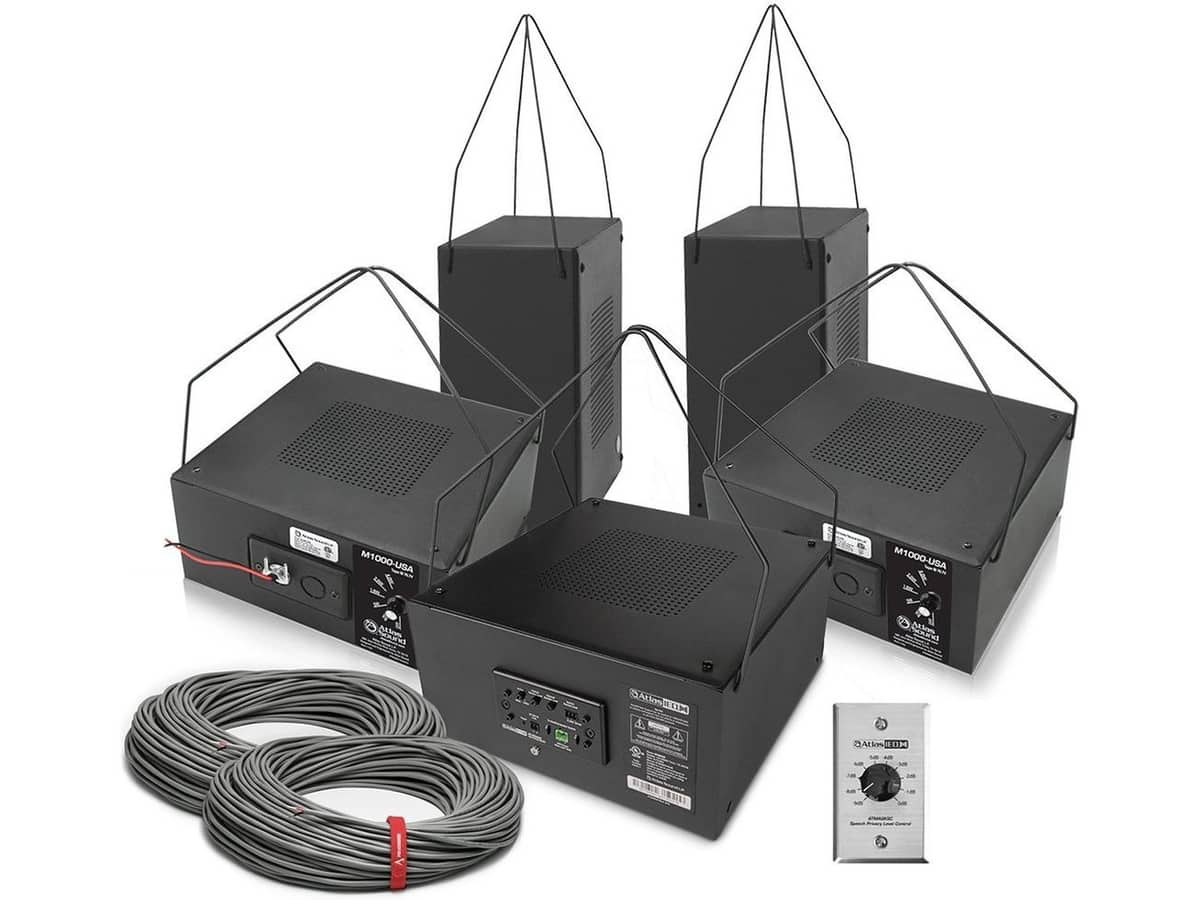

System Contents
| Active Speaker | M1000A35 (8" wide-range, 5W internal + 30W external 70.7V amp) |
|---|---|
| Level Controller | ATMASKSC wall-plate stepped attenuator (1dB steps, 0 to –9dB) |
System
| Masking Signal | Non-repeatable, contoured pink noise |
|---|---|
| Frequency Response | 80 Hz – 16 kHz |
| Controls | Internal + external level controls, variable hi-cut filter |
| Safety Rating | UL2043 plenum-rated |
| Connectivity | GPIO VCA remote level port (Euro block) |
| Coverage | Small-to-medium offices; scalable via passive speakers |
