Barcoprojectors

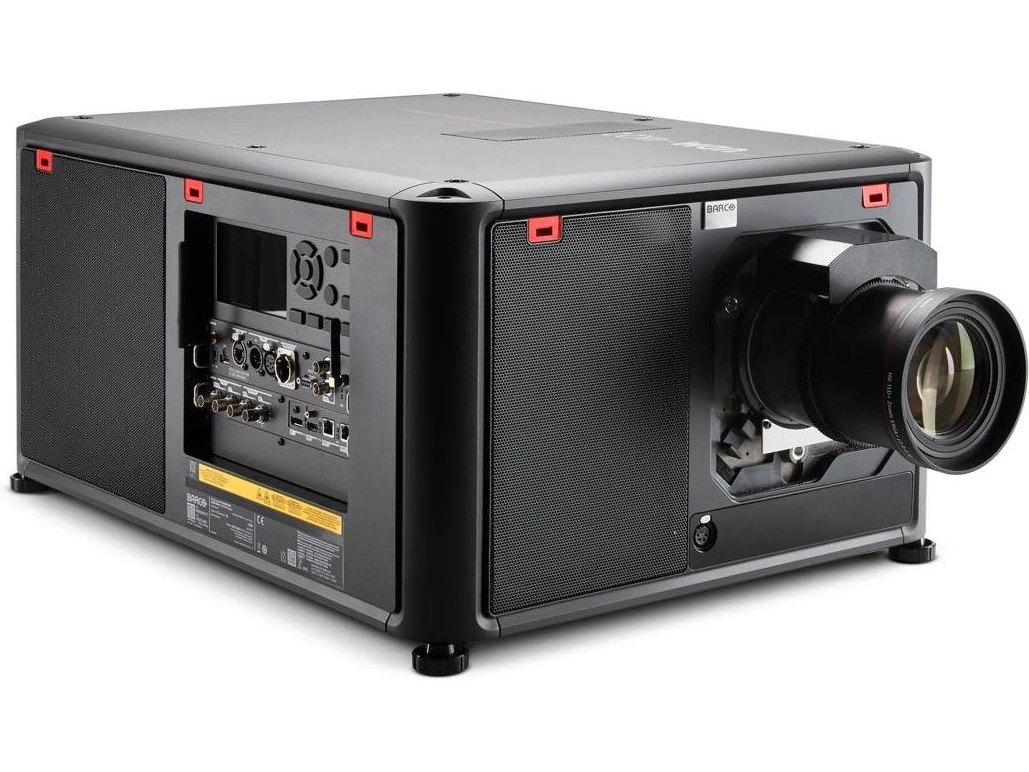

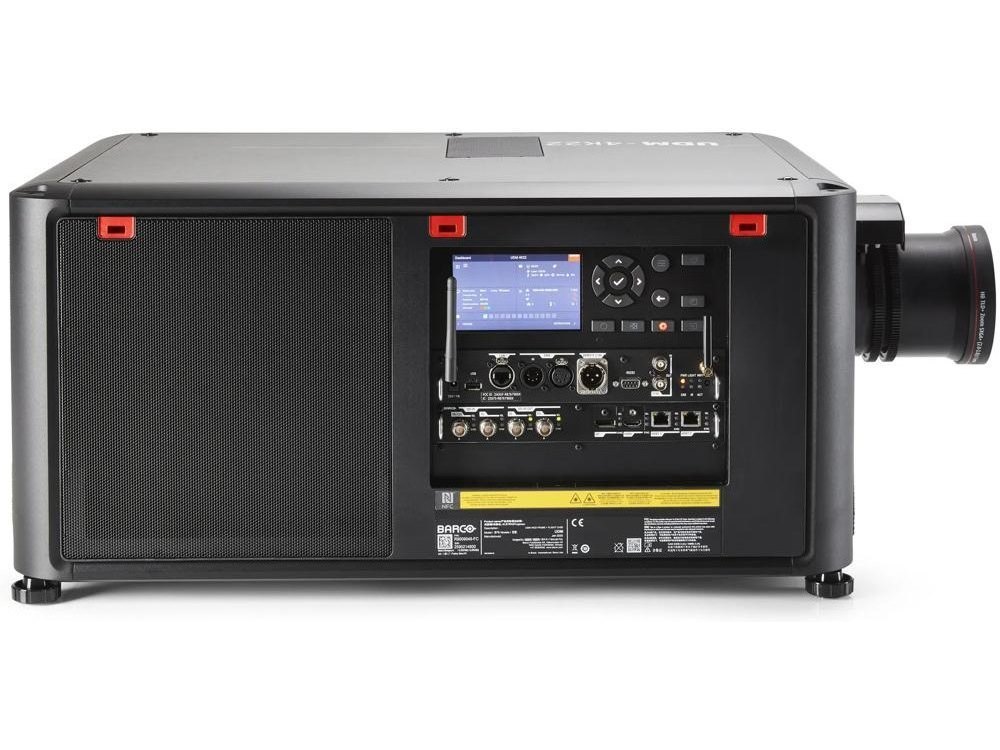

Barco UDM-4K22
Equipment Sales & Professional Installation
MPN: UDM-4K22
- 22,000 lumen 4K UHD 3-chip DLP
- Lightest 22K laser projector under 50 kg
- Pulse Single Step Processing
- Widest color spectrum beyond Rec. 709
- Widest lens shift on the market
- Sealed optics with DuraOptix
- 3-year warranty
Specifications
Display
| Display System | 4K UHD 3-chip DLP (3,840 x 2,400) |
|---|---|
| Light Source | Laser B + red compensator, inorganic phosphor wheel |
| Light Source Lifetime | 25,000 hrs (towards 50% brightness) |
| Contrast Ratio | 2,200:1 full field; 20,000:1 DynaBlack® |
| Brightness Uniformity | 95% |
| Aspect Ratio | 16:10 |
General
| Lens Type | TLD+ lenses, 0.37:1 to 11.5:1 |
|---|---|
| Dimensions (WxLxH) | 540 x 725 x 339 mm / 21.25 x 28.54 x 13.36 in |
| Weight | 48 kg / 105 lbs |
| Power Consumption | 1,800 W nominal, 2,200 W max @ 230 V |
| Noise Level | 48 dB(A) |
| Optical Lens Shift | Vertical up to 160%, horizontal ±50% |
