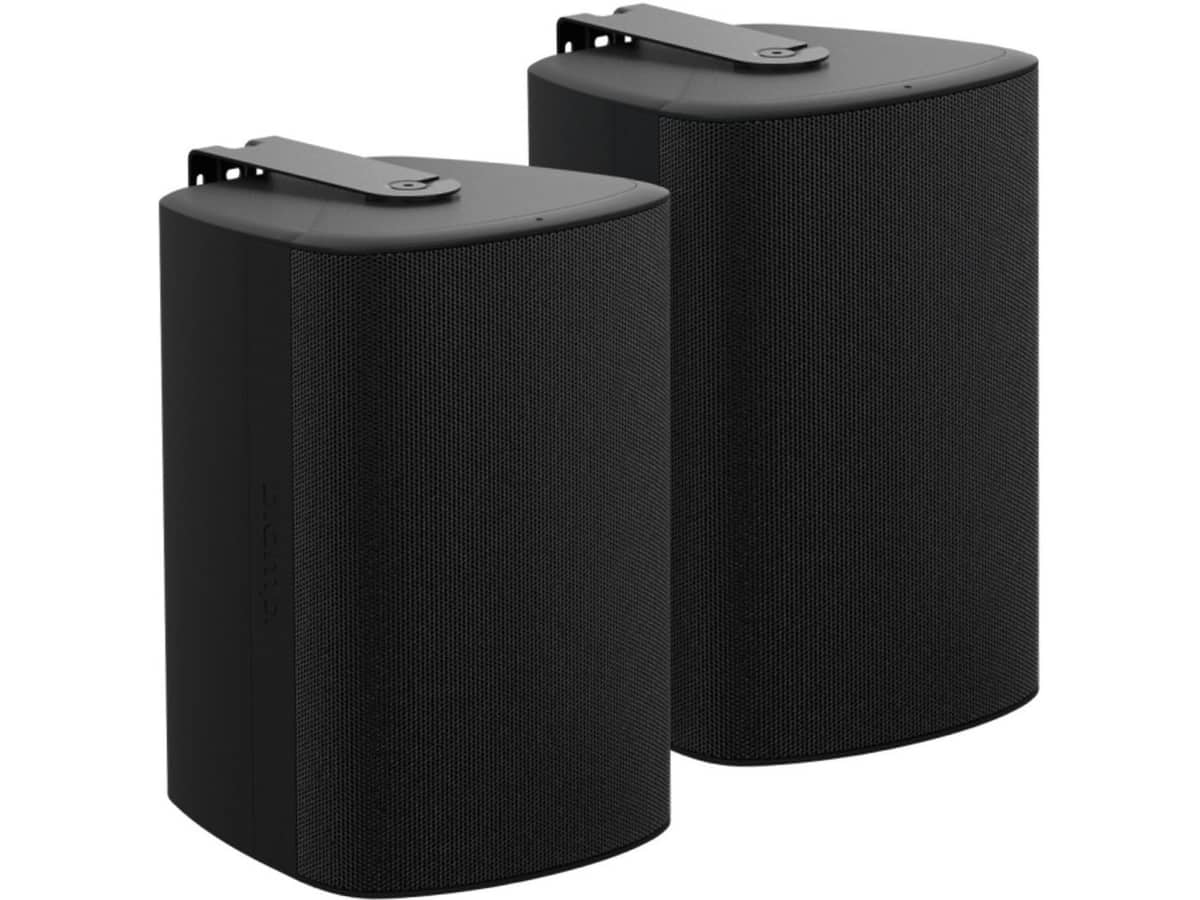

Biamp DX-S8-UB-B
Equipment Sales & Professional Installation
MPN: DX-S8-UB-B
- Zoom Certified
- High efficiency, high output, high intelligibility, low distortion
- Uniform coverage from coaxially mounted HF/LF drivers
- Choice of models with ClickMount pan-tilt bracket or the U-Bracket makes installation and aiming easy
- Uniform voicing with DX ceiling loudspeakers
- ETL listed, certified to UL 1480A and CSA 62368-1, CE marked, and RoHS compliant
Specifications
Specifications
| Operating Mode | Single Amplified with DSP |
|---|---|
| Operating Environment | Indoor / Outdoor Direct Exposure |
| Operating Range (-10 dB) | 62 Hz to 18 kHz |
| Nominal Beamwidth (H x V) | 110 deg x 110 deg |
| Transducers LF | 1 x 8" (203 mm) |
| Transducers HF | 1 x 1.25" (32 mm) exit compression driver |
| Sensitivity | 95 dB (2.83 V); 94 dB (1 W at rated impedance) |
| Nominal Continuous Power Handling | Passive 35 V (175 W @ 7 ohm) |
| Nominal Maximum SPL | Passive Peak 122 dB; Continuous 116 dB |
| Rated Continuous Voltage | Passive 29.2 V (29 dBV) |
| Rated Maximum SPL (Processed) | Passive Peak 126 dB; Continuous 114 dB |
| Autoformer | 70 V: 120 W, 60 W, 30 W, 15 W; 100 V: 120 W, 60 W, 30 W |
| Recommended Amplifiers | Passive 175 W - 350 W into 8 ohm (37 V - 53 V) |
| Crossover Frequency | 1.4 kHz |
| Required Accessory | 60 Hz, 12 dB/oct. electronic high pass filter |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | ClickMount pan-tilt bracket or U-Bracket |
| Certifications | ETL listed to comply with UL 1480A and CSA STD C22.2# 62368-1 |
| Environmental Rating | IP54 per IEC 60529 |
| Dimensions H x W x D | 385 x 255 x 260 mm (15.16" x 10.04" x 10.24") |
| Weight | 7.71 kg (17.0 lbs) - loudspeaker only |
| Finish | Refer to the Technical Drawings (pages 3 and 4) |
| Accessories (included) | ClickMount pan-tilt bracket or U-Bracket - dependent on model |
| Models (Order by color) | DX-S8 [-B/-W] - ClickMount pan-tilt bracket; DX-S8-UB [-B/-W] - U-Bracket with ClickPlug |
