Biampspeakers

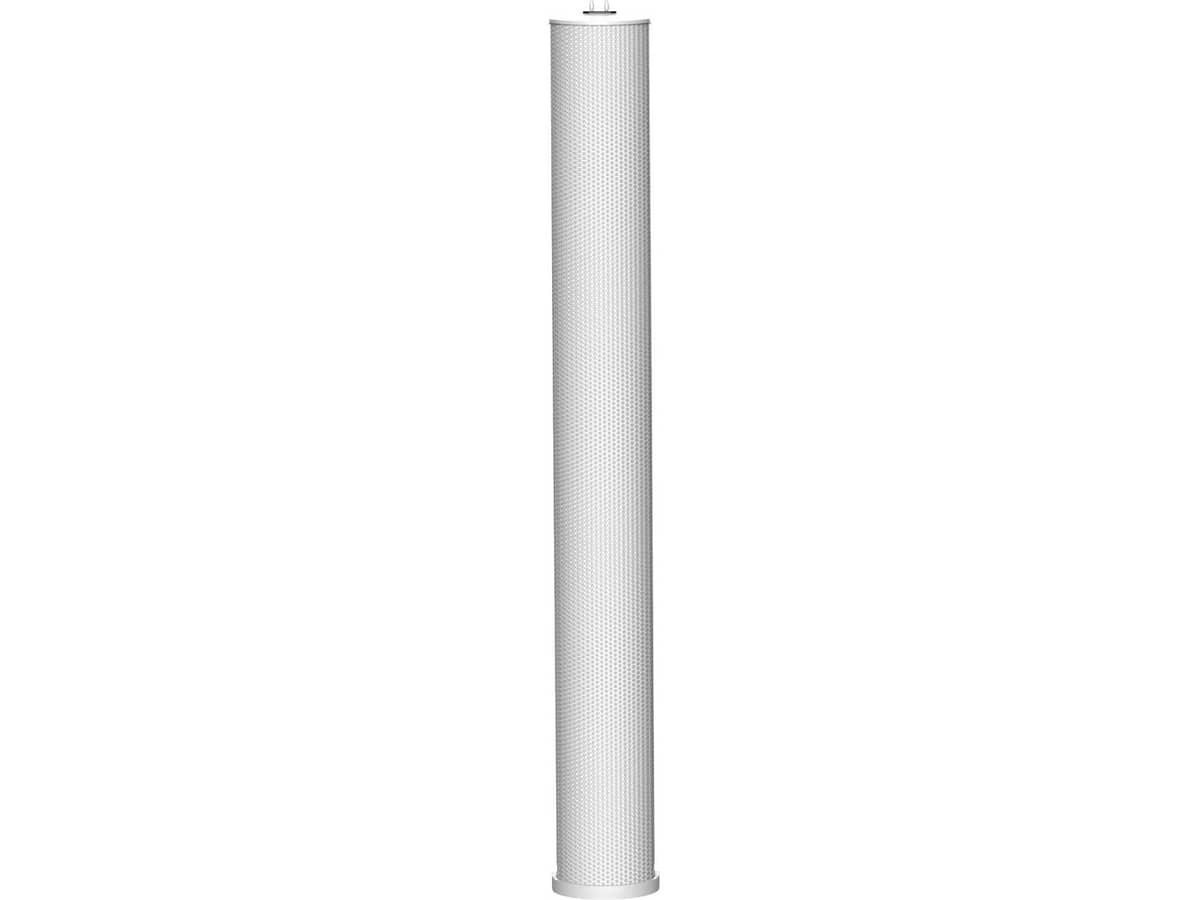

Biamp ENT-FRW
Equipment Sales & Professional Installation
MPN: ENT-FRW
- Full-Range 3-Way Column
- Zoom Certified
- Modular design for versatile coverage, free of unwanted lobes
- Wide frequency range and high output level
- Highly intelligible voice reproduction and excellent musical sound quality
- Simple installation using a variety of versatile mounting accessories
- Integrated T-Bar mounting bracket included
Specifications
Specifications
| Operating Mode | Passive |
|---|---|
| Operating Environment | Indoor or outdoor direct exposure |
| Operating Range | 200 Hz - 20 kHz |
| Nominal Beamwidth (H x V) | Horizontal: 120 deg; Vertical: 12 deg or 6 deg (user configurable) |
| Transducers | LF: Six 3.5 in neodymium; MF: Eighteen 2.35 in; HF: Forty-two 1 in (six 7 in planar-coupled Compact Ribbon Emulators) |
| Continuous Power Handling @ Nominal Impedance | 85 V, 600 W @ 12 ohm (2400 W Peak) |
| Nominal Sensitivity | Curved (12 deg): 93 dB; Straight (6 deg): 95 dB |
| Nominal Maximum SPL (Single unit) | Curved (12 deg): 120 dB; Straight (6 deg): 122 dB |
| Typical SPL at 100 feet (30 meters) | 96 dB |
| Required Accessories | DSP / External High Pass Filter - 200 Hz, 12 dB/octave |
| Recommended Amplifiers | 600 W - 1200 W @ 12 ohm (85 V - 120 V) |
| Input Connection | Top: Dual Banana (male); Bottom: NL4 locking connector, terminal strip, Banana (female) |
| Included Accessories | T-Bar mounting bracket, input wiring cover, top connector cover |
| Environmental | IP54 per IEC 60529, designed in accordance with MIL-STD-810G |
| Dimensions H x W x D | 44.5" x 5.5" x 7.36" (1129 mm x 140 mm x 187 mm) |
| Weight | 40 lbs (18.1 kg) |
| Finish | Refer to the Technical Drawing (page 3) |
| Options | ENT-CB Coupler Bracket; ENT-750T 750W autoformer |
| Grille | Powder-coated perforated marine-grade aluminum; Black (RAL#9004) or White (RAL#9003) |
| Enclosure / Finish | Black or White high gloss extruded paintable PVC |
