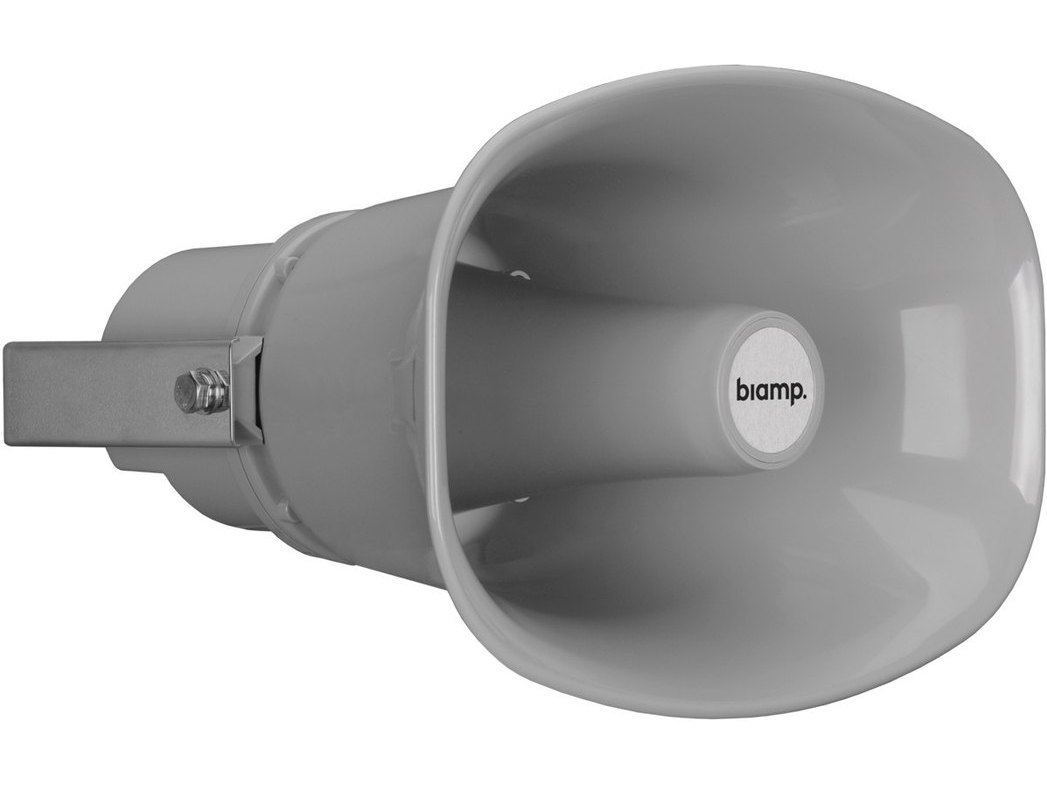

Biamp H30LT-G
Equipment Sales & Professional Installation
MPN: H30LT-G
- Very high output, wide bandwidth voice paging and signal horn
- Rugged construction for industrial applications
- IP66 Indoor/Outdoor ready
- Permanently attached and water-sealed input wire
- Externally accessible 6-position tap switch
Specifications
Specifications
| Operating Mode | Passive with selectable low-impedance or 70 V/100 V operation, single-amplified with DSP |
|---|---|
| Operating Environment | Indoor or Outdoor Direct Exposure |
| Operating Range (-10 dB) | 450 Hz to 9.6 kHz |
| Nominal Beamwidth (H x V) | 60 deg x 75 deg |
| Transducer | MF: 1 x 1.6" (40 mm) voice coil compression driver |
| Sensitivity | 106 dB (2.83 V); 106 dB (1 W, 8 ohm) |
| Nominal Continuous Power Handling | 15 V (30 W, 8 ohm rated impedance) |
| Nominal Maximum SPL (Processed) @ 1 m | Continuous 118 dB, Peak 124 dB |
| Rated Continuous Voltage | 15.5 V (24 dBV) |
| Rated Maximum SPL (Processed) @ 1 m | Continuous 118 dB, Peak 130 dB |
| Transformer | 70 V: 30 W, 15 W, 7.5 W, 3.75 W, 1.87 W; 100 V: 30 W, 15 W, 7.5 W, 3.75 W |
| Required Accessories | 425 Hz, 6 dB/oct. Butterworth high pass filter; DSP preset |
| Recommended Amplifiers | 30 W - 60 W, 8 ohm (15 V - 22 V) |
| Input Connection | 2 x 0.3 mm2 conductor, 1 m (39.3") cable |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | U-Bracket |
| Compliance | IEC 62368-1 certified |
| Environmental Rating | IP66 per IEC 60529 |
| Dimensions H x W x D | 207 mm x 286 mm x 288 mm (8.15" x 11.26" x 11.35") |
| Weight (with U-Bracket) | 2.2 kg (4.85 lbs) |
| Shipping Weight | 2.7 kg (5.95 lbs) |
| Enclosure / Finish | High impact ABS enclosure, grey (RAL9006) |
| Bracket | Stainless steel |
