Biampspeakers

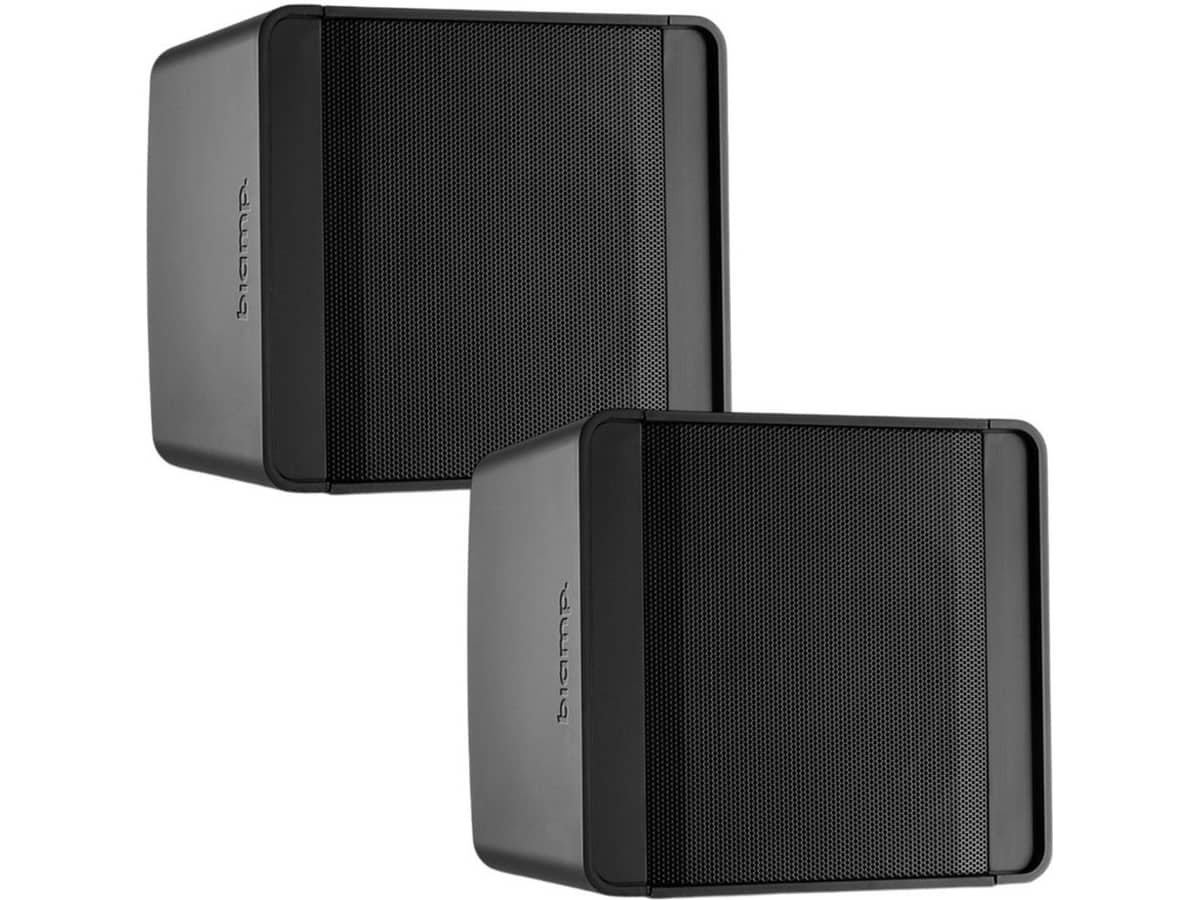

Biamp KUBO5-BL
Equipment Sales & Professional Installation
MPN: KUBO5-BL
- Zoom Certified
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated
- Magnetically attached end caps hide audio connections and bracket hardware
- Loudspeaker overload protection for 24/7 failsafe operation
Specifications
Specifications
| Operating Mode | Passive |
|---|---|
| Operating Environment | Indoor |
| Operating Range (-10 dB) | 115 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 70 deg x 70 deg |
| Transducers LF | 1 x 5.25" (133 mm) coated paper cone |
| Transducers HF | 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 20 V, 50 W @ 8 ohm (200 W peak) |
| Nominal Sensitivity @ 1 m @ 1 W | 84 dB |
| Nominal Maximum SPL @ 1 m Peak | 107 dB |
| Nominal Maximum SPL @ 1 m Continuous | 101 dB |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 50 W - 100 W @ 8 ohm (20 V - 28 V) |
| Input Connection | (2x) 2-way Euroblock connectors for daisy-chaining; up to 12 AWG (2.5 mm2) |
| Mounting Provisions | U-bracket |
| Environmental | IP40 per IEC 60529 |
| Dimensions H x W x D | 155 mm x 164 mm x 136 mm (6.1" x 6.4" x 5.3") |
| Weight | 1.7 kg (3.7 lbs) |
| Accessories (included) | U-bracket; safety cable |
