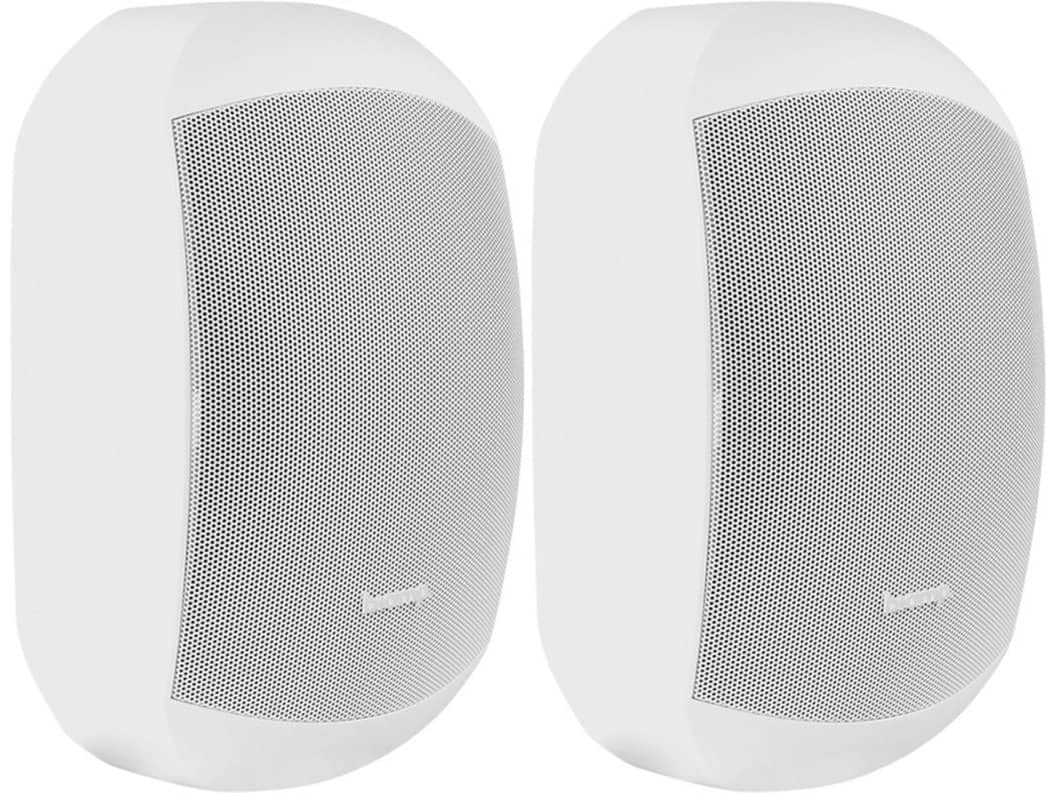

Biamp MASK6CT-W
Equipment Sales & Professional Installation
MPN: MASK6CT-W
- Zoom Certified
- IP64 rated for outdoor applications such as patios or concourses
- Waterproof connector sealing for outdoor applications
- Innovative ClickMount bracket allows all audio connections to be made at the bracket
- Integrated spirit level for fast, hassle-free positioning and mounting
- Tap switch allows for 70V/100V or 16 ohm low impedance operation
- Loudspeaker overload protection for 24/7 failsafe operation
Specifications
Specifications
| Operating Mode | Passive |
|---|---|
| Operating Environment | Indoor/Outdoor |
| Operating Range (-10 dB) | 65 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 100 deg x 50 deg |
| Transducers LF | 1 x 6.5" (165 mm) coated paper cone |
| Transducers HF | 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 49 V, 150 W @ 16 ohm (600 W peak) |
| Nominal Sensitivity @ 1 m @ 1 W | 90 dB |
| Nominal Maximum SPL @ 1 m Peak | 118 dB |
| Nominal Maximum SPL @ 1 m Continuous | 112 dB |
| Transformer | 70 V: 60 W, 30 W, 15 W, 7.5 W, 3 W; 100 V: 60 W, 30 W, 15 W, 6 W |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 150 W - 300 W @ 16 ohm (49 V - 69 V) |
| Input Connection | Lever-action input and output terminals; up to 16 AWG conductors |
| Controls | Power tap / low impedance selector switch |
| Mounting Provisions | ClickMount bracket |
| Environmental | IP64 per IEC 60529 |
| Dimensions H x W x D | 12.9" x 7.8" x 7.5" (328 mm x 198 mm x 190 mm) |
| Weight | 9.7 lbs (4.4 kg) |
| Accessories (included) | ClickMount bracket; safety cable |
