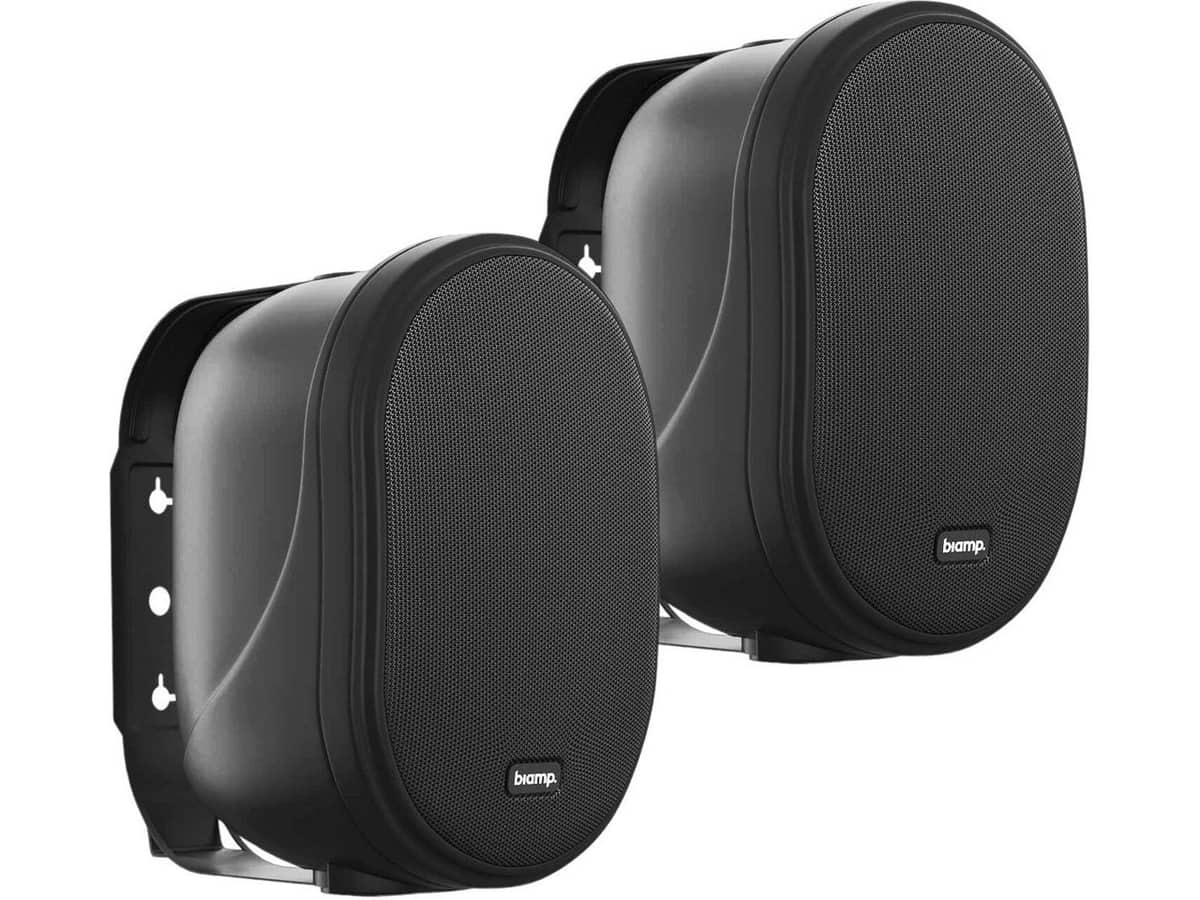

Biamp OVO5T-B
Equipment Sales & Professional Installation
MPN: OVO5T-B
- Contemporary design, small, budget-friendly
- High output and wide coverage pattern are ideal for larger spaces
- Full-range, 2-way design ideal for background music and voice paging
- Integrated pan and down-tilt U-bracket included
- Included input wiring cover
Specifications
Specifications
| Operating Mode | Passive with selectable low-impedance or 70 V/100 V operation, single amplified with DSP |
|---|---|
| Operating Environment | Indoor |
| Operating Range (-10 dB) | 74 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 130 deg x 100 deg |
| Transducers LF | 1 x 5.25" (133 mm) coated paper cone |
| Transducers HF | 1 x 1" (25 mm) silk dome tweeter |
| Sensitivity | 86 dB (2.83 V); 89 dB (1 W, 16 ohm) |
| Nominal Continuous Power Handling | 25 V (40 W, 16 ohm nominal impedance) |
| Nominal Maximum SPL (Processed) @ 1 m | Continuous 102 dB, Peak 108 dB |
| Rated Continuous Voltage | 20.0 V (26 dBV) |
| Rated Maximum SPL (Processed) @ 1 m | Continuous 100 dB, Peak 112 dB |
| Transformer | 70 V: 30 W, 15 W, 7.5 W, 3 W, 1.5 W; 100 V: 30 W, 15 W, 6 W, 3 W |
| Required Accessories | 80 Hz, 12 dB/oct. Butterworth high pass filter; DSP preset |
| Recommended Amplifiers | 40 W - 80 W, 8 ohm (18 V - 25 V) |
| Input Connection | Spring-lever terminals with wiring cover |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | Pan and tilt U-bracket |
| Compliance | IEC 62368-1 certified |
| Environmental Rating | IP40 per IEC 60529 |
| Dimensions H x W x D | 256 mm x 167 mm x 189 mm (10.07" x 6.56" x 7.44") |
| Weight (loudspeaker/mount) | 3.08 kg (6.8 lbs) |
| Models (Order by color) | OVO5T [-BL,-W] |
| Included Accessory | Wall mount wedge bracket - adds 5 deg more tilt |
