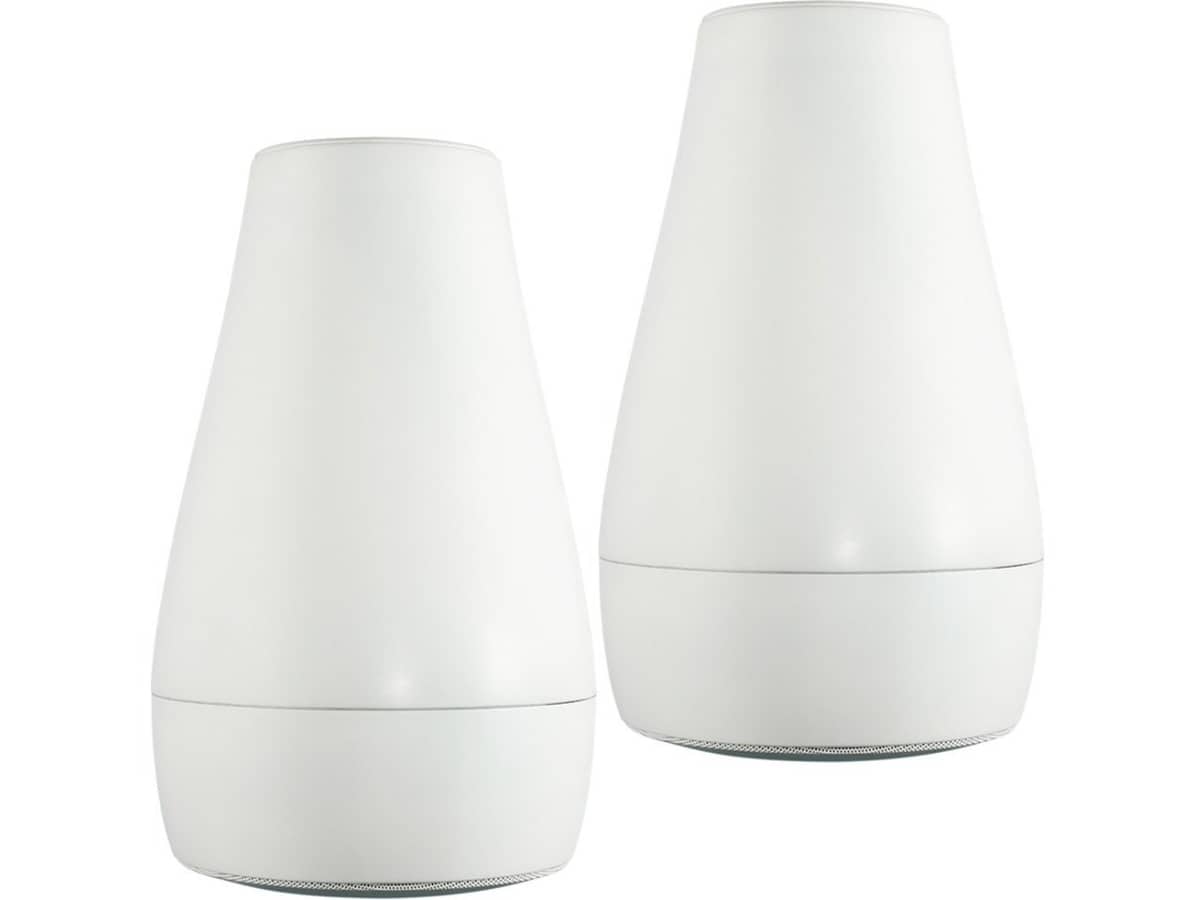

Biamp P6-W

Equipment Sales & Professional Installation

MPN: P6-W

Stylish raindrop profile
Bridge-mounted soft dome tweeter mechanically isolated from the low frequency driver
Magic Cable is pre-terminated inside the pendant to ensure no exposed connections at the loudspeaker
IP54 rated for outdoor splash applications such as patios or concourses
6-position 70V/100V tap with low impedance bypass
ETL listed to comply with UL1480A; certified to CSA C22.2#62368-1 and C22.2#60950-22
Covered by Biamp Systems' five-year warranty

Specifications

Operating Mode	Passive with DSP
Operating Environment	Indoor/Outdoor (splash applications only)
Operating Range	75 Hz to 18.5 kHz (-10 dB)
Nominal Beamwidth (H x V)	90 deg, conical
Transducers LF	1 x 6.5" (165 mm) polypropylene cone
Transducers HF	1 x 1" (25 mm) soft dome
Continuous Power Handling @ Nominal Impedance	Passive 19 V, 60 W @ 6 ohm (240 W peak)
Nominal Sensitivity @ 1 m	Passive @ 1 W: 86 dB
Nominal Sensitivity @ 2.83 V	88 dB
Nominal Maximum SPL @ 1 m Passive Peak	110 dB
Nominal Maximum SPL @ 1 m Passive Continuous	104 dB
Transformer	70 V: 60 W, 30 W, 15 W, 7.5 W, 3.75 W, 1.875 W; 100 V: 60 W, 30 W, 15 W, 7.5 W, 3.75 W
Required Accessories	80 Hz, 12 dB/oct. high pass filter
Recommended Amplifiers	60 W - 120 W @ 6 ohm (19 V - 27 V)
Input Connection	Pre-terminated inside housing
Controls	Wattage / low impedance selector switch
Mounting Provisions	Two pre-terminated aircraft cables and Griplock cable fasteners; 14 feet (4.3 m) Magic Cable
Compliance	ETL listed to comply with UL 1480A; certified to CSA C22.2#62368-1 and C22.2#60950-22
Dimensions H x Dia.	15.6" x 9.4" (397 mm x 238 mm)
Weight	11 lbs (5.0 kg)
Accessories (included)	Two Griplock cable fasteners
Grille	Powder-coated perforated steel, Black or White
Enclosure / Finish	PC/ABS V-0 plastic, matte finish, Black or White
Options	MC-SK10 inline splice kits; MC-PHK16-12PK pendant hang kits
