Crown Audioamplifiers

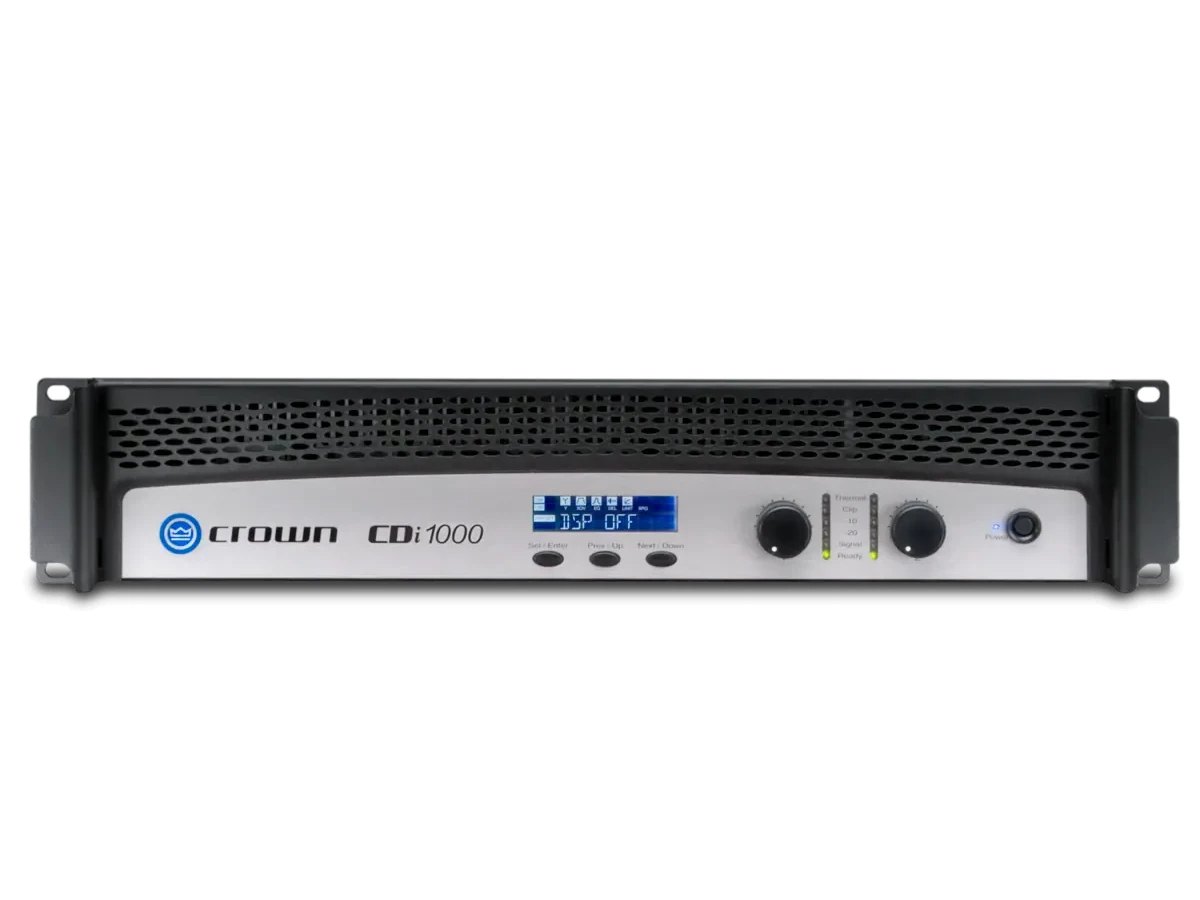

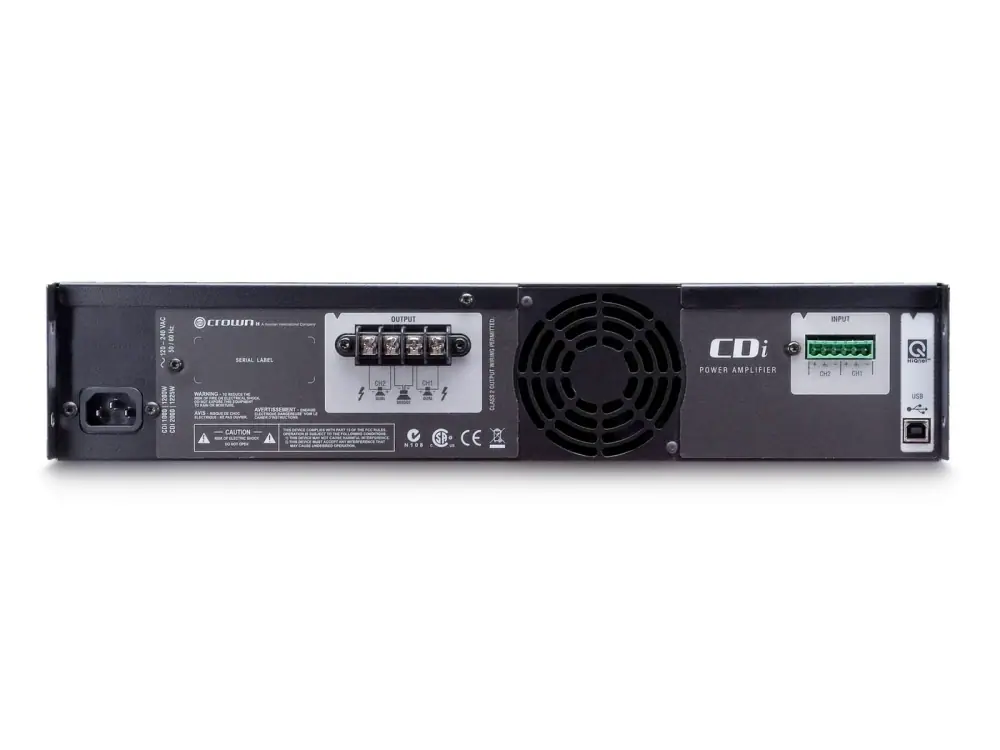

Crown Audio CDi 1000
Equipment Sales & Professional Installation
MPN: CDi 1000
- Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs.
- Switch-mode universal power supply.
- Intuitive front-panel LCD screen for quick, easy configuration.
- Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting.
- Up to 20 user defined DSP presets are available.
Specifications
Specifications
| Channels | 2 |
|---|---|
| Sensitivity (for full rated power at 8 ohms) | 1.4V |
| Rated Power Output (per channel @ 4 ohms) | 500W Stereo |
| Signal to Noise Ratio (below rated 1 kHz power at 8 ohms) | 100 dB (A-weighted) |
| THD | < 0.5% |
| Damping Factor (20 Hz to 400 Hz) | > 500 |
| Frequency Response (at 1W, 20 Hz - 20 kHz) | + 0 dB, -1 dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz | >70 dB |
| Input Impedance (nominal) | 20k ohms balanced, 10k ohms unbalanced |
| Dimensions | 3.5" x 19" x 12.25" |
| Weight | 22.0 lbs |
| IEC Power Connector | 15A |
