Definitive Technologyspeakers

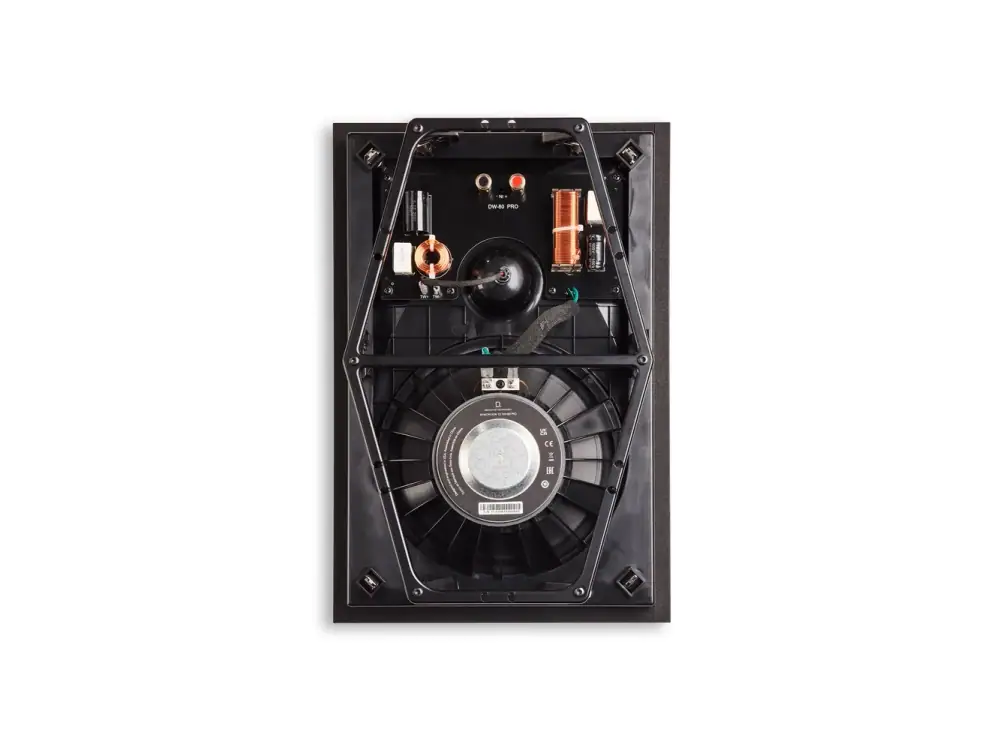

Definitive Technology DW-80 Pro
Equipment Sales & Professional Installation
MPN: DW-80 Pro
- 8.0" Mineral-Filled Woofer
- 1" Pivoting Aluminum Oxide Dome Tweeter
- Toolless Installation
- Flush, Border-Free Design
Specifications
Specifications
| Product Dimensions (W x H x D) | 10.84 x 15.96 x 3.95 in (275.4 x 405.4 x 100.3 mm) |
|---|---|
| Cut- Out Dimensions (W x H) | 9.61 x 14.73 in (244.2 x 374.2 mm) |
| Mounting Depth | 3.66 in (92.9 mm) |
| Weight | 6.39 lbs (2.9 kg) |
| Color | White Paintable Grille |
| Grille material | Micro-Perforated Magnetic Grille |
| Tweeter | 1 in Pivoting Aluminum Oxide Dome Tweeter |
| Midrange/Midbass | 8 in Mineral Filled Poly |
| Frequency response | 22 Hz-30 kHz (-10dB) 35 Hz-25 kHz (-3dB) |
| Nominal impedance | 6 ohm |
| Sensitivity | 87dB (2.83V/1m) |
| Recommended Amplifier Power | 20-120W |
| IP Rating (Ingress Protection) | IP55 |
| Warranty | 5 years |
| Included accessories | Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide |
