Denon AVR-S770H
Equipment Sales & Professional Installation
MPN: AVR-S770H
- 7.2 Channels
- 3D audio from Dolby Atmos and DTS:X
- 8K HDMI
- Powered by HEOS
- Wi-Fi and Bluetooth
- Audyssey room correction
Specifications
Multichannel Surround
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / No |
|---|---|
| DTS Neo:6 / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music | Yes / Yes / Yes / Yes |
| Dolby ProLogic Il / Dolby Surround | No / Yes |
| Multichannel Stereo | Yes |
| Dialog Enhancer | Yes |
| Max. number of processing (preamp) channels | 7.1 |
Sound Enhancements
| Discrete Power Amplifier | 7 |
|---|---|
| Audyssey | MultEQ |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
|---|---|
| HEOS Wireless Multi-Room Technology | Yes |
| Bluetooth Re-Transmit for Bluetooth Headphones | Yes (with volume control) |
| Alexa / Google Voice Assistant / Apple HomePod | Yes / Yes / Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC ,DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify | Yes (connect) |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services | Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon AVR Remote |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back/Front | 6 (3x 8K) / Yes |
|---|---|
| HDMI Outputs: Main/Zone | 1 / No |
| HDMI max Resolution (8k / 4k) | 8k/60 - 4k/120 |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| HDMI: 8K / 4K / CEC / eARC | Yes / Yes / Yes / Yes |
| HDMI: Dolby Vision / HDR 10+ / Dynamic HDR /HLG | Yes / Yes / Yes / Yes |
| HDMI: ALLM / QMS / QFT / VRR | Yes / No / Yes / Yes |
| HDMI Pass-Though in Standby Mode | Yes |
Multiroom / CI
| HEOS Multiroom integrated | Yes |
|---|---|
| TV Sound grouping | Yes |
| Multiroom zones | 2 |
| Main room multichannel audio - Zone stereo downmix | Yes |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Pre-Out | Yes / No |
| Webbrowser Setup | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / No / Yes / Yes |
Others
| Voice Control - Works with Amazon Alexa | Yes |
|---|---|
| Voice Control - Google Assistant / Apple Siri | Yes |
| Auto speaker setup by microphone | Audyssey MultEQ |
| Front Display | 1 line FLD |
| Graphic User Interface - GUI | High Definition 1080p |
| GUI languages | 3 |
| Setup Assistant | Yes |
| Quick Select Plus / Quick Select | Yes / No |
| Firmware Update by Network / USB | Yes / Yes |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| HDMI Diagnostic Mode | Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |

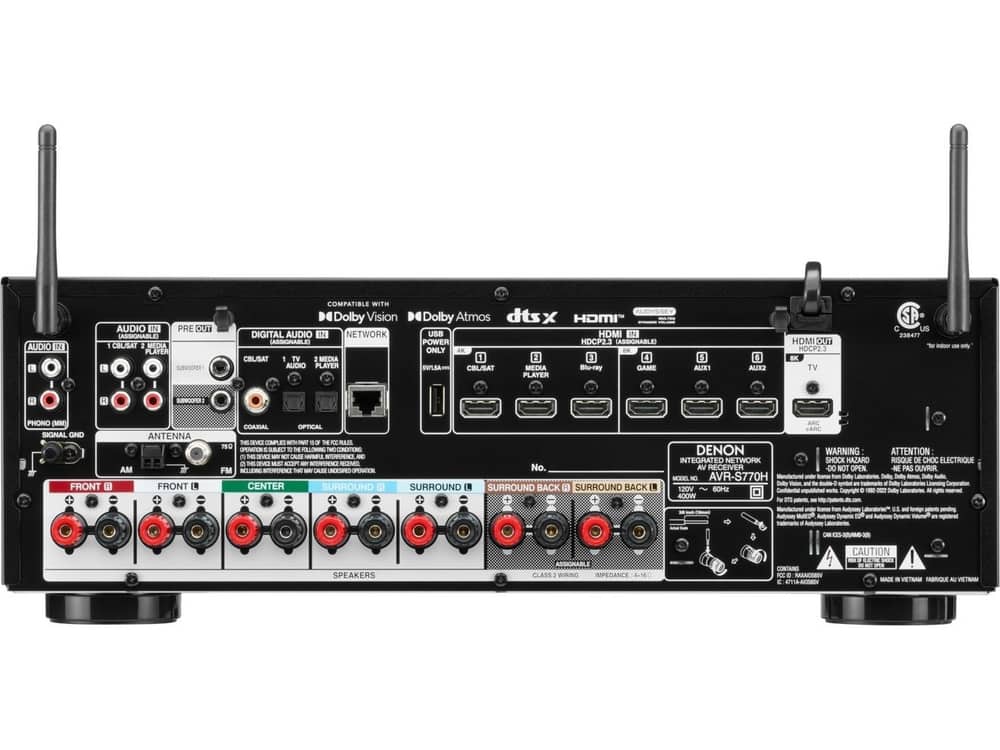

Inputs/Outputs
| HDMI In/Out | 6 / 1 |
|---|---|
| Analog In/Out | 2 / No |
| Phono (MM) In | Yes |
| Digital in: Optical/Coaxial | 2 / 1 |
| Multichannel Pre-Out | Yes (0.2) |
| Subwoofer Out | 2 |
| Speaker Terminal: Gold-Plated Screw / Regular Screw | No / Yes |
| Number of Speaker Terminals | 7 |
| Multi-Room Speaker Terminal | assignable |
| USB Audio Input Front | Yes |
| USB Power 5V/1.5A Rear | Yes |
Specifications
| Number of Power Amps | 7 |
|---|---|
| Power Output (8 ohm, 20 Hz-20 kHz, 0.08% 2ch Drive) | 75 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 110 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 165 W |
General
| Available colors: Black / Premium Silver | Yes / No |
|---|---|
| System Remote Control | RC-1257 |
| Power Consumption in W | 400 |
| Power Consumption No-Sound (ECO on / off) in W | 29 W / 39 W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in in ( Antenna:Vertical :(W x D x H) in in) | 17.1x 13.3 x 6.0 |
| Carton Maximum Dimensions (W x D x H) in in | 20.6 x 17.1 x 9.12 |
| Weight in lbs | 19.0 |
| Carton Weight (inc. product) in lbs | 23.4 |
