DLA-NZ500

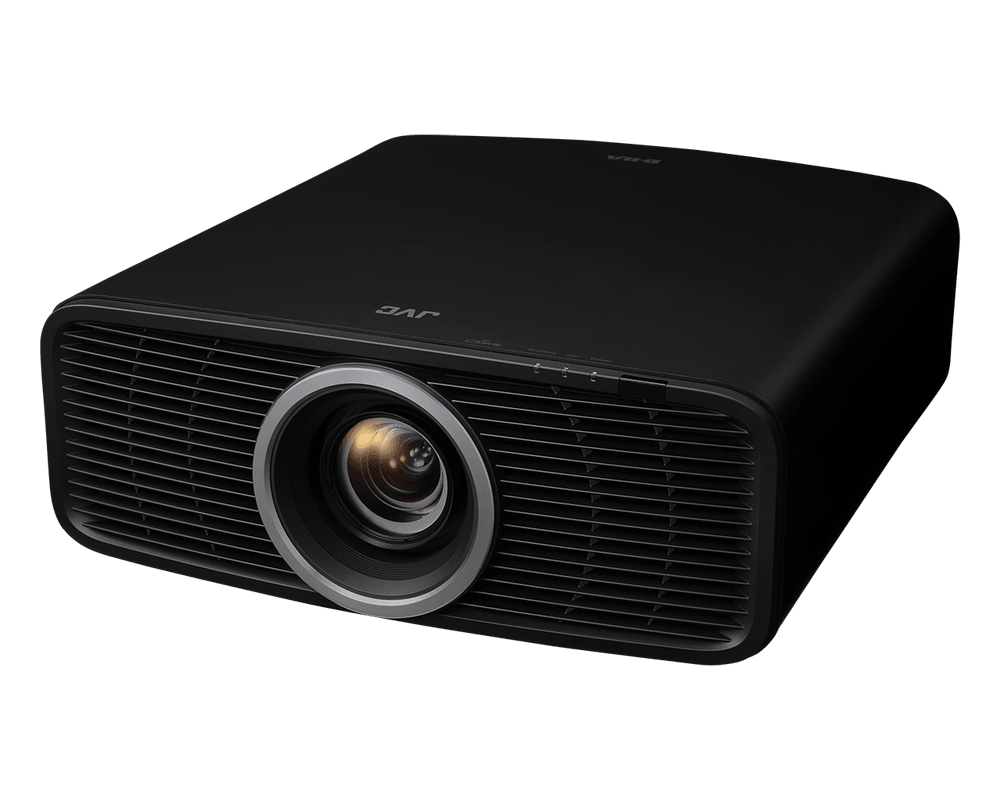

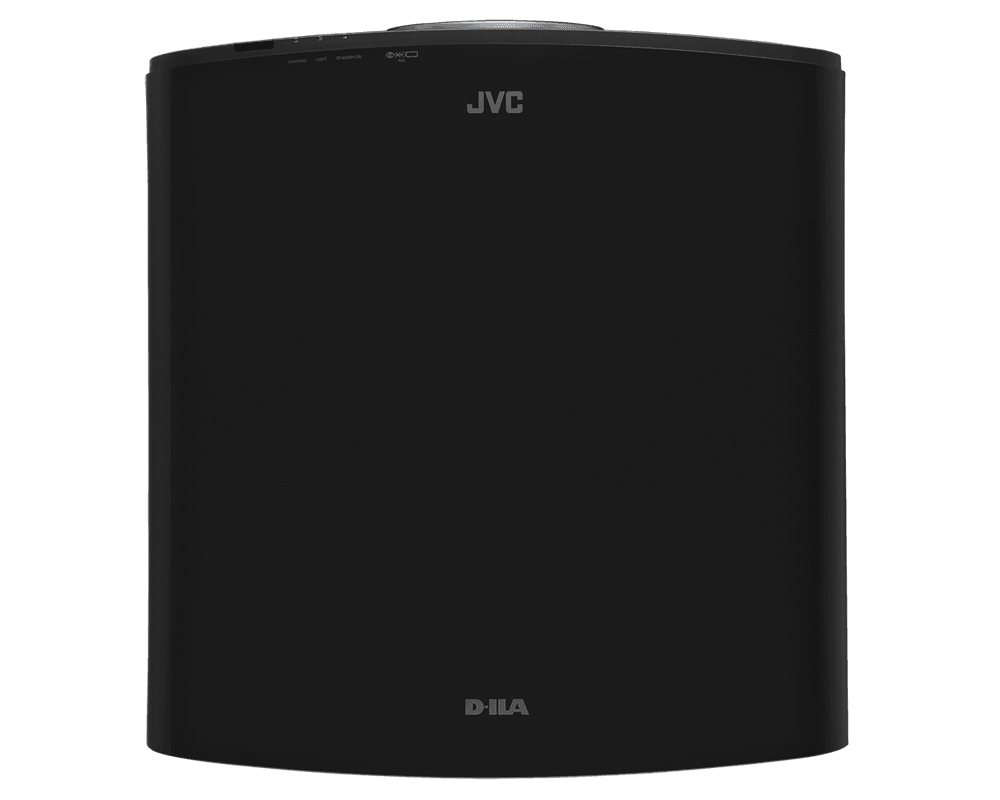

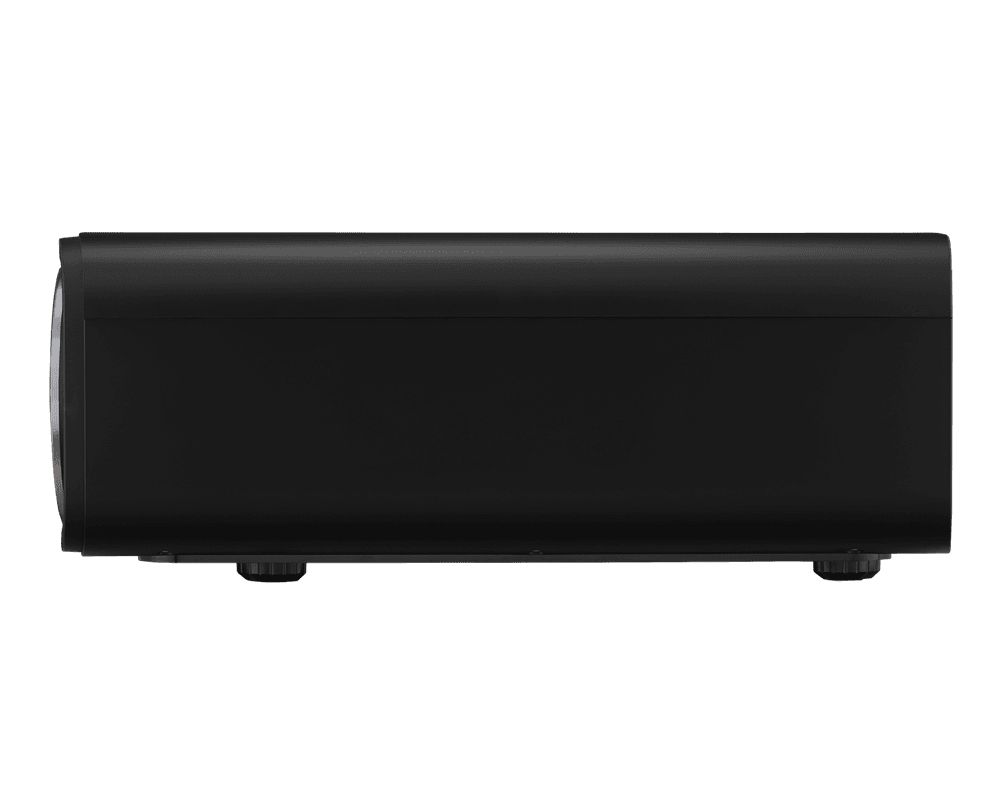

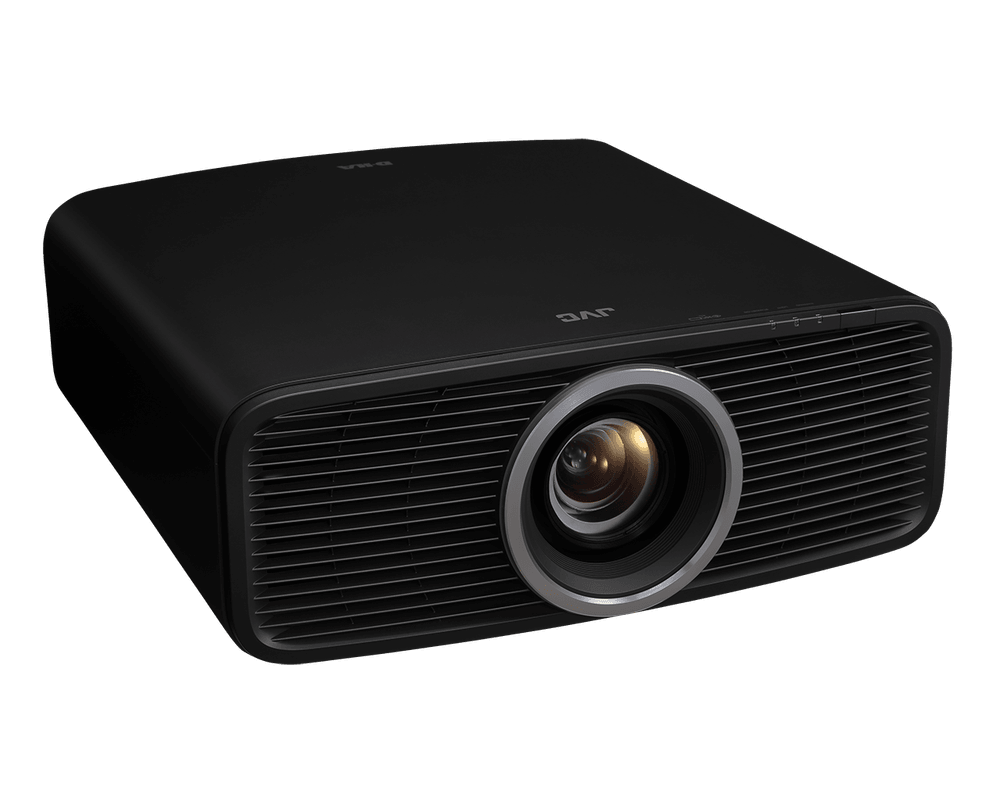

DLA-NZ500 by JVC. Native 4K 4,096 x 2,160 pixels.
Request a quoteTalk to the team that installs it in Greater Houston, TX. System design, screen matching and calibration included in the quote.
How we specify in Greater Houston
Residential and commercial work are both in scope here. Boardrooms need a signal path that survives a laptop swap, churches need throw distance that clears the platform, and homes want the rack out of sight. We design the system first, then choose the hardware that matches it. For the DLA-NZ500 specifically, we confirm the fit against your room in Greater Houston, TX before quoting the install.
Service area: Greater Houston, Downtown Houston, Greenway Plaza, The Galleria, Energy Corridor, Sugar Land, Pearland, Katy, The Woodlands.
Specifications
Device
| D-ILA Technology | Yes |
|---|---|
| Chip Type | 0.69-inch 4K D-ILA device |
| Native 4K | Yes |
| Native Resolution | 4096 x 2160 |
| Number Of Chips | 3 |
| Display Resolution | 4096 x 2160 |
Light Source
| Laser | Yes |
|---|---|
| Type | BLU-Escent Laser Diode |
| Life Time (Standard Mode) | 20000 hours |
| Brightness | 2000 lm |
|---|---|
| Dynamic Contrast | ∞ : 1 |
| Native Contrast | 40000 : 1 |
| Dynamic Light Power control | Yes |
| Modes | Low,High,Balance,Off |
| Manual Aperture | Yes |
| Range | -15 (stops down) to 0 (opens up) |
| 100% REC 709 | Yes |
| Color Bit Depth | 12 bit |
| ISFccc Certification | Yes |
HDR
| HDR10 | Yes |
|---|---|
| HDR10+ | Yes |
| Frame Adapt HDR | Yes |
| HLG | Yes |
| Mastering Info Display | Yes |
| Info data | MaxCLL, MaxFALL , DML |
| Deep Black Tone Control | Yes |
Lens
| Zoom | 1.6 x |
|---|---|
| Throw Ratio | 1.34 - 2.14 (16:9) 1.26 - 2.01 (17.9) |
| Diameter | 80 mm |
| Build | 15-element, 11-group. |
| Lens Shift | Yes |
| Range Horizontal | ± 28 % |
| Range Vertical | ± 70 % |
| Motorized Zoom | Yes |
| Motorized Shift | Yes |
| Motorized Focus | Yes |
| Projection Display size (diagonal) | 60 - 200 inch |
| Memory Function | Yes |
| Number of user presets | 5 |
| Lens Cover | Yes |
HDMI
| HDMI | Yes |
|---|---|
| Number of Inputs | 2 |
| Data Rate | 32 Gbps |
| HDCP Version | 2.3 |
| 4K60P signal input | Yes |
| Video Signal range | 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24 |
| PC Signal range | 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440 |
| Input Level Adjustment | Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255) |
| Color Space Range | Auto/ YCbCr444 / YCbCr422 / RGB |
| EDID Modes | Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings) |

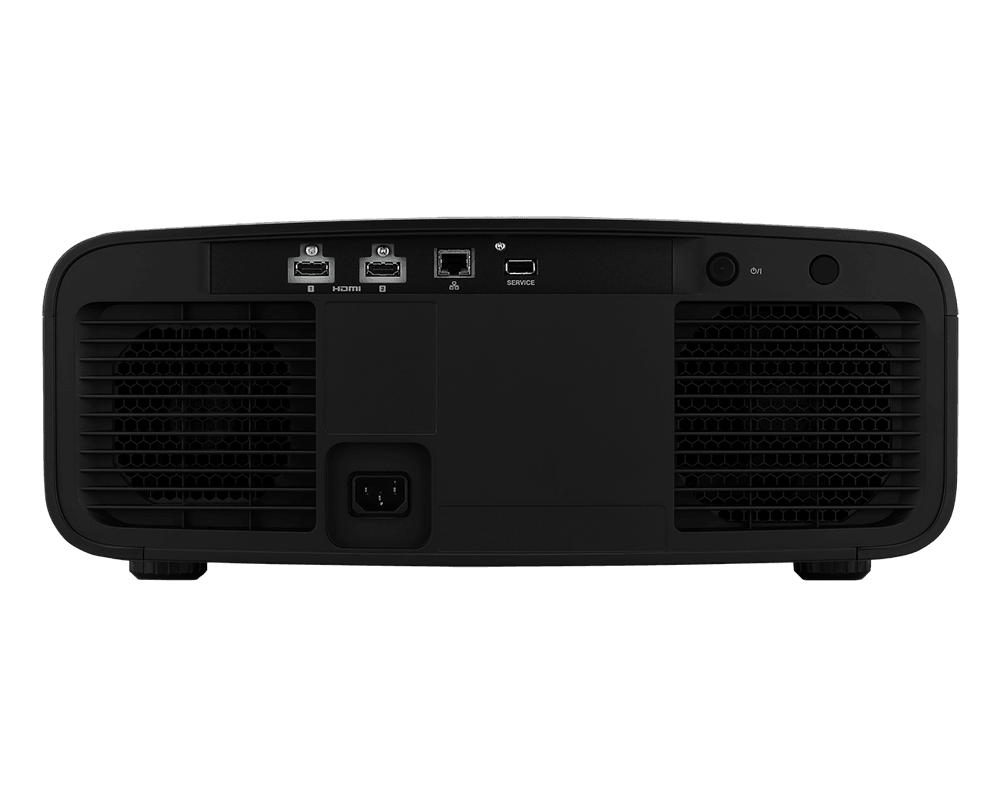

Connections
| LAN | Yes |
|---|---|
| Connector | RJ45 |
| Service | Yes |
| Connector | USB (Type A) for firmware update or backup |
Picture Settings
| Picture Modes | Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes |
|---|---|
| Color Temperatures | 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2 |
| Gamma Processing Depth | 12 bit |
| Gamma Adjust | HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes |
| Color Management | 6-Axis adjustable CMS |
| MPC | Yes |
| Filmmaker Mode | Yes |
| Auto Calibration | Yes |
| Installation Mode | Yes |
| Number of modes | 5 |
| Included settings | Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect |
| Anamorphic Modes | 4 Modes (A, B, C, D) |
| Control4 SDDP | Yes |
Power & Environment
| Power Requirement | AC100-240V, 50/60Hz |
|---|---|
| Projector in Use | 280W |
| Standby | Eco-mode: 0.3W |
| Network Standby | 1.5W (LAN) |
| Switchover time | Approx. 15 min. (To standby or networked standby; default) |
| Fan Noise | 23 dB |
| Eco Mode | Yes |
| Standby Timer | Yes |
| Operating Temperature | 5°C to 35°C |
| Operating Humidity | 20% to 80% |
| Installation Angle | Horizontal +/- 10 degree / Vertical +/- 10 degree |
| Installation Height | Below 2,000 m |
In the box
| Remote Control | Yes, RM-MH27 |
|---|---|
| Quick Guide | Yes |
| Power Cord | Yes |
| Batteries | Yes, 2 x AAA-size batteries |
Dimensions & Weight
| Product Dimensions (WxHxD) | 17-23/32 in x 7-5/32 in x 18-7/8 in |
|---|---|
| Product Weight | 32.2 lbs |
General Editing Note
| General Note: | Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice. |
|---|
Features
- Native 4K 4,096 x 2,160 pixels
- Compact Design
- Native 4K
- New BLU-Escent Laser
- Newly Designed fully Motorized 4K Lens
- Ultimate Dynamic range
- JVC Advanced Technology
- Convenient Features
- Compatible Products
