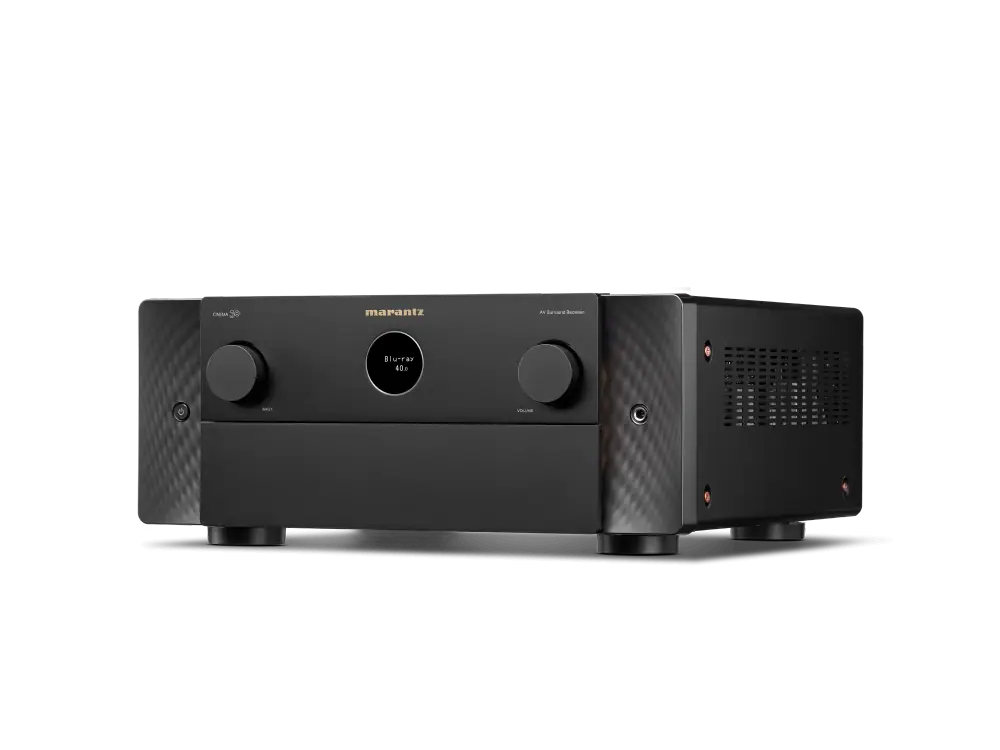

CINEMA 30
CINEMA 30 is the most refined AV receiver Marantz has ever created, redefining premium home theater sound. Engineered with proprietary technology optimized from decades of rich heritage, its 11.4 channels deliver unrivaled performance and can power even large-scale home theaters with ease. Its discrete HDAM SA-2 circuitry, dual-DAC digital-to-analog conversion, and a monolithic symmetrical amplifier elevate it to Marantz's highest performance level ever.
MPN: 300796-01-00-101
Request a quoteTalk to the team that installs it in Greater Houston, TX. System design, screen matching and calibration included in the quote.
How we specify in Greater Houston
Residential and commercial work are both in scope here. Boardrooms need a signal path that survives a laptop swap, churches need throw distance that clears the platform, and homes want the rack out of sight. We design the system first, then choose the hardware that matches it. For the CINEMA 30 specifically, we confirm the fit against your room in Greater Houston, TX before quoting the install.
Service area: Greater Houston, Downtown Houston, Greenway Plaza, The Galleria, Energy Corridor, Sugar Land, Pearland, Katy, The Woodlands.
Specifications
Power Amplifier
| Number of Powered Channels | 11 |
|---|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | - |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | yes |
| Bi-Amp Drive | assignable |
Multichannel Surround Technologies
| DTS | DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X |
|---|---|
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Max Number of Processing (Preamp) Channels | 13.4 |
| IMAX Enhanced | Yes |
| Auro 3D | Yes |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
Inputs Outputs
| Composite In / Out | 2 / 0 |
|---|---|
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out: Video / HDMI | No / Yes |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 2 / 0 |
| Subwoofer Out | 4 (independent) |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 13 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
| DAB+ Tuner | No |
| Analog In / Out | 6 / 0 |
| Multichannel Pre Out | Yes (13.4) |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB-A | No / No / No / No / Yes |
HDMI
| Total HDMI Inputs / No. Support 8K | 7 / 7 |
|---|---|
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Audio Return Channel | ARC, eARC |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes / No |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio over HDMI | 2-channel - 5.1-channel, 2.8 MHz |
| Auto LipSync | Yes |
| HDMI Inputs: Back / Front | 7 / - |
| Video Conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | 1080P/4K to 8K |
| HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out | 7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC | Yes / Yes / Yes / Yes |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes / Yes / No |
| 8K signal pass-through / scaling / GUI overlay | o / o / o |
| 4K Signal Pass-Through / Scaling / GUI Overlay | o / o / o |
| DSD Audio Capability | Yes |
Performance Technologies
| Copper Plated Chassis | Yes |
|---|---|
| Toroidal Power Supply Transformer | Yes |
| Hyper Dynamic Amplifier Modules (HDAM) | Yes |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
Acoustic Room Correction
| Audyssey | MultEQ XT32 |
|---|---|
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Dirac Live Support | Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| Dirac Live Upgradability | Yes |
Music File Support
| Lossy Formats | MP3 / WMA / AAC |
|---|---|
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
| DSD Audio | 2.8 MHz / 5.6 MHz |
| Gapless Playback | FLAC, WAV, ALAC, DSD |
| Compressed Audio Enhancer: MDAX2 | Yes |
| Network Audio Sharing | Yes |
Streaming Services
| HEOS Multi-room and Streaming | Yes |
|---|---|
| AirPlay Audio Streaming | AirPlay 2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
| Roon tested | Yes |
Network Connectivity
| Ethernet Ports | Yes |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes (with volume control) |
Smart Home Integration and Control
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
|---|---|
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR Remote |
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes /Yes |
| Multi-Room zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
Others
| Front Display | 2 line FLD + port hole OLED |
|---|---|
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
| GUI Overlay on HDMI | Yes |
| CEC | Yes |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 / Dirac Live (upgrade) |
| Graphic User Interface - GUI | Modern HD GUI |
| Smart Select | Yes |
General
| Available Colors | Black/Silver-Gold |
|---|---|
| Metal Front Panel | Yes |
| System Remote Control | RC-051SR |
| Power Consumption in W | 780 |
| Power Consumption No-Sound (ECO on/off) in W | 65 W / 110 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord |
| Weight in lbs. | 42.8 |
| Maximum Dimensions: Antenna: Horizontal: (W x D x H) in inches Antenna: Vertical: (W x D x H) in inches w/o Antenna: (W x D x H) in inches | 17.4 x 18.0 x 7.5 17.4 x 18.0 x 10.2 17.4 x 17.6 x 7.5 |
Features
- Crafted in Shirakawa, Japan
- 11.4 Channels
- 140 Watts per Channel
- 7 HDMI Inputs plus eARC
- 8K & Dolby Atmos
- HEOS Built-in
- 5 Year Warranty
