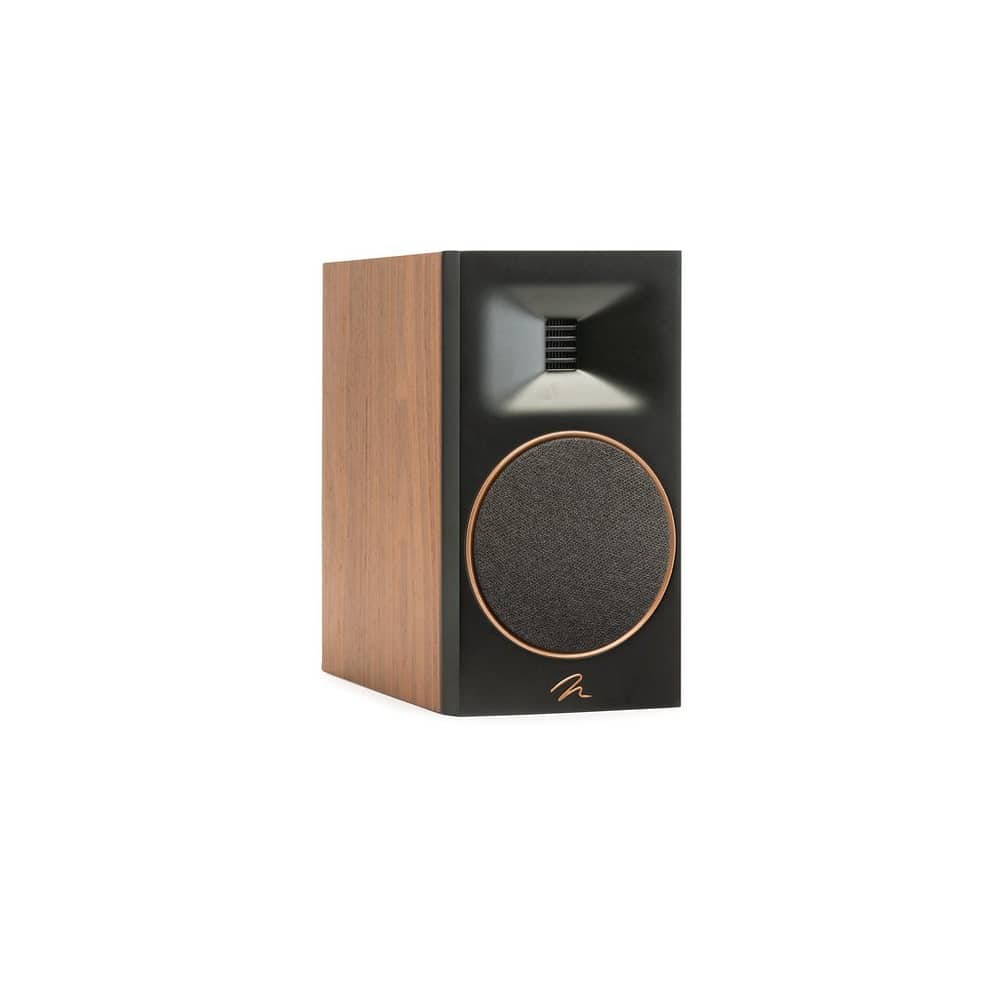

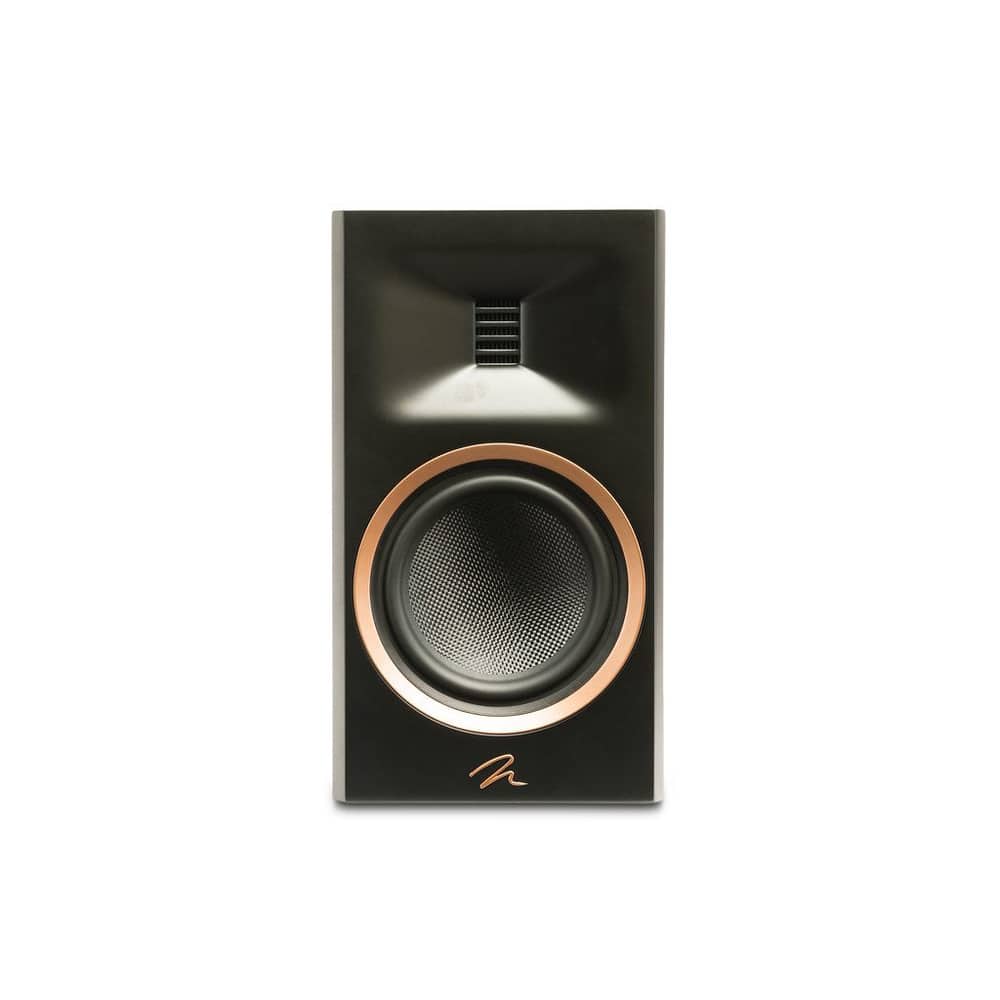

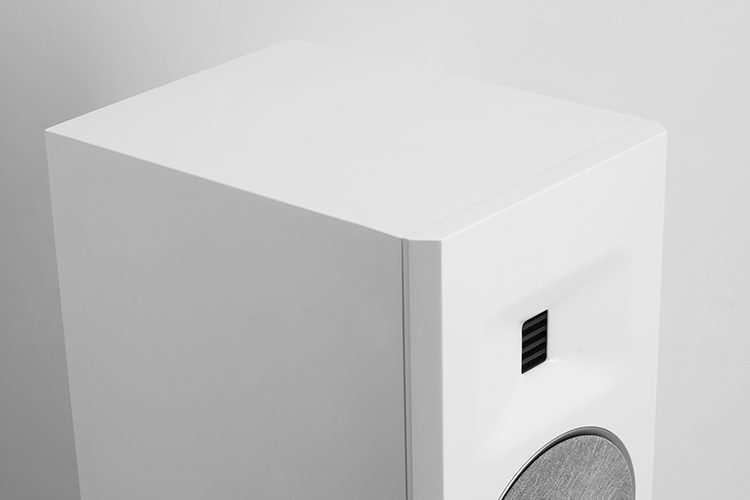

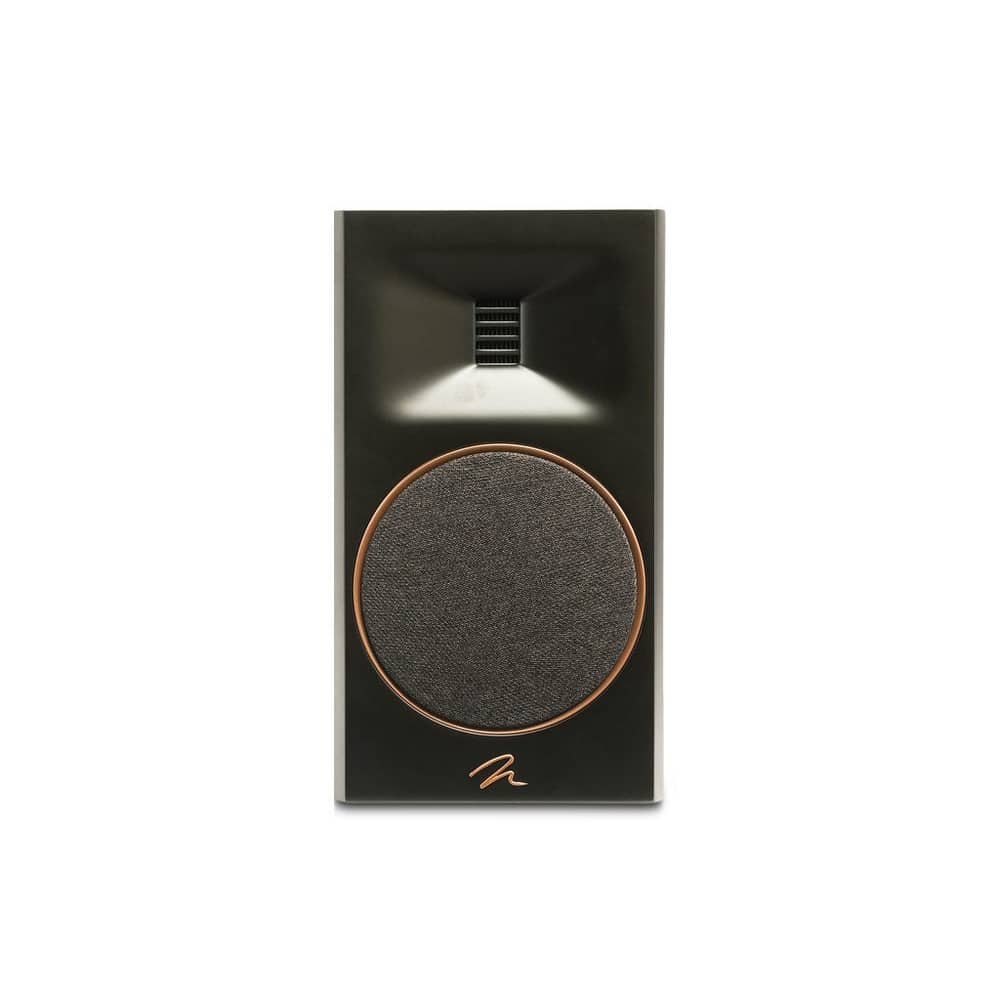

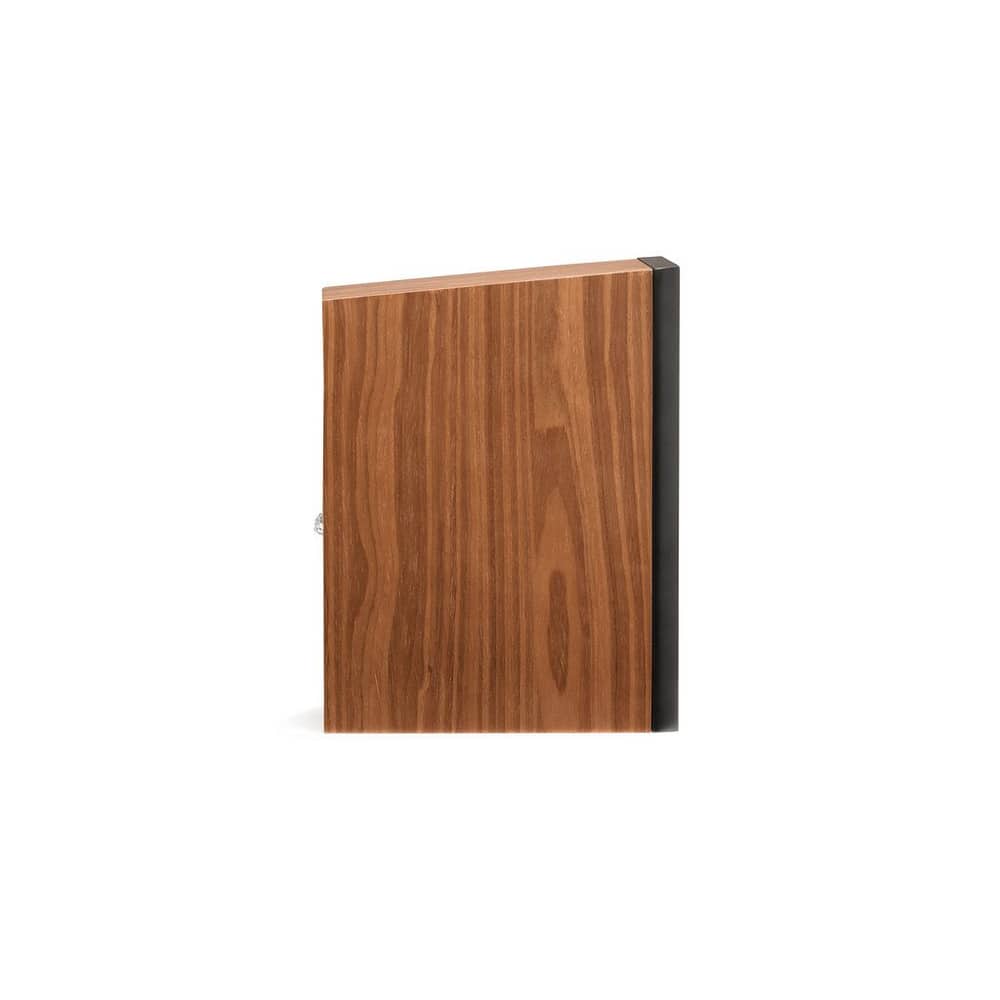

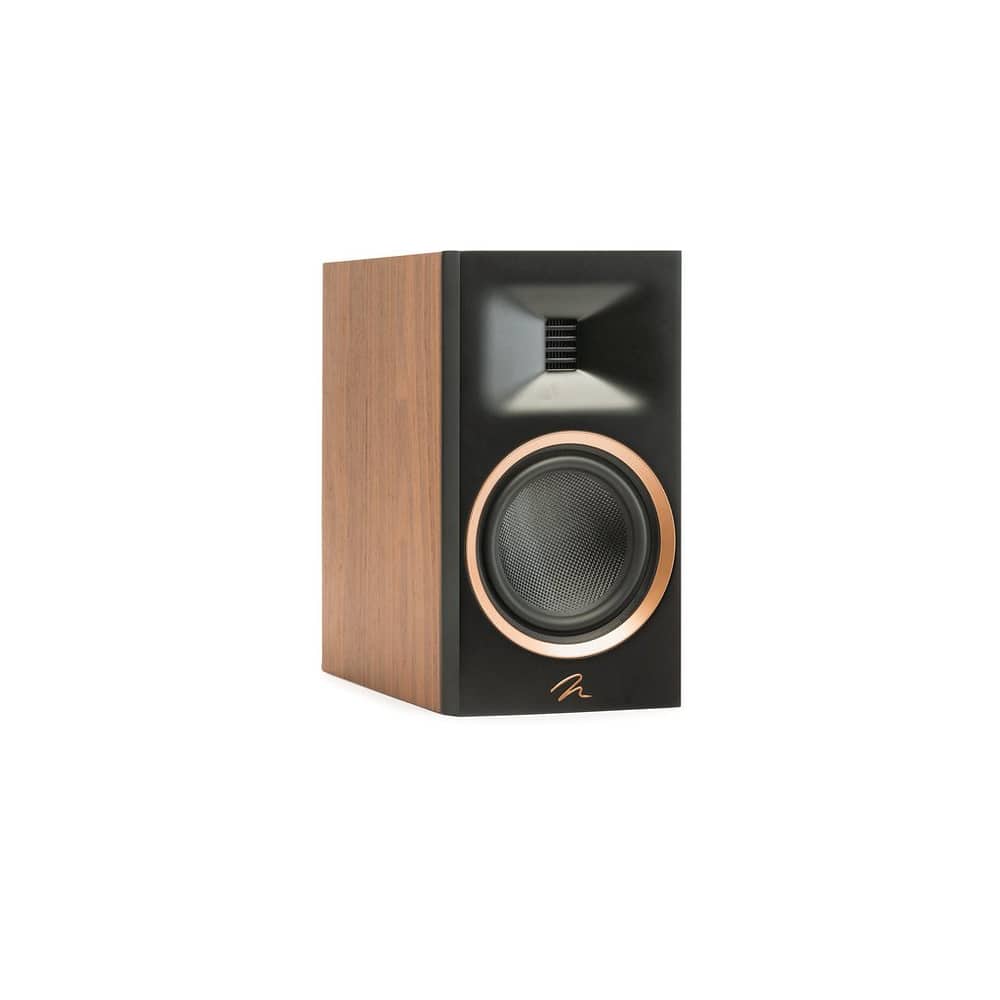

Motion B10
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
How we specify in Greater Houston
Residential and commercial work are both in scope here. Boardrooms need a signal path that survives a laptop swap, churches need throw distance that clears the platform, and homes want the rack out of sight. We design the system first, then choose the hardware that matches it. For the Motion B10 specifically, we confirm the fit against your room in Greater Houston, TX before quoting the install.
Service area: Greater Houston, Downtown Houston, Greenway Plaza, The Galleria, Energy Corridor, Sugar Land, Pearland, Katy, The Woodlands.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 12-1/2" x 7" x 9-3/4"; 31.8cm x 17.8cm x 24.8cm |
|---|---|
| Frequency Response | 56 Hz - 25 kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 90° |
| Recommended Amplifier Power | 20 - 200 watts |
| Sensitivity | 92 dB |
| Impedance | 5 ohms |
| Crossover Frequency | 2,370 Hz (2-way) |
| High Frequency Driver | 1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm |
| Mid-Frequency Drivers | 5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non- resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Rear Ported |
| Binding Post Inputs | Custom 5-way binding posts |
| Weight | 14.5lbs / 6.6kg |

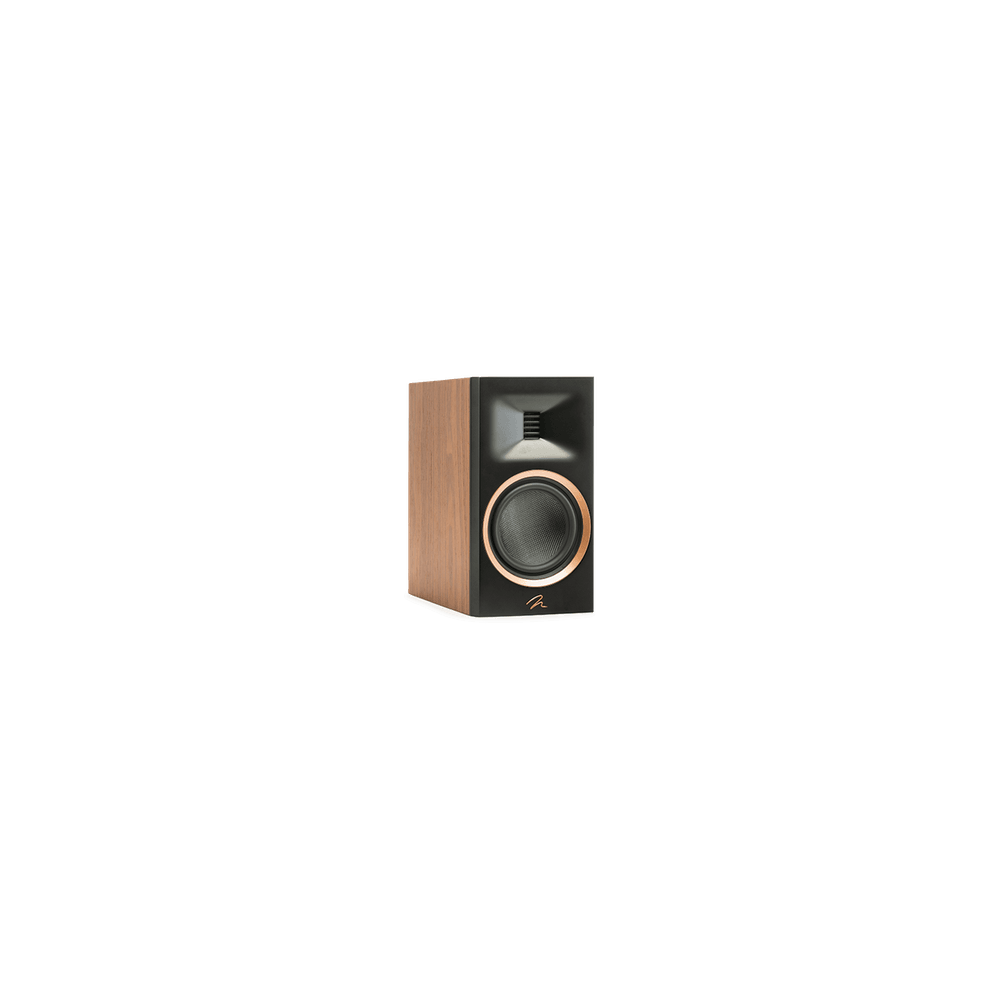

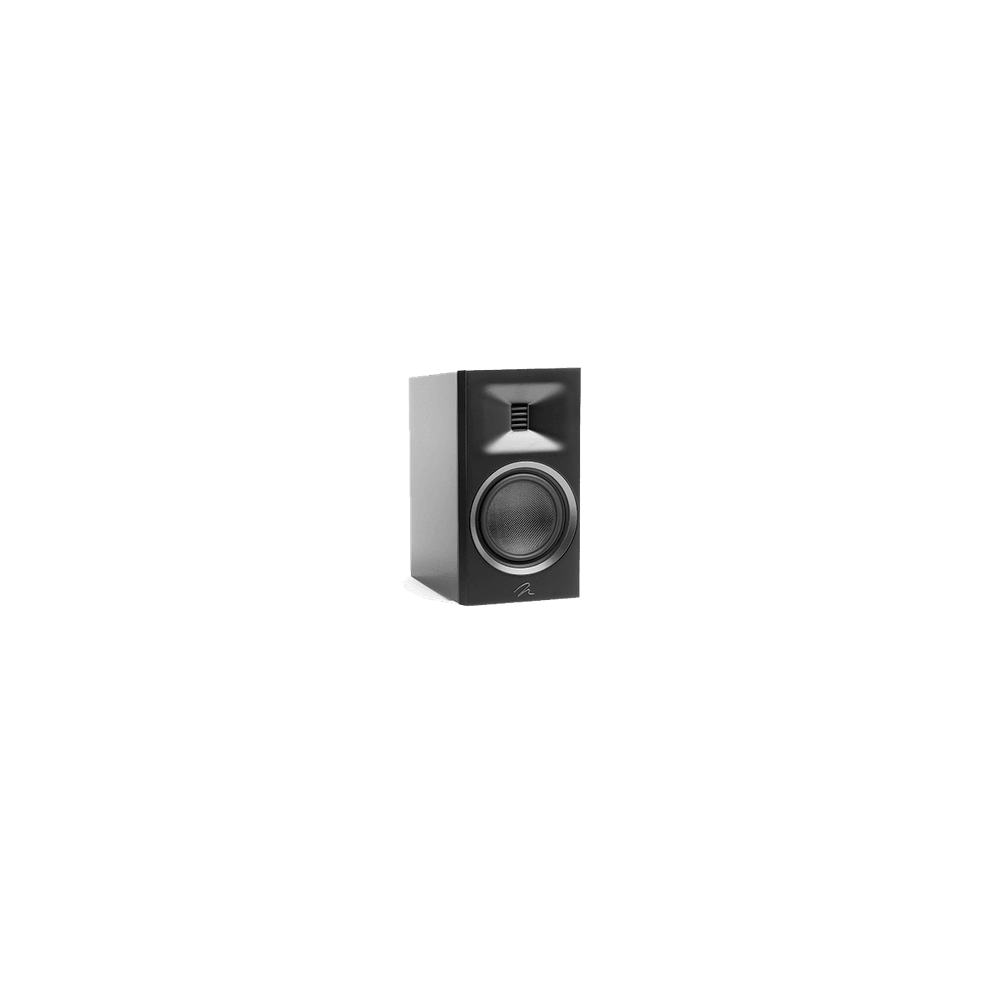

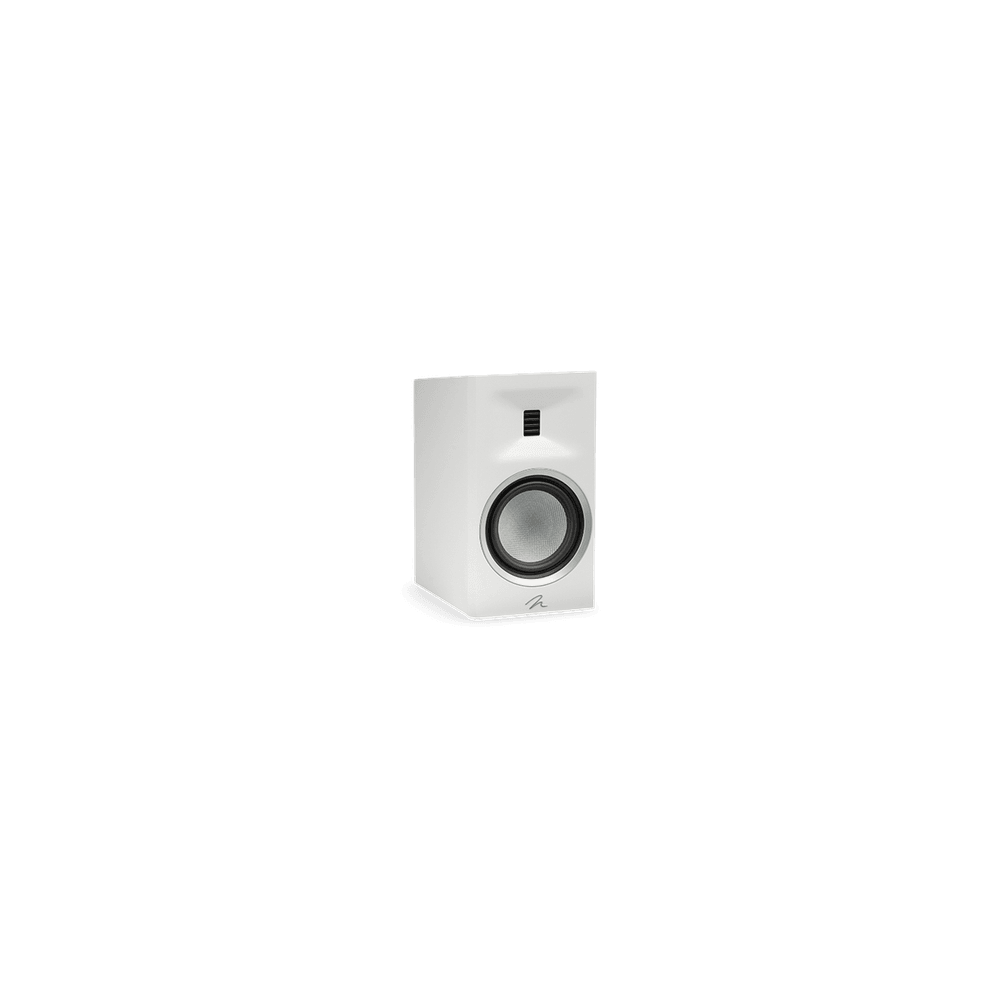

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound
- Gen2 Obsidian Folded Motion Tweeter
- Folded Motion Waveguide
- Woven-Fiberglass Midrange

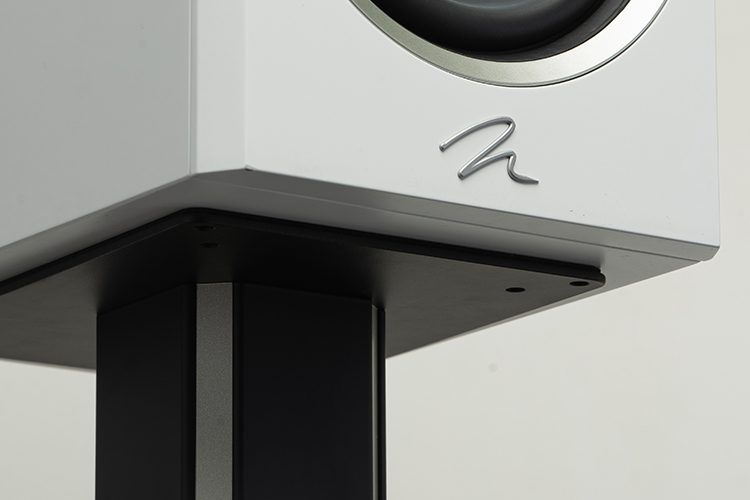

- Stand25
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Greater Houston, TX, then quote the install.
