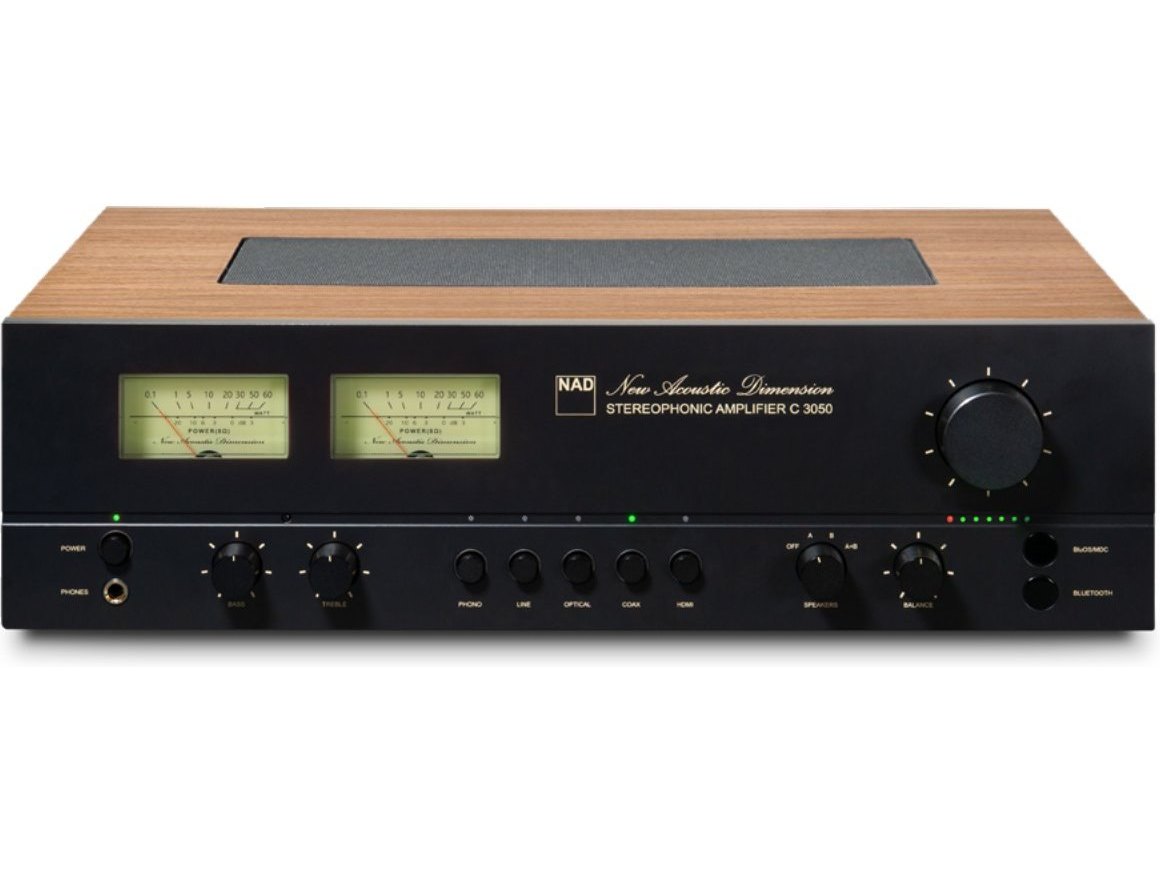

NAD BlueOS Hybrid Digital Amplifier

Name: BlueOS Hybrid Digital Amplifier
Brand: NAD

Equipment Sales & Professional Installation

MPN: C 3050

Specifications

Signal-to-Noise Ratio	>95 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel separation	>100 dB (1 kHz)
Input impedance (R and C)	28 kohms + 360 pF
Maximum input signal	>4.5 Vrms (ref. 0.1 % THD)
Output impedance	440 ohms
Input sensitivity	270 mV (ref. 500 mV out, Volume maximum)
Frequency response	+/-0.3 dB (20 Hz - 20 kHz)
Maximum voltage output -IHF load	>2 V (ref. 0.1 % THD)
Signal-to-Noise Ratio	>79 dB (200 ohms source; A-weighted, ref. 500 mV out)
Input Impedance (R and C)	46 kohms/100 pF
Input sensitivity	5.5 mV (ref. 500 mV out, Volume maximum)
Frequency response	+/-0.3 dB (20 Hz - 20 kHz)
Maximum input signal at 1kHz	>80 mVrms (ref. 0.1 % THD)
Signal-to-Noise Ratio	>96 dB (32 ohms loads; A-WTD, ref. 2 V out, unity gain
Frequency response	+/-0.3 dB (20 Hz - 20 kHz)
Channel separation	>60 dB at 1kHz
Output impedance	Output impedance
Signal-to-Noise Ratio	>95dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power	>115 W (at 1 kHz 0.1 % THD)
IHF dynamic power	8 ohms: 180 W
Peak output current	>20A (in 1 ohm, 1 ms)
Frequency response	+/-0.3 dB (20 Hz - 20 kHz)
Channel separation	>75dB (1 kHz)
Input sensitivity (for 100 W in 8 ohms)	540 mV Digital: -6dBFS
Power consumption - at Auto Standby ON and Network Standby OFF	0.5 W*
Power consumption - at Auto Standby ON and Network Standby ON	2.0 W**
Power consumption - OFF mode (Power switched OFF)	0.1 W
Frequency band	2.402G- 2.480G

Supported audio file format	MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Supported high- resolution audio file format	FLAC, MQA, WAV, AIFF
Sampling rate	up to 192 kHz
Bit depths	16 - 24

Music Services	Click here
Internet Radio	Click here
Integration partners	Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC
Voice Control	Skills and support for Amazon Alexa and Apple's Siri with corresponding enabled devices and App

Network connectivity	Gigabit Ethernet RJ45
Supported network file share protocol	Server Message Block (SMB)
USB	1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
Bluetooth quality	aptX HD 5.0
Bluetooth connectivity	Two-Way (Receive and Headphone modes)

Supported operating system	Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
Mobile Application	Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
