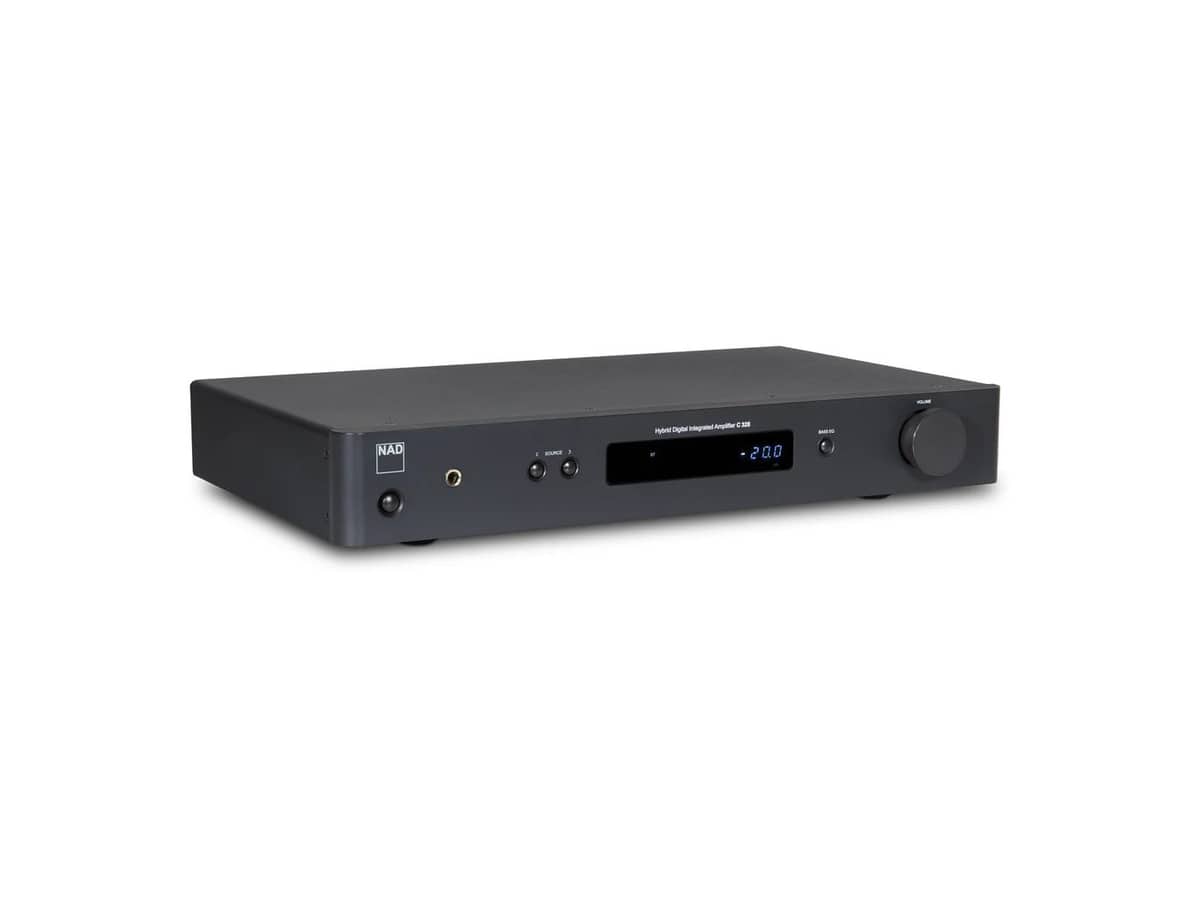

NAD Hybrid-Digital DAC Amplifier
Equipment Sales & Professional Installation
MPN: C328
- 50 watts per channel HybridDigital
- High-performance DAC
- MM phono input
- Bluetooth streaming
- Headphone amplifier
- Subwoofer output
- Eco mode and low power
Specifications
Analogue In/Headphone Out
| Continuous output power into 8 Ohms and 4 Ohms | 50W (ref. 20 Hz-20 kHz at rated THD, both channels driven) |
|---|
THD (20 Hz - 20 kHz)
| Signal-to-Noise Ratio | >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain) |
|---|---|
| Frequency response | +/-0.3 dB (20 Hz - 20 kHz) |
| Output impedance | 11 ohms |
| Signal-to-Noise Ratio | >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain) |
| Frequency response | +/-0.2 dB (20 Hz - 20 kHz) |
| Output impedance | 200 ohms |
| Signal-to-Noise Ratio | >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms) |
| Frequency response | +/-0.3 dB (20 Hz - 20 kHz) |
| Signal-to-Noise Ratio | >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms) |
| Frequency response(RIAA deviation) | +/-0.3 dB (20 Hz - 20 kHz) |
Power consumption
| at ECO Standby mode | 0.5 Watts* |
|---|---|
| at Control Standby mode | 0.6 Watts** |
| OFF mode (Power switched OFF) | 0 Watts |
Dimensions & Weight
| Gross dimensions (W x H x D) | 435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4") |
|---|---|
| Net weight | 4.9 kg (10.8 lbs) |
| Shipping weight | 5.9 kg (13.0 lbs) |
