NADseparates

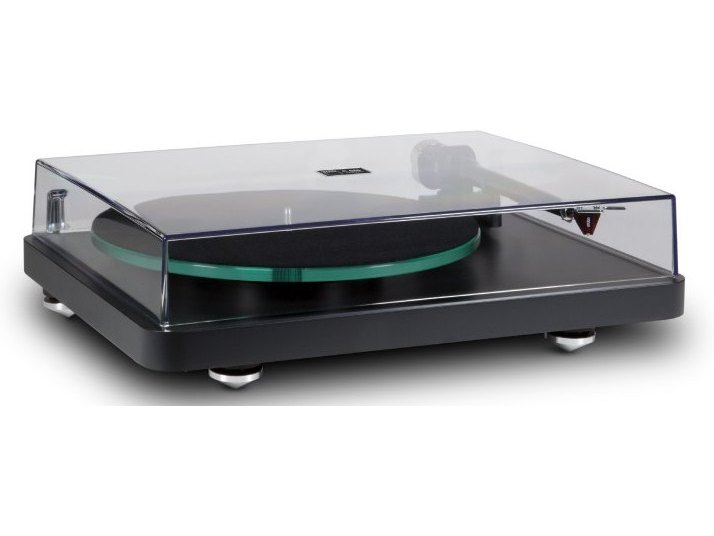

NAD C588
Equipment Sales & Professional Installation
MPN: C588
- Belt-drive with regulated speed
- Carbon fibre 9-inch tonearm
- Adjustable VTA
- Ortofon 2M Red cartridge
- Milled aluminium sub-platter
- Glass platter
- Solid MDF plinth
Specifications
GENERAL SPECIFICATIONS
| Nominal speed | 33/45 rpm, manual speed change (78 rpm possible with special pulley |
|---|---|
| Speed variance | 33 rpm: |
Wow and flutter
| Signal/Noise ratio | - 70 dB |
|---|---|
| Downforce range | 0 - 30 mN 0 - 3.0 grams |
| Supplied counterweight system | 95dB |
| Supplied counterweight system | Counterweight for cartridges: 6 - 13 g |
| Voltage | Universal switch mode power supply 15 V DC/0,8 A, 100-240 V AC, 47 - 63Hz |
| Power consumption | 5 W max/ 0.3W standby |
TONEARM
| Effective tonearm mass | 9.5 g |
|---|---|
| Effective tonearm length | 230 mm |
| Overhang | 18 mm |
ORTOFON 2M RED CARTRIDGE
| Frequency range | 20-22.000Hz |
|---|---|
| Channel separation | 22dB/1kHz |
| Output voltage | 5.5 mV |
| Recommended load impedance | 47 kohms/Amplifier connection: MM-input |
| Compliance/stylus type | 20m/mN - elliptical |
| Recommended tracking force | 18 mN |
| Weight | 7.2g |
DIMENSIONS AND WEIGHT
| Gross Dimensions (W x H X D) | 17 1/8 x 13 7/16 x 4 15/16" (435 x 340 x 125mm) |
|---|---|
| Shipping Weight | 9.2 kg(20.3 lbs) |
