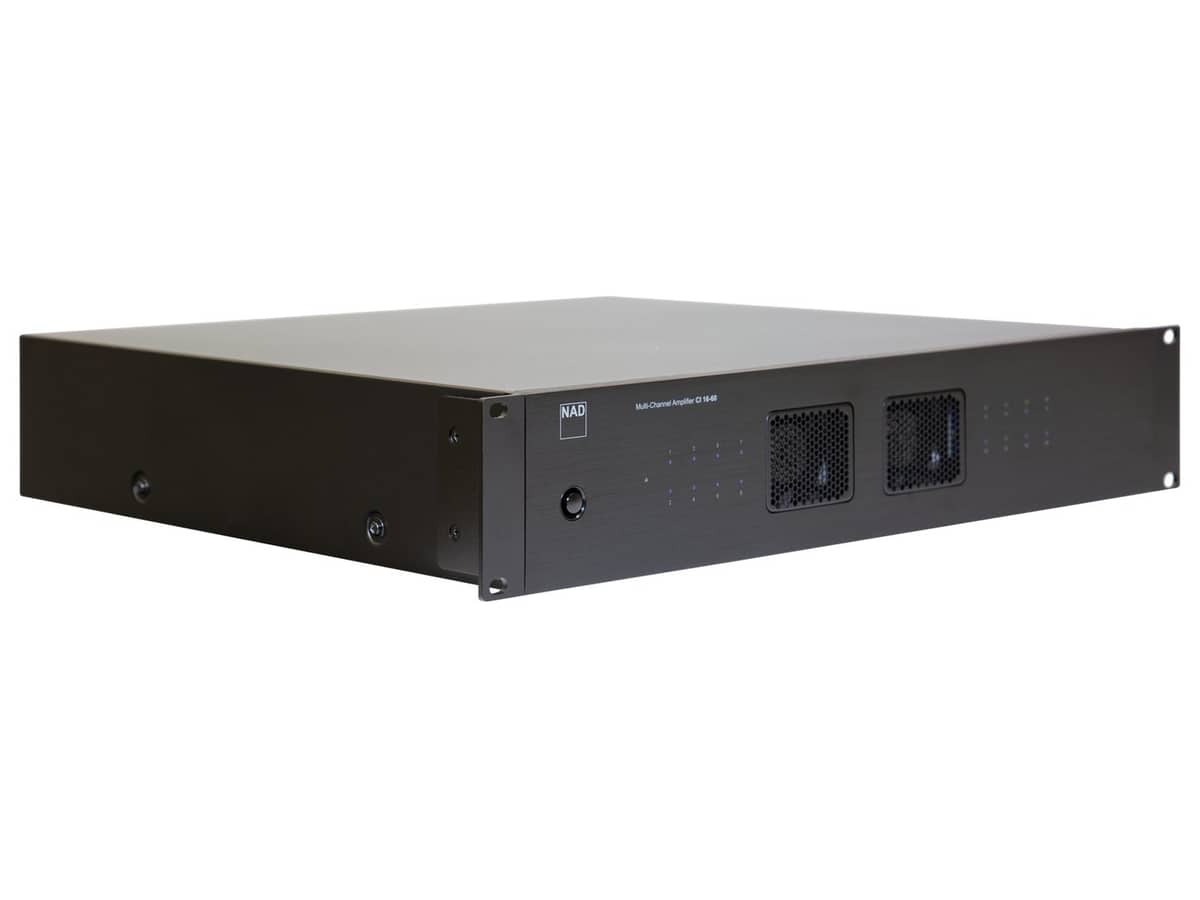

NAD CI 16-60
Equipment Sales & Professional Installation
MPN: CI 16-60
- 16 channels of amplification
- 60 watts per channel
- HybridDigital amplification
- Bridgeable channel pairs
- Rack-mount chassis
- Line-level inputs
- Trigger and control options
Specifications
GENERAL
| Continuous output power into 8 ohms | 60 W (all channels driven, 1kHz 0.05% THD |
|---|---|
| into 4 ohms | 65 W (all channels driven, 1kHz 0.05% THD |
| Continuous output power into 8 ohms at Bridged mode | 140 W (all channels driven, 1kHz 0.05% THD |
| THD (1 W to 50 W, 8 ohms and 4 ohms) | 0.05 % (20 Hz - 3 kHz) |
| Signal-to-Noise Ratio | 80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) |
| Clipping power (all channels driven) | 60 W (1 kHz 8 ohms 1 % THD) |
| Clipping power into 8 ohms at Bridged mode | 150 W (1 kHz 1 % THD - all channels driven) |
| IHF Dynamic Power (all channels driven) | 8 ohms: 65 W |
| IHF Dynamic Power (two channels driven) | 8 ohms: 70 W |
| IHF dynamic power (Bridged mode, all channels driven) | 8 ohms: 270 W |
| IHF Dynamic Power (two channels driven) | 8 ohms: 280 W |
| Peak output current | 15 A (1 ohm, 1 ms) |
| Damping factor | 110 (20 Hz to 1 kHz 8 ohms) |
| Frequency response | +/-1dB (20 Hz - 20 kHz) |
| Channel separation | 60 dB (1 kHz) |
| Maximum undistorted input level | 2900 mV |
| Input sensitivity (for 50 W in 8 ohms, maximum volume) | 760 mV |
| Input impedance | 20 kohms//220pF |
| Analog input audio sense threshold (one channel with signal) | 3 +/- 0.5 mVrms (ref. 100 Hz - 10 kHz) |
| Trigger IN level | 3 - 30 Vdc |
| Standby power | 0.5W |
DIMENSION AND WEIGHT
| Gross dimensions (W x H x D)* | 483x100x435mm |
|---|---|
| Net Weight | 10.3 kg (22.7 lbs) |
| Shipping Weight | 12.8 kg (28.2 lbs) |
