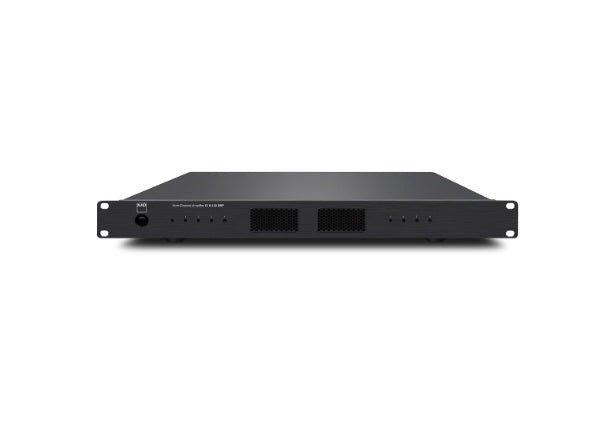

NAD CI 8-120

Equipment Sales & Professional Installation

MPN: CI 8-120

8 channels of HybridDigital amplification with custom Hypex UcD output stages
120 watts per channel Full Disclosure Power, Continuous into 8 ohms, all channels running.
Setup and configuration via intuitive webUI.
Integrated DSP for system optimisation
Compact 1U Rack-mount chassis
Line-level inputs for flexible system integration Automation and trigger support for system control Engineered for reliable, long-term operation
Bridgeable channel pairs for increased output where required

Specifications

Continuous Output Power into 8 Ohms	>120 W (all channels driven)
Continuous output power into 4 ohms	>135 W (all channels driven)
Continuous output power into 8 ohms at Bridged mode	>200 W (all channels driven)

Signal-to-Noise Ratio	>88 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (all channels driven)	>130 W (1 kHz 8 ohms 0.1 % THD)
Clipping power into 8 ohms at Bridged mode	>300 W (1 kHz 0.1 % THD - all channels driven)
IHF dynamic power (all channels driven)	8 ohms: 125 W
IHF dynamic power (two channels driven)	8 ohms: 145 W
IHF dynamic power (Bridged mode, all channels driven)	8 ohms: 440 W
IHF dynamic power (Bridged mode, two channels driven)	8 ohms: 480 W
Peak output current	>20 A (1 ohm, 1 ms)
Damping Factor	>110 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency Response	+/-0.5 dB (20 Hz - 20 kHz)
Channel separation	>70 dB (1 kHz)
Maximum undistorted input level	2900 mV
Input sensitivity (for 120 W in 8 ohms, maximum volume)	1150 mV
Analog Input audio sense threshold (one channel with signal)	3 +/- 0.5 mVrms (ref. 100 Hz - 10 kHz)
Trigger IN level	3 - 30 Vdc
Standby power	0.5W
