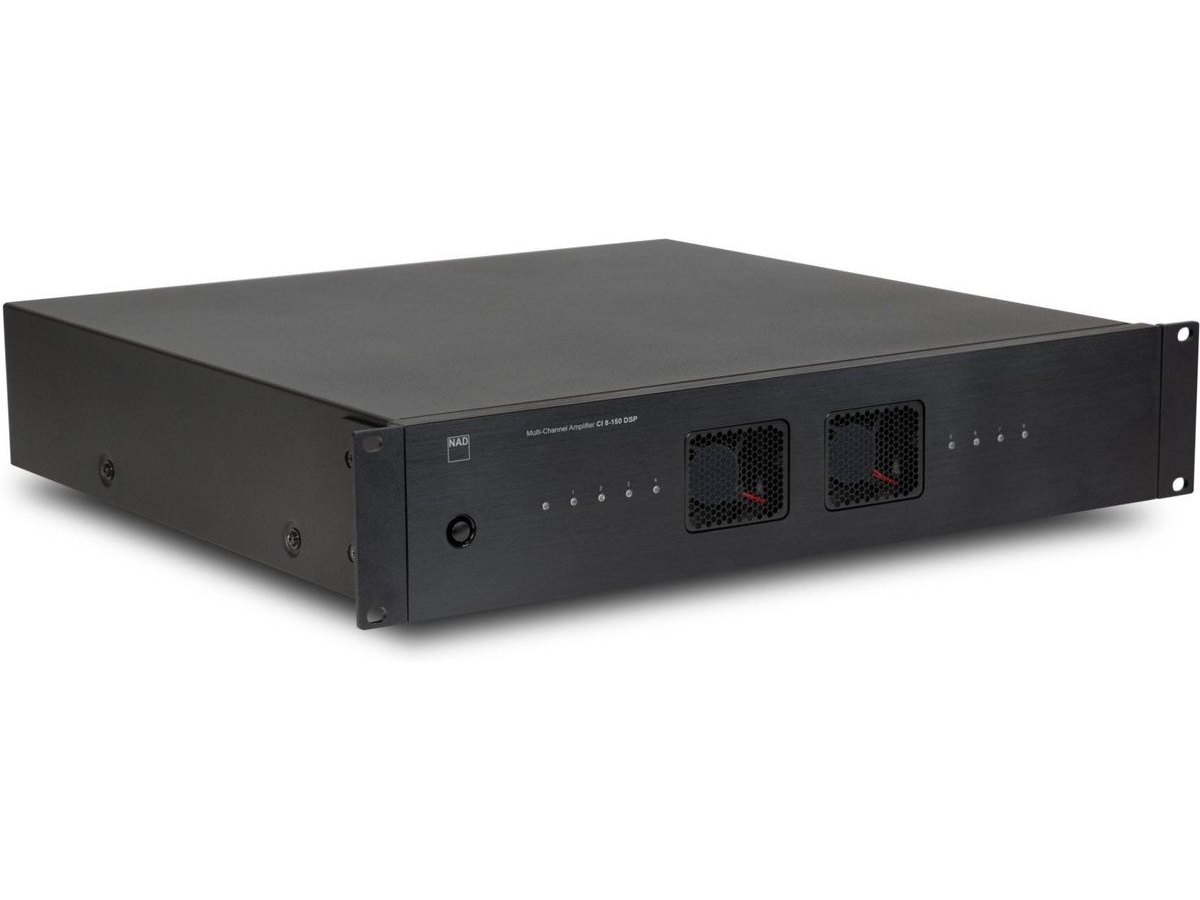

NAD CI 8-150
Equipment Sales & Professional Installation
MPN: CI 8-150
- 8 channels HybridDigital
- 150 watts per channel
- Bridgeable channel pairs
- Integrated DSP
- Compact 1U rack-mount
- Line-level inputs
- Trigger and control options
Specifications
GENERAL
| Continuous output power into 8 ohms | 150 W (ref. 20 Hz-20 kHz at rated THD - all channels driven) |
|---|---|
| Continuous output power into 4 ohms | 180 W (ref. 20 Hz-20 kHz at rated THD - all channels driven) |
| Continuous output power into 8 ohms at Bridged mode | 280 W (ref. 20 Hz-20 kHz 0.02% THD - all channels driven) |
| THD (20 Hz - 20 kHz) | 0.02% (1 W to 120 W, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio | 90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) |
| Clipping power (All channels driven) | 160W(1kHz8ohms 0.1%THD) |
| Clipping power into 8 ohms at Bridged mode | 300 W (1 kHz 0.1 % THD - all channels driven) |
| IHF Dynamic Power (all channels driven) - 8 Ohms | 180W |
| IHF Dynamic Power (all channels driven) - 4 Ohms | 280W |
| IHF Dynamic Power (two channels driven) - 8 Ohms | 200W |
| IHF Dynamic Power (two channels driven) - 4 Ohms | 360W |
| IHF Dynamic Power (Bridged mode, All channels driven) - 8 Ohms | 520W |
| IHF Dynamic Power (Bridged mode, All channels driven) - 4 Ohms | 670W |
| IHF Dynamic Power (Bridged mode, Two channels driven) - 8 Ohms | 600W |
| IHF Dynamic Power (Bridged mode, Two channels driven) - 4 Ohms | 800W |
| Peak output current | 26A(1ohm,1ms) |
| Damping Factor | 150 (ref. 8 ohms, 20 Hz to 6.5 kHz) |
| Frequency Response | +/-0.5dB(20Hz-20kHz) |
| Channel Seperation | 75 dB (1 kHz) |
| Maximum undistorted input level | 3300 mV |
| Input sensitivity (for 150 W in 8 ohms, maximum volume) | 1450 mV |
| Analog Input audio sense threshold (one channel with signal) | 3 +/- 0.5 mVrms (ref. 100 Hz - 10 kHz) |
| Trigger IN level | 3-30Vdc |
| Standby power | 0.5 W |
DIMENSION AND WEIGHT
| Gross dimensions (W x H x D)* | 483x90x435mm |
|---|---|
| Shipping Weight | 17.6 kg (38.8 lbs) |
