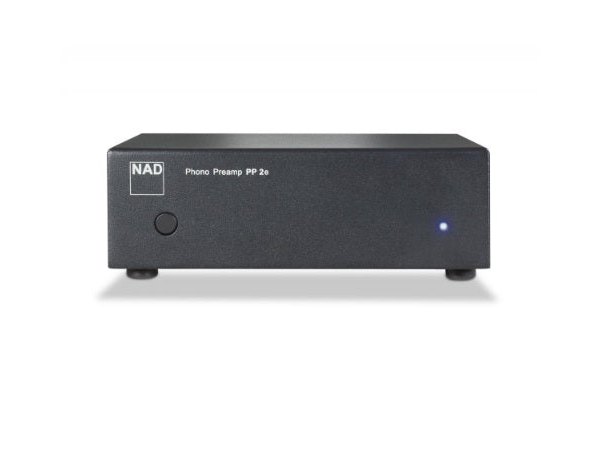

NAD Phono Preamplifier
Equipment Sales & Professional Installation
MPN: PP2e
- Low-noise phono stage
- MM and MC support
- Precision RIAA equalisation
- External 24V supply
- Gold-plated sockets
- Compact design
- Auto power down
Specifications
MC
| Input Impedance (R and C) | 100 Ohm + 180pF |
|---|---|
| Gain at 1kHz | 60dB |
| Input Sensitivity (ref. 200mV output) | 0.3mV |
| Signal to Noise Ratio | 78dB (A weighted, with cartridge connected) |
| Input Overload (20Hz/1kHz/20kHz) | 0.8/9/84mV |
Rated Distortion (THD 20Hz - 20kHz)
| RIAA Response Accuracy | +/-0.3dB |
|---|---|
| RIAA response accuracy | +/-0.3dB |
MM
| Input Impedance (R and C) | 47 kilohm + 200pF |
|---|---|
| Gain at 1kHz | 35dB |
| Input sensitivity (ref. 200mV output) | 2.5mV |
| Signal to Noise Ratio | 80dB (A weighted, with cartridge connected) |
| Input overload (20Hz/1kHz/20kHz) | 10/102/950mV |
Line Out
| Output Impedance | 100 Ohm |
|---|---|
| Maximum Output Level | 5.3V |
General Specifications
| AC Supply | External 23.5V DC |
|---|---|
| Dimensions excl. Power supply (W x H x D) | 135 x 49 x 72mm 5 5/16 x 1 15/16 x 2 7/8" |
