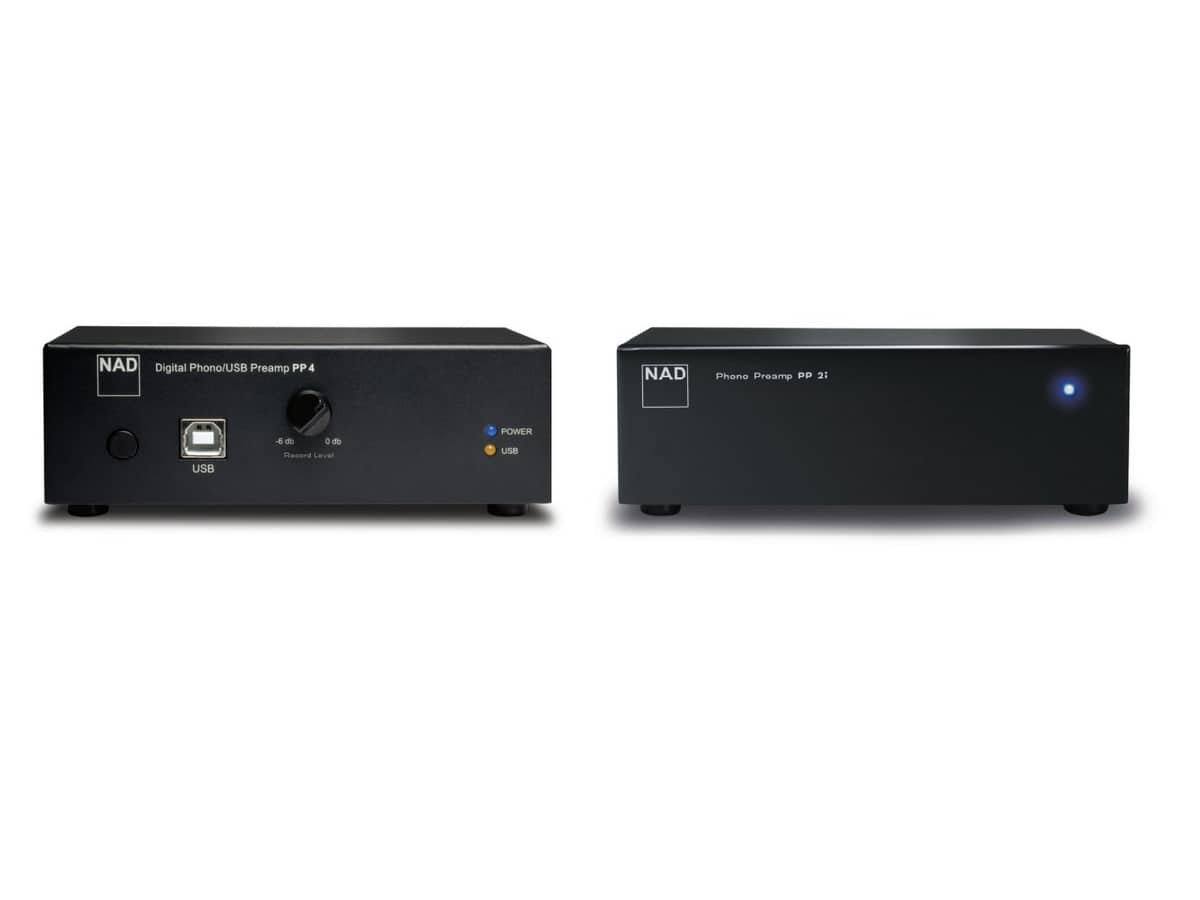

NAD Digital Phono USB Preamplifier
Equipment Sales & Professional Installation
MPN: PP4
- MM and MC support
- USB output for transfers
- VinylStudio Lite included
- Adjustable recording level
- Line input for cassettes
- Shielded USB cable
- Auto power down
Specifications
MC
| Input Impedance (R and C) | 100 Ohm + 180pF |
|---|---|
| Gain at 1kHz | 58dB |
| Input sensitivity (ref. 200mV output) | 0.38mV |
| Signal to noise (A weighted, with cartridge connected) | 78dB |
| Input overload (20Hz/1kHz/20kHz) | 0.65/6.5/60mV |
Rated Distortion (THD 20Hz - 20kHz)
| RIAA response accuracy | +/-0.3dB |
|---|---|
| Infrasonic filter | -14dB (5Hz) |
| Digital output (USB) | 16 bit linear PCM |
| Sampling frequency | 48kHz |
| Dynamic range | 86dB |
| RIAA response accuracy | +/-0.3dB |
| Infrasonic filter | -14dB (5Hz) |
| Digital output (USB) | 16 bit linear PCM |
| Sampling Frequency | 48kHz |
| Dynamic range | 89dB |
| Record Level | 0dB to -6dB |
| Gross Dimensions excl. Power supply (W x H x D)* | 135 x 49 x 72mm 5 5/16 x 1 15/16 x 2 7/8"** |
| Signal to noise, A weighted | -115dB |
| Maximum Input Level | 5.3V |
MM
| Input Impedance (R and C) | 47 kilohm + 200pF |
|---|---|
| Gain at 1kHz | 35dB |
| Input sensitivity (ref. 200mV output) | 5mV |
| Signal to noise (A weighted, with cartridge connected) | 76dB |
| Input overload (20Hz/1kHz/20kHz) | 10/100/900mV |
Line In
| Input Impedance | 47 kilohm + 180pF |
|---|
Line Out
| Output Impedance | 100 Ohm |
|---|---|
| Maximum Output Level | 5.3V |
