Planarvideo-walls

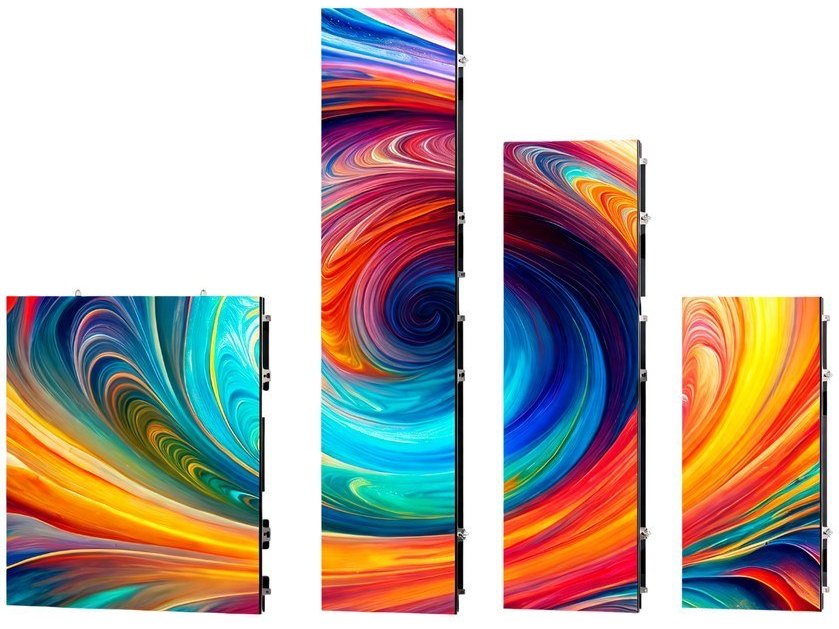

Planar Mosaic Series
Equipment Sales & Professional Installation
- Indoor architectural LED displays
- Four cabinet sizes for custom shapes
- 1.2 to 3.9mm pixel pitches
- Negative-space creative layouts
- Front-serviceable, power-efficient
- High Brightness up to 3,000 nits
- 2-year warranty
Specifications
Display
| Type | Indoor architectural LED |
|---|---|
| Pixel Pitches | 1.2, 1.5, 1.9, 2.6 and 3.9mm |
| Brightness | 600 nits standard; 3,000 nits High Brightness |
| Contrast Ratio | 6,000:1 standard; 30,000:1 High Brightness |
| LED Type | SMD |
| Viewing Angle | ≥160° horizontal, ≥140° vertical |
General
| Cabinet Sizes | 500 x 250, 500 x 500, 750 x 250 and 1000 x 250mm |
|---|---|
| Cabinet Depth | 39.5mm (1.56in) |
| Module Size | 250 x 250mm |
| Orientation | Vertical or horizontal cabinets |
| Serviceability | Front-serviceable |
| Warranty | 2-year standard |
Ready to Use This Equipment on Your Project?
Expert recommendations, pricing, and professional installation for your space and application.
