Planarvideo-walls

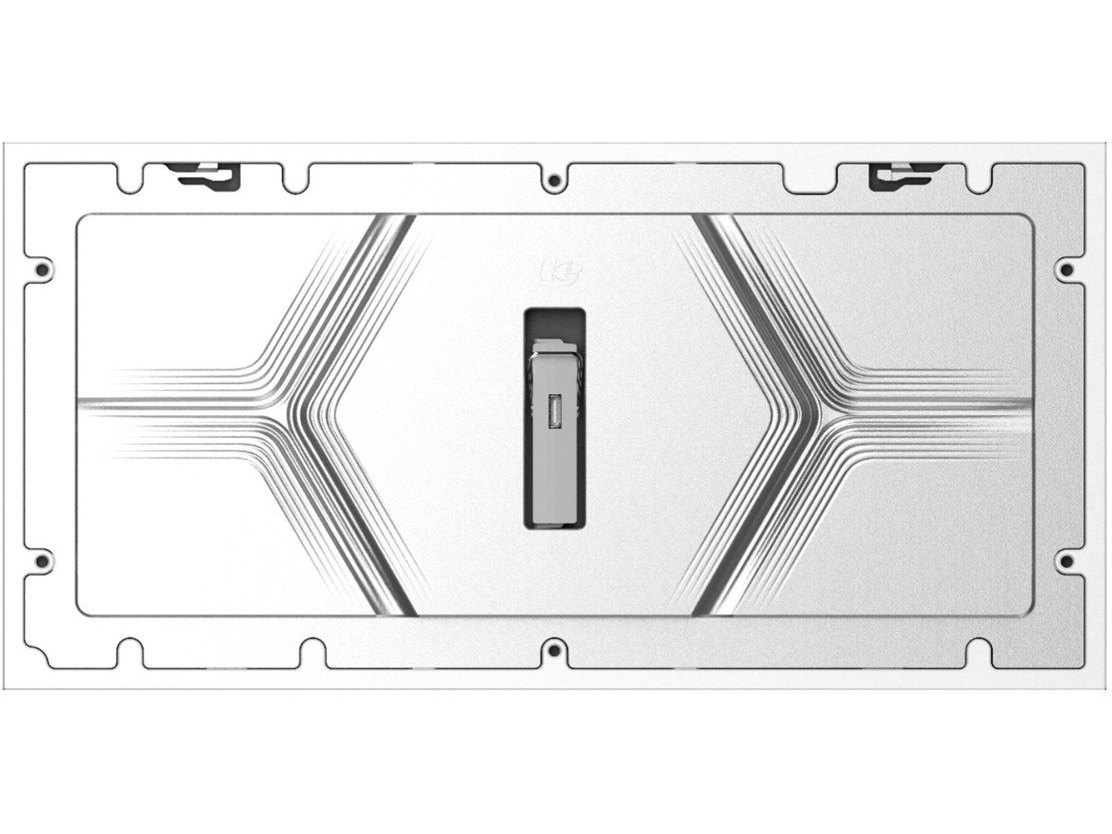

Planar Tile Series
Equipment Sales & Professional Installation
- Flexible and rigid LED modules
- Flat, concave, convex and curved designs
- 1.2 to 2.5mm pixel pitches
- Three module formats for creative designs
- Type-C connectivity, simplified install
- Compact M18 control unit
- 2-year warranty
Specifications
Display
| Type | Flexible and rigid LED modules |
|---|---|
| Pixel Pitches | 1.2, 1.5, 1.8, 2.0 and 2.5mm |

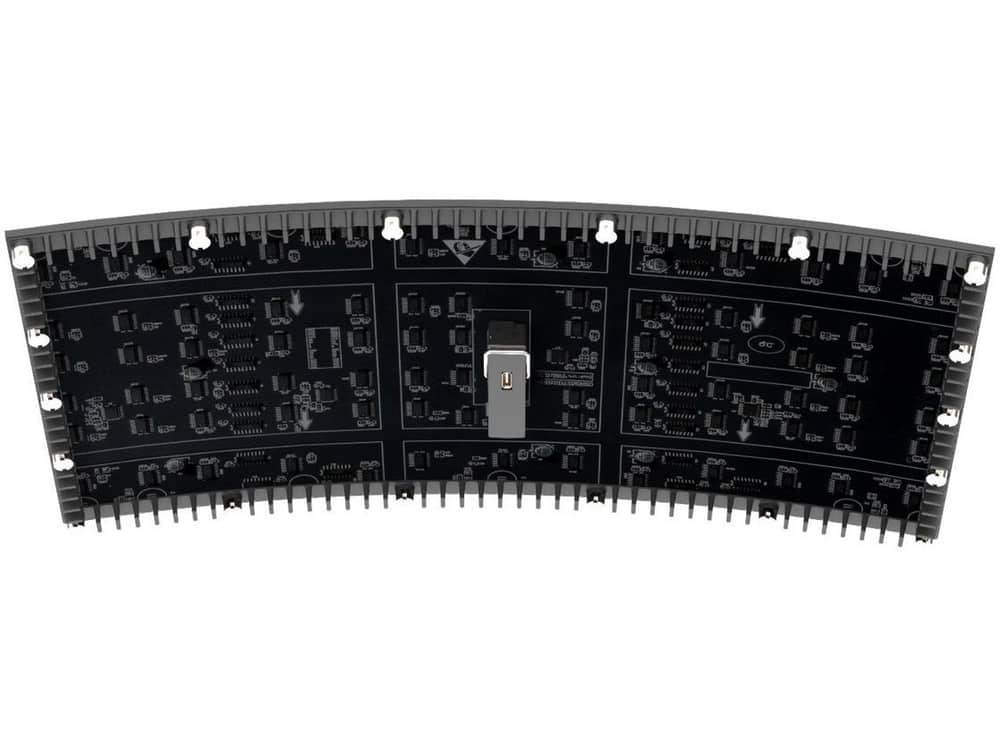

| Module Formats | Tile, Tile W (widescreen) and Tile Flex (curved) |
| Brightness | 500 nits maximum |
| Contrast Ratio | 8,000:1 |
| Module Resolution | 256 x 128 (Tile Flex 1.2) |
General
| Module Size | 320 x 160mm (Tile Flex 1.2) |
|---|---|
| Curve Diameter, Min | 1.0m (39.37in) |
| Viewing Angle | ≥160° horizontal, ≥140° vertical |
| Connectivity | Type-C power and data between module and control unit |
| Control Unit | M18 control unit, drives up to 8 modules |
| Warranty | 2-year standard |
Ready to Use This Equipment on Your Project?
Expert recommendations, pricing, and professional installation for your space and application.
