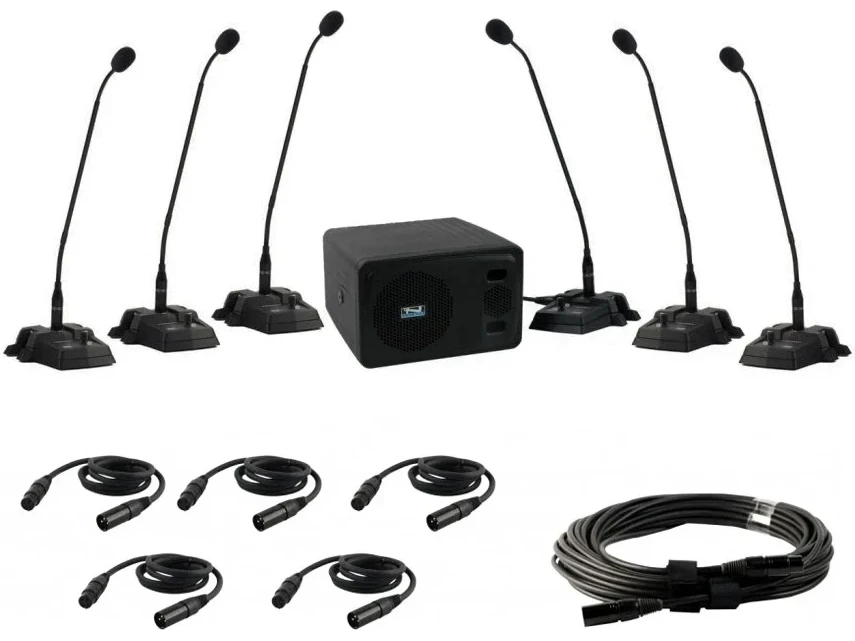

Anchor Audio Anchor Audio CM-6 CouncilMAN Conference Microphone System 6 User Package
Equipment Sales & Professional Installation
MPN: ANCHOR-CM-6
- The AN-100CM+ powers up to eleven microphones
- Reaches crowds of 150+
- Conference microphones daisy chain with standard XLR cables
- Cardioid microphones have excellent "pick-up"
- Each microphone has adjustable volume control
- 16 channel UHF wireless mic option for audience Q&A
- Chairman microphone can mute all delegate microphones
- Immunity from mobile telephone interference
- 1/4" & XLR balanced line output for recording, connection to house audio system or Assistive Listening System
- 3.5 mm Line In for music player device
Specifications
AN-100CM+ Console Speaker
| Rated Power Output | 30 watts |
|---|---|
| Max SPL @ Rated Power | 103 dB @ 1 meter |
| Frequency Response | 65 Hz – 18 kHz ± 3 dB |
| Speaker Type | 4.5" woofer, 10 mm dome tweeter Magnetically shielded |
| AC Power Requirements | 100 – 240 VAC, 50/60 Hz |
| Fuse Rating Export Model | T 1.0A / 250V (internally mounted) T 0.5A / 250V (internally mounted) |
| Line In | 3.5 mm |
| Line Out | Lo-Z, buffered, XLR and 1/4” Balanced |
| Line Output Level | -20 dBV (100 mVrms) |
| Enclosure Material | ABS Plastic |
| Dimensions (H x W x D) | 5.25" (13 cm) x 8.4"' (21 cm) x 9" (23 cm) |
| Weight | 8.5 lbs (3.8 kg) |
CHM-100/ DEL-100 Microphone Base
| Power Requirement | +22 VDC @ 60 mA from pin 2 of daisy chain |
|---|---|
| Output Impedence | > 10 k Ohm |
| Phantom Power | 18V |
| Daisy Chain In/Out | Male and Female 3-pin XLR |
| CHM-100 Controls | Push to Talk, Volume and Mute Others |
| DEL-100 Controls | Push to Talk and Volume |
| Dimensions (H x W x D) | 1.75" (4.45 cm) x 5.8" (14.73 cm) x 6.5" (16.51 cm) |
| Weight | 0.90 lbs (0.41 kg) |
LM-618 Gooseneck Microphone
| Pickup Pattern | Cardioid |
|---|---|
| Type | Electret Condenser |
| Phantom Power | 9 - 52 Volts DC |
| Impedence | 600 Ohm (balanced) |
| Response | 50 Hz - 18 kHz ±3dB |
| Sensitivity | -56 dB @ 1 kHz open circuit (0 dB = 1 V/ubar) |
| Dimensions (L x Dia) | 24" (60.96 cm) x 0.5" (1.27 cm) |
