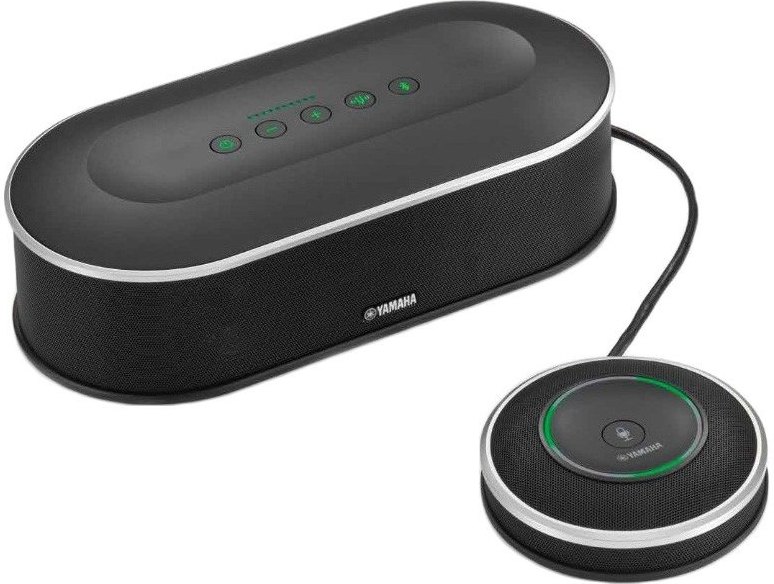

Yamaha Unified Communications Yamaha YVC-1000 Communications Microphone and Speaker System

Equipment Sales & Professional Installation

MPN: YAMAHA-UC-10YVC1000NA

Multiple connection options via Bluetooth® and USB
Excellent Scalability: Daisy chains up to 5 microphones and supports 2 external speakers
High Quality Audio Technology with Human Voice Activity Detection (HVAD) to minimize background noise during calls
One-Button Autotuning: Analyzes room environment and automatically tunes acoustic settings to the optimal level
Maximum Volume: 95dB at 0.5 m (1.6 ft)
Frequency Response: 100 to 20,000 Hz
Signal Processing on board

Specifications

Power Consumption (Max)	20 W (one connected microphone) 35 W (five connected microphones)
Radio Interference Standard	FCC (Part 15B) Class A, ICES-003
Operating Environment	Temperature: 0 to 40°C (32 to 104°F) Humidity: 20 to 85% (no condensation)
Power Source	120 V (60 Hz)
Supported OS	OS: 32-bit or 64-bit Windows 10 32-bit or 64-bit Windows 8.1 32-bit or 64-bit Windows 8 32-bit or 64-bit Windows 7 Mac OS X 10.11, Mac OS X 10.10 Mac OS X 10.9, Mac OS X 10.8 USB: USB 2.0 or later
Bluetooth	Bluetooth specification version: 2.1 + EDR Supported profile: HFP (1.6), A2DP Supported Codec: SBC, mSBC Wireless output: Class 2 Maximum communication distance: 10 m (32.8 ft)
NFC	Compatible devices: NFC-compatible Android devices, versions 4.1, 4.2, 4.3 and 4.4
Voice Guidance	English, Japanese, Chinese, Korean, French, Spanish, German

Microphone Unit	Unidirectional x 3
Speaker Unit	Full-range x 1
Maximum Volume	95 dB (0.5 m (1.6 ft))
Frequency Bandwidth	For sound pickup: 100 to 20,000 Hz For playback: 100 to 20,000 Hz
Signal Processing	Adaptive echo canceller Noise reduction Automatic tracking Automatic gain control Automatic room EQ Dereverberation Automatic audio tuning
Accessories	Power cable (3 m (9.8 ft)) USB cable (5 m (16.4 ft)) microphone cable (5 m (16.4 ft)) Quick Start Guide
