Sonancespeakers

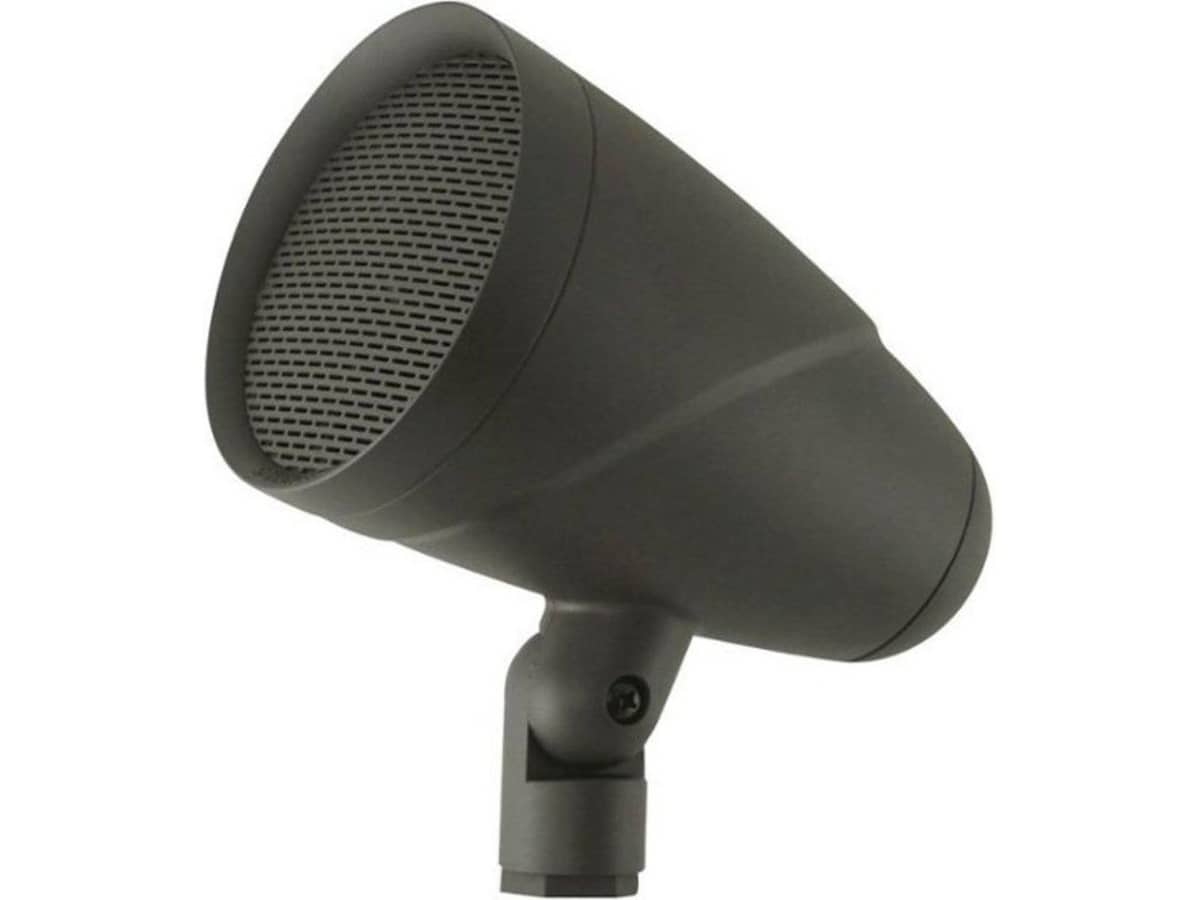

Sonance LS6T
Equipment Sales & Professional Installation
MPN: LS6T
- Sonance Laminated Core Transformer with adjustable tap (40W or 60W transformer for the speakers, 300W transformer for the subwoofers)
- Laminar Flow Port subwoofer design
- Wide dispersion speaker grille
- IP66 rated for all weather durability
- Pivoting mounting knuckle for precise speaker angle and positioning
- 1/2" NPS satellite speaker mounting thread
Specifications
Specifications
| SKU | 93370 (Brown) |
|---|---|
| HF Driver | 1" (25mm) Polyurethane dome |
| LF Driver | 6.5" (165mm) Injection molded polypropylene cone with a Santoprene rubber surround |
| Frequency Response (+/- 3db) | 55Hz - 20kHz |
| Power Handling (RMS) | 5W min, 125W max |
| Sensitivity | 90dB (2.83V/1m) |
| Enclosure | High Heat ABS, non-corrosive sealed enclosure |
| Dispersion | +/- 60 degrees or 120 degrees conical |
| Transformer Taps | 70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W |
| Dimensions (Diameter x D) | 7.34" x 11.7" (186.44mm x 297.18mm) |
| Dimensions (WxHxD) | 7.43" x 7.43" x 11.7" (188.72mm x 188.72mm x 297.18mm) |
| Dimensions No Feet (WxHxD) | 7.43" x 7.43" x 11.7" (188.72mm x 188.72mm x 297.18mm) |
| Certifications | Mil Spec 810, IP66 |
| Environmental | Conforms to MIL-STD-810 for humidity |
