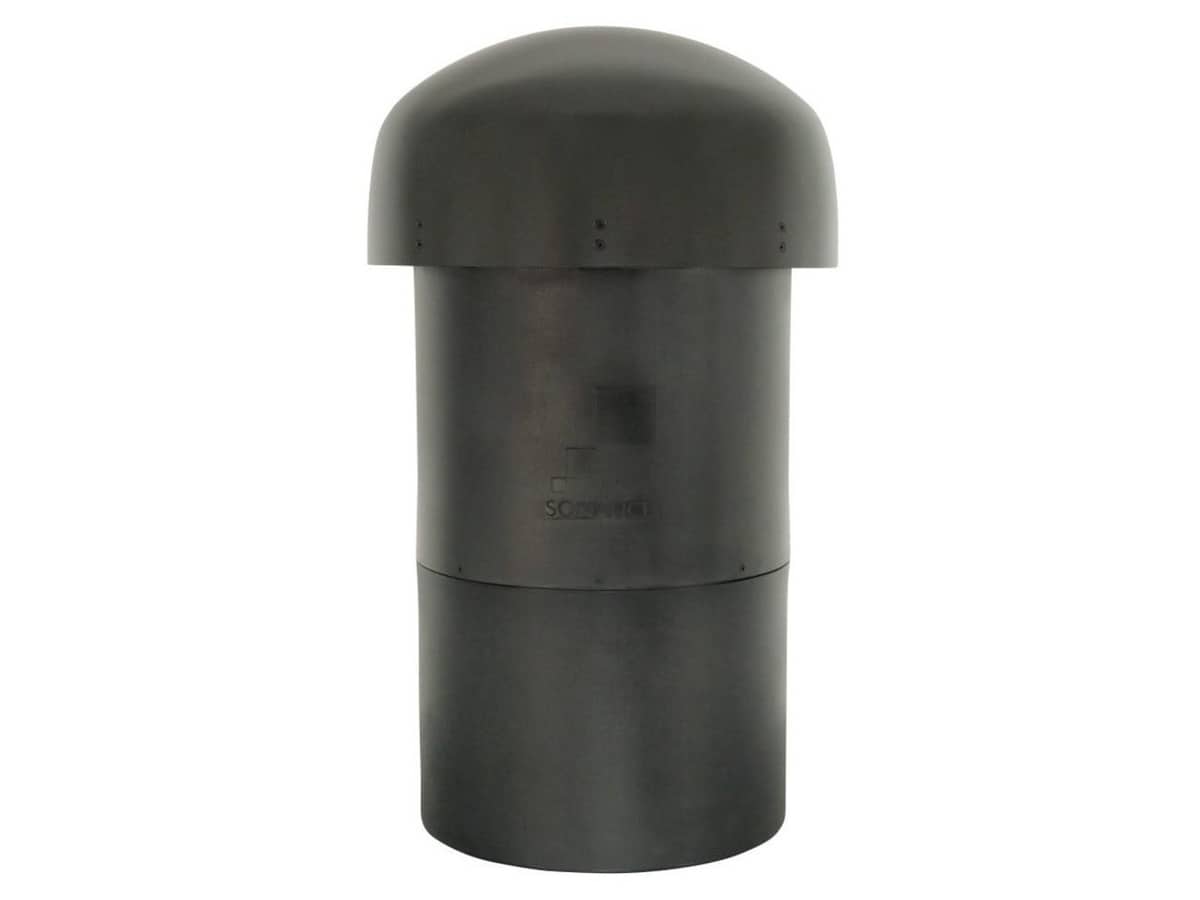

Sonance LS12T
Equipment Sales & Professional Installation
MPN: LS12T
- Sonance Laminated Core Transformer with adjustable tap (40W or 60W transformer for the speakers, 300W transformer for the subwoofers)
- Laminar Flow Port subwoofer design
- Wide dispersion speaker grille
- IP66 rated for all weather durability
- Pivoting mounting knuckle for precise speaker angle and positioning
- 1/2" NPS satellite speaker mounting thread
Specifications
Specifications
| SKU | 93371 (Brown) |
|---|---|
| LF Driver | 12" (305mm) polypropylene cone with a Santoprene rubber surround |
| Frequency Response (+/- 3db) | 22Hz - 100Hz |
| Power Handling (RMS) | 50W min, 375W max |
| Sensitivity | 91dB (2.83V/1m) |
| Enclosure | Low density polyethylene (LDPE) |
| Transformer Taps | 70 V / 100 V: 300W, 150W, 75W 70 V: 38W |
| Dimensions (Diameter x D) | 16.97" x 16.97" (431.04mm x 431.04mm) |
| Dimensions (WxHxD) | 16.97" x 29.13" x 16.97" (431.04mm x 739.9mm x 431.04mm) |
| Dimensions No Feet (WxHxD) | 16.97" x 29.13" x 16.97" (431.04mm x 739.9mm x 431.04mm) |
| Weight | 55.95 lbs. (25.38kg) |
| Certifications | Mil Spec 810, IP66 |
| Environmental | Conforms to MIL-STD-810 for humidity |
Documents
